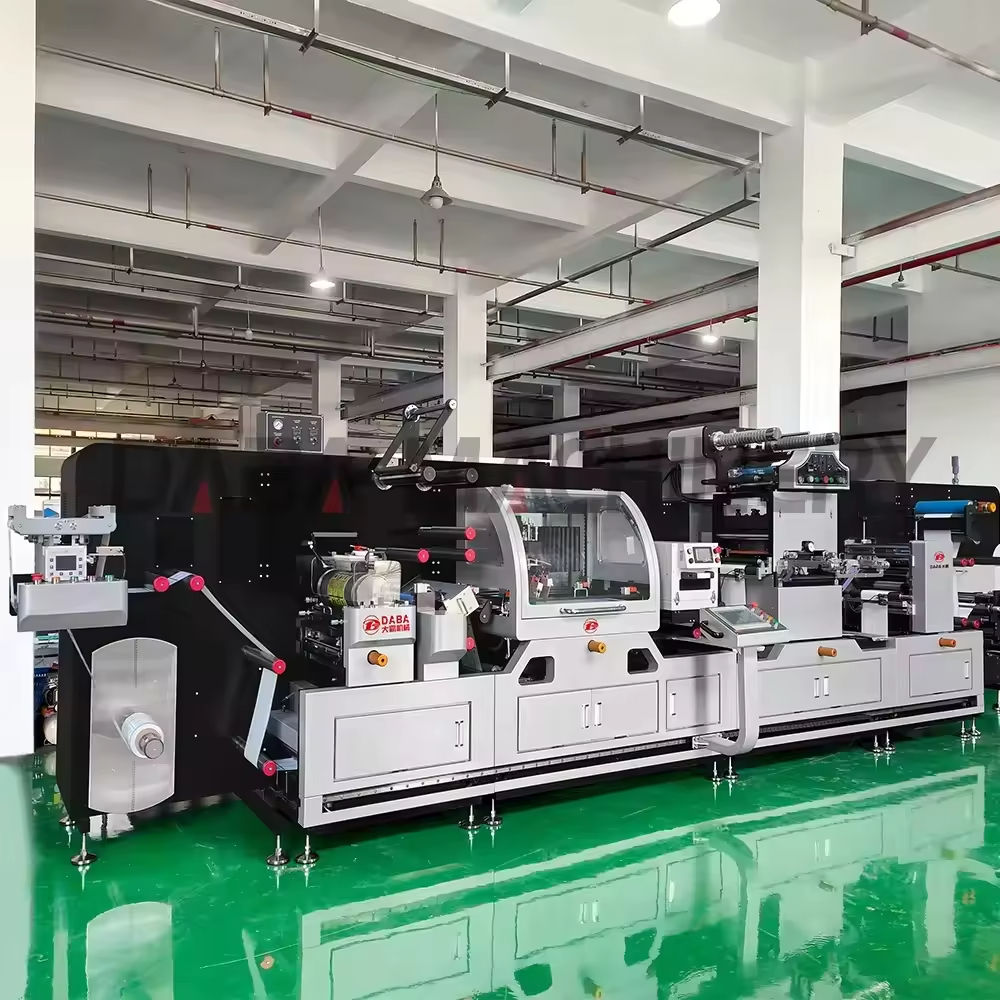

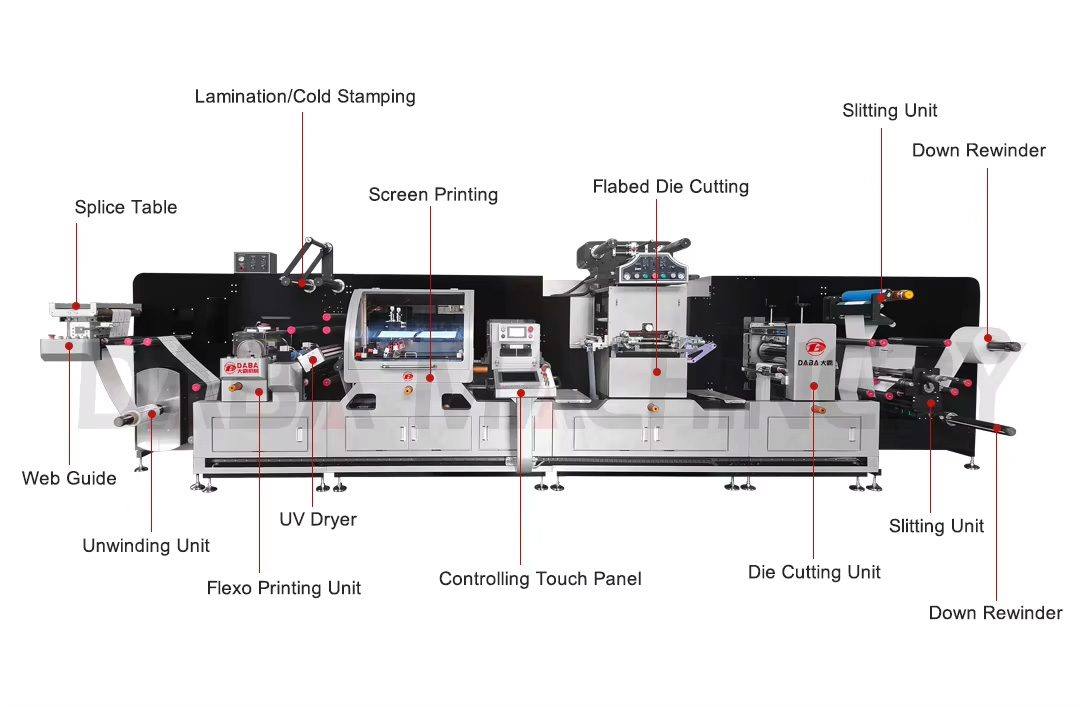

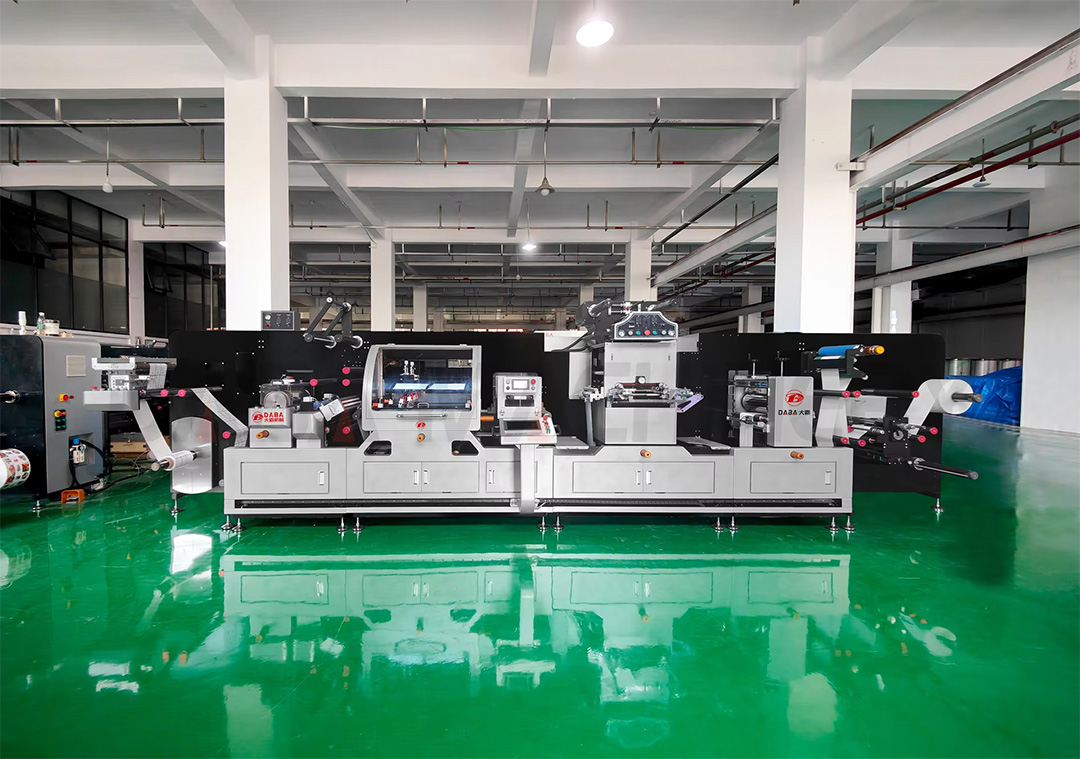

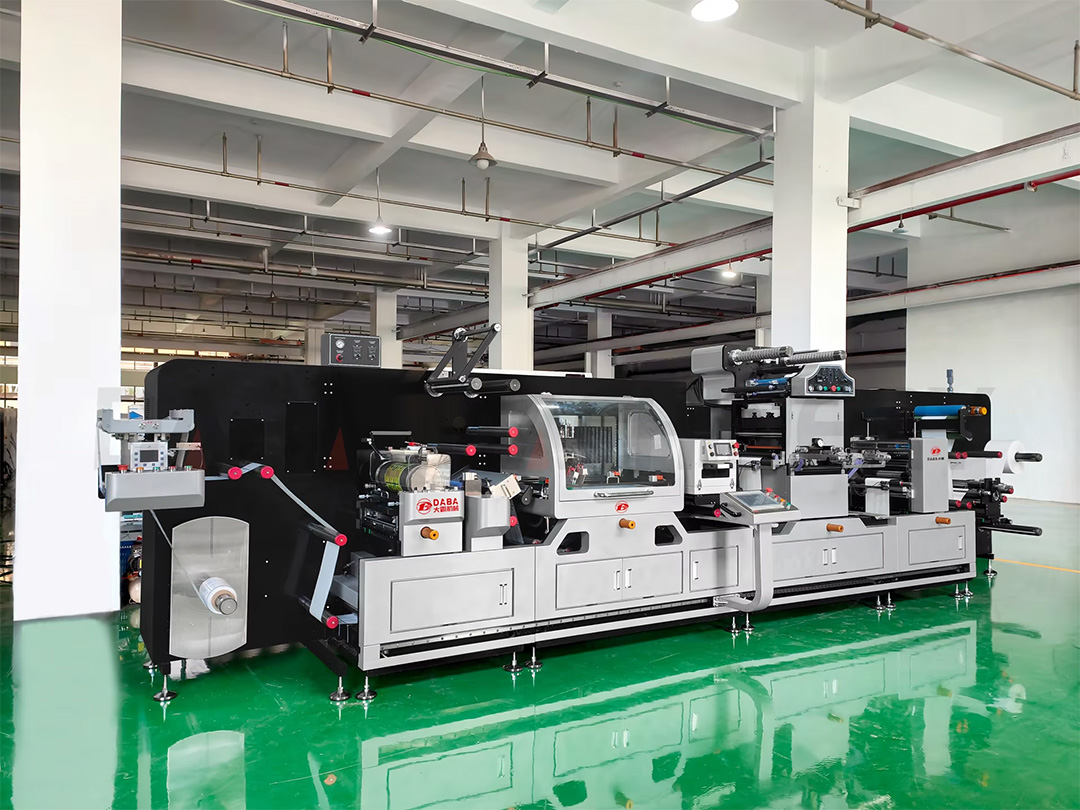

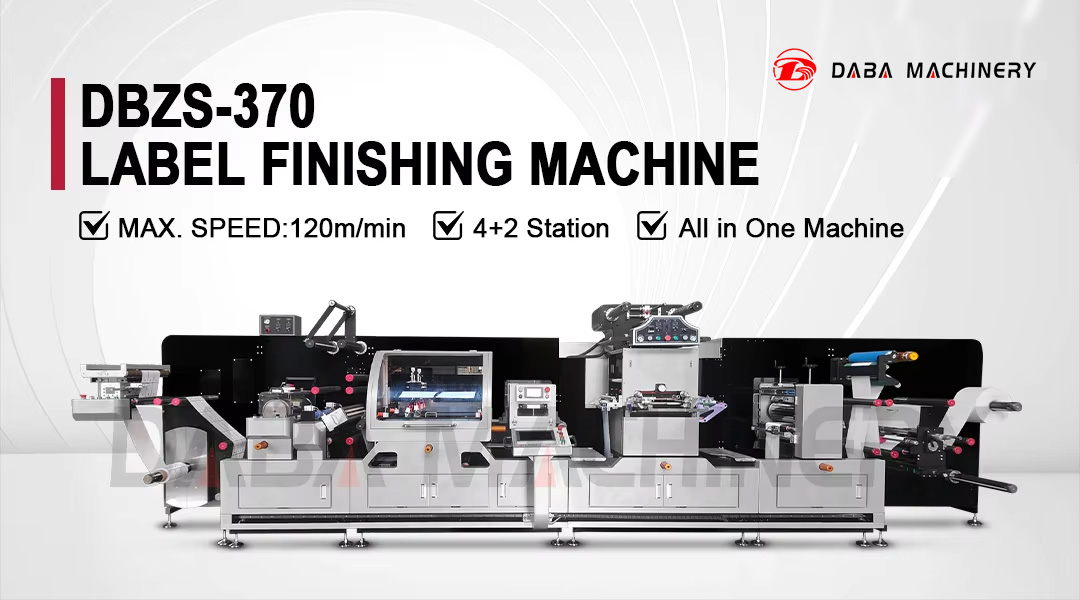

The whole machine using total 13pcs servo motor to gurantee stable running, it's intermittent model with flexo printing unit, die cutting ahd slitting, ect.

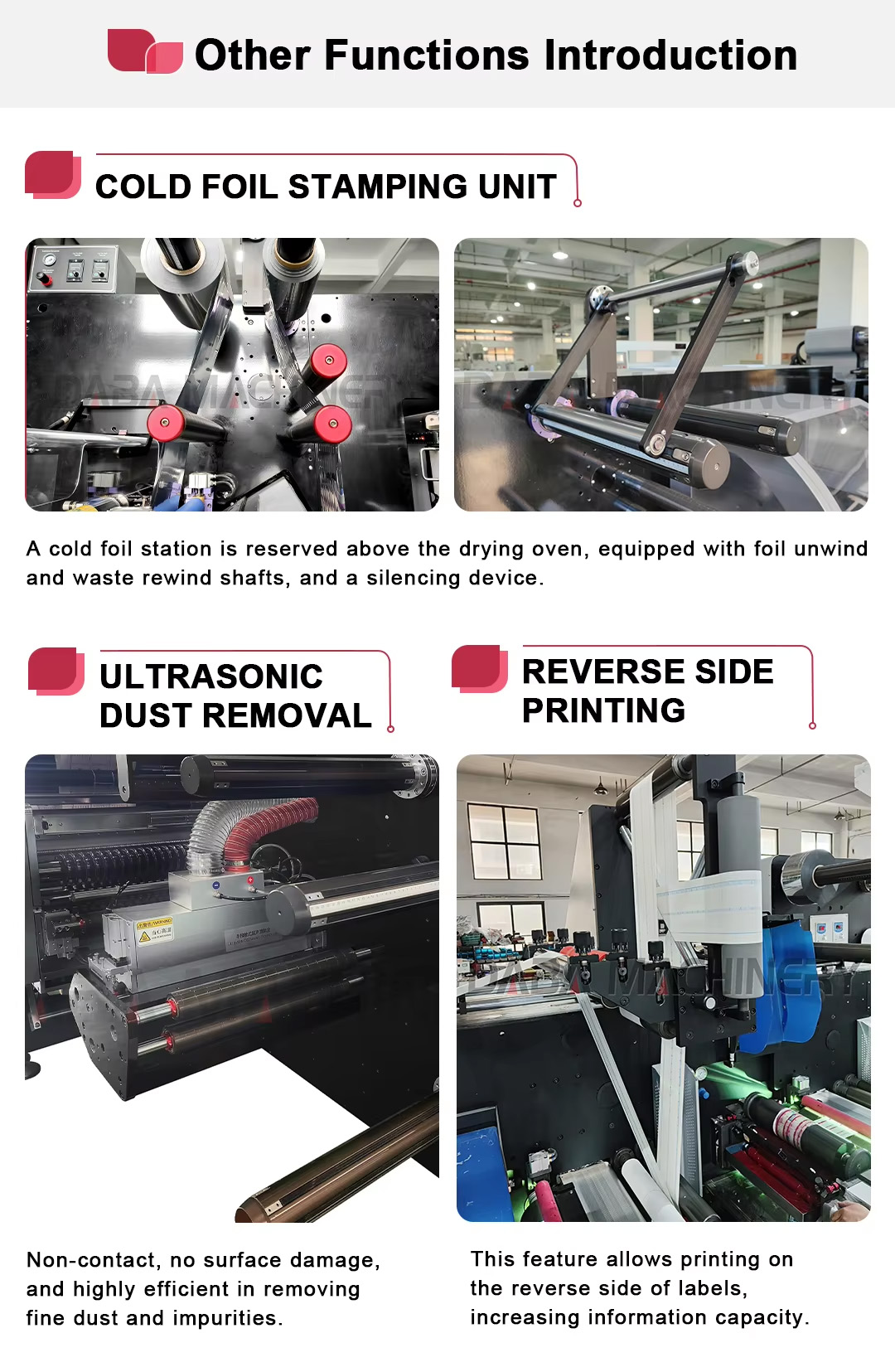

In flexo printing, can do cold stamping, vanish, laminating, printing, also accept multi colors printing

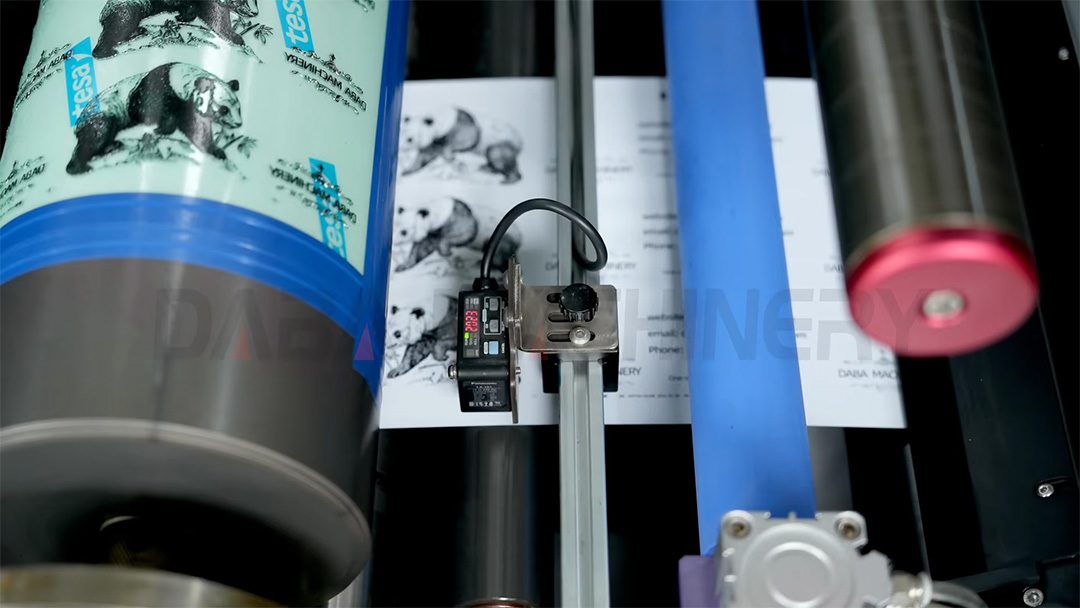

requirement, using color tracking sensor for re-printing.
In rotary die cutting, can do kiss cutting, punching, IML cutting, back cutting ect., with track sensor for
semi rotary running, one magnetic cylinder can finish varies different die cutting job.
Feature：
1. The modular model can be freely matched with different stations to complete different work processes according to the demandsof customers;
2. The design of connected all-in-one machine combines different processing machines on one machine, saving the costof different machines and labor costs;
3. Servo drive, stable operation, high production precision, guaranteed quality;
4.Intermittent operation mode, saving spare parts cost for different product production;
5. Using the combination of movable touchscreen control and simple emergency operation button table, it is more convenient and simple to run the machine.
Max. Web Width | 370mm (14.56") |

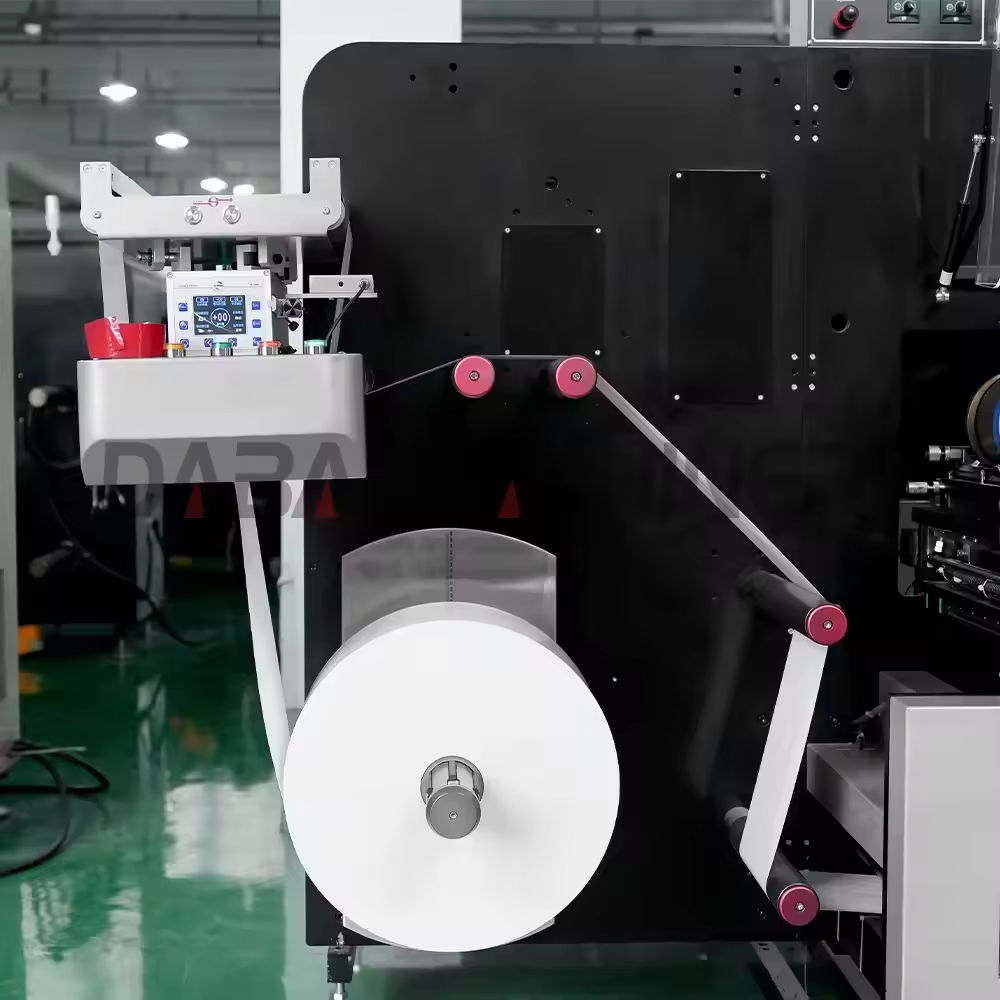

Max. Unwind Diameter | 800mm (31.5") |
Application Material Thickness | 30um ~ 300um |
Max. Die Cutting Width | 350mm (13.77") |
Max. Full rotary Flexo Printing Speed | 120m/min |
Max. Flexo Printing Speed | 60m/min |
Optional Printing Cylinder | 80T-210T |
Standard Printing Cylinder | 176T |
Printing Tracking Method Color | sensor |
Max. Screen Printing Width | 370mm |
Screen Printing Repeat | 400mm |
Re-Printing Precision | ±0.15mm |
Max. Screen Printing Speed | 20m / Min |

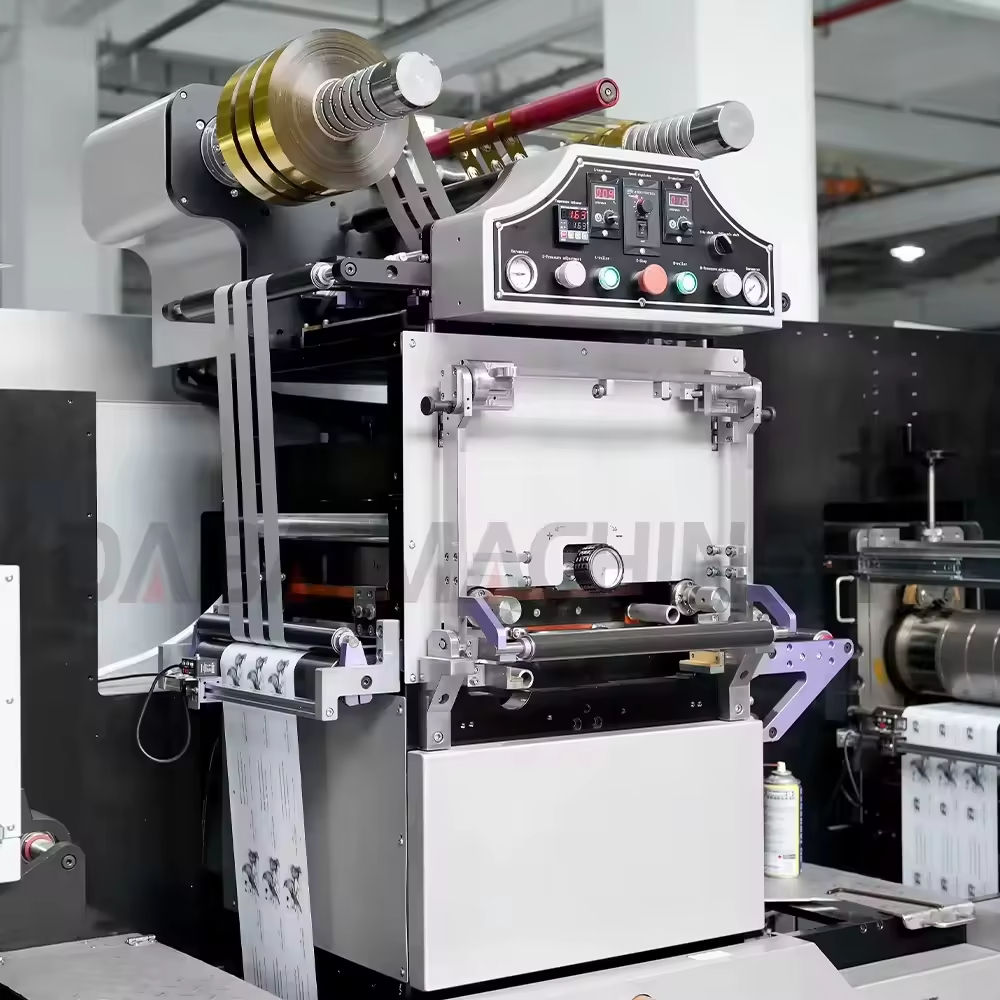

Hot Foil Precision | ±0.15mm |
Max. Hot Foil Speed | 200 times / min |
Max. Flatbed Die Cutting Speed | 400 times / min |
The Power of Hot Foil Plate | 3KW |
Max. Die Cutting Width | 370mm |
Max. Semi rotary die cutting speed | 60m/min |
Max. Full rotary die cutting speed | 120m/min |
