Brand Name : DABA
Model Number : DBGS-320
Max. Web Width ：320mm (14.56")
Max. Unwind Diameter ：800mm (31.5")
Max. Rewind Diameter ：800mm (31.5")
Max. Flexo Printing Width : 350mm (13.77”)
Max. Die Cutting Width : 350mm (13.77")
Full Rotary Max. Mechanical Speed : 120m/min

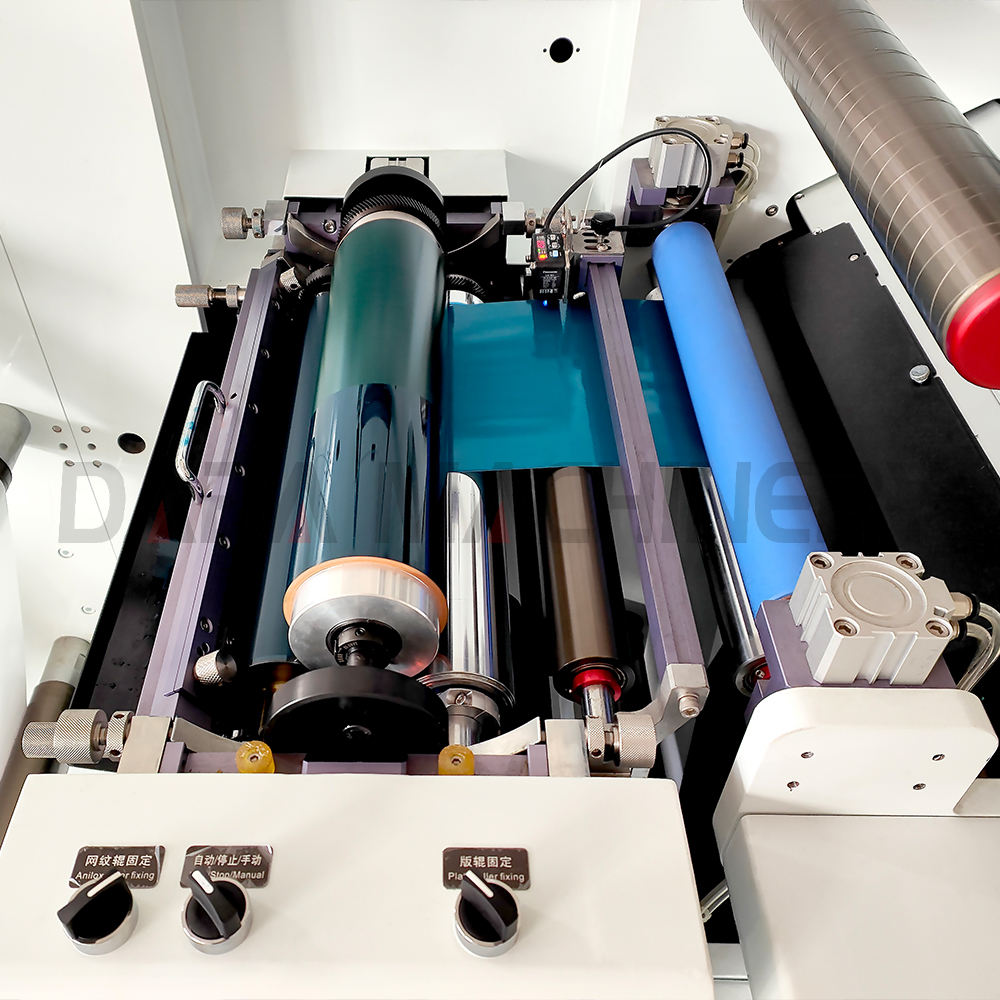

Max. Flexo Printing Speed : 60m/min
Optional Printing Cylinder : 80T-210T
Standard Printing Cylinder : 176T

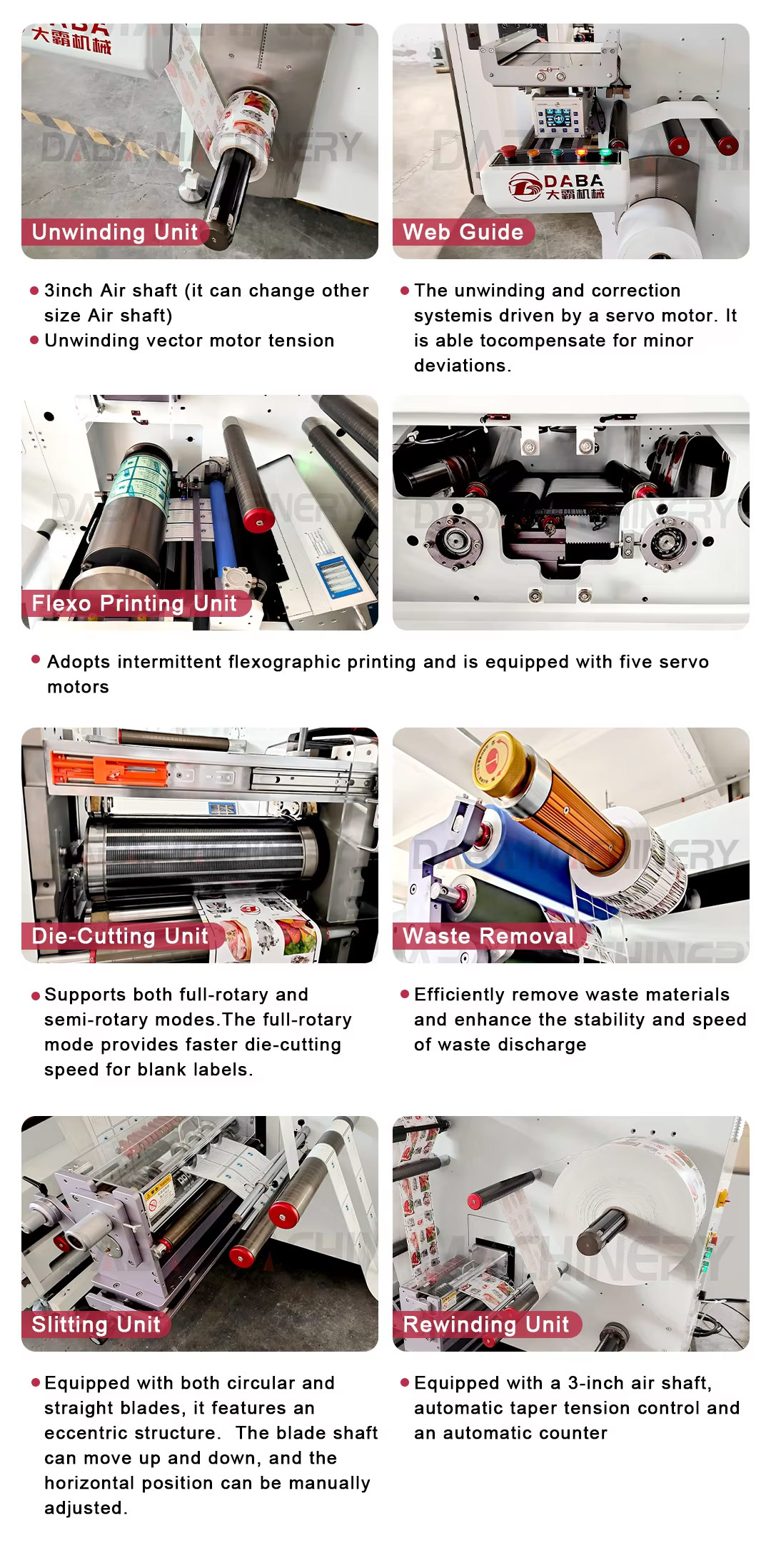

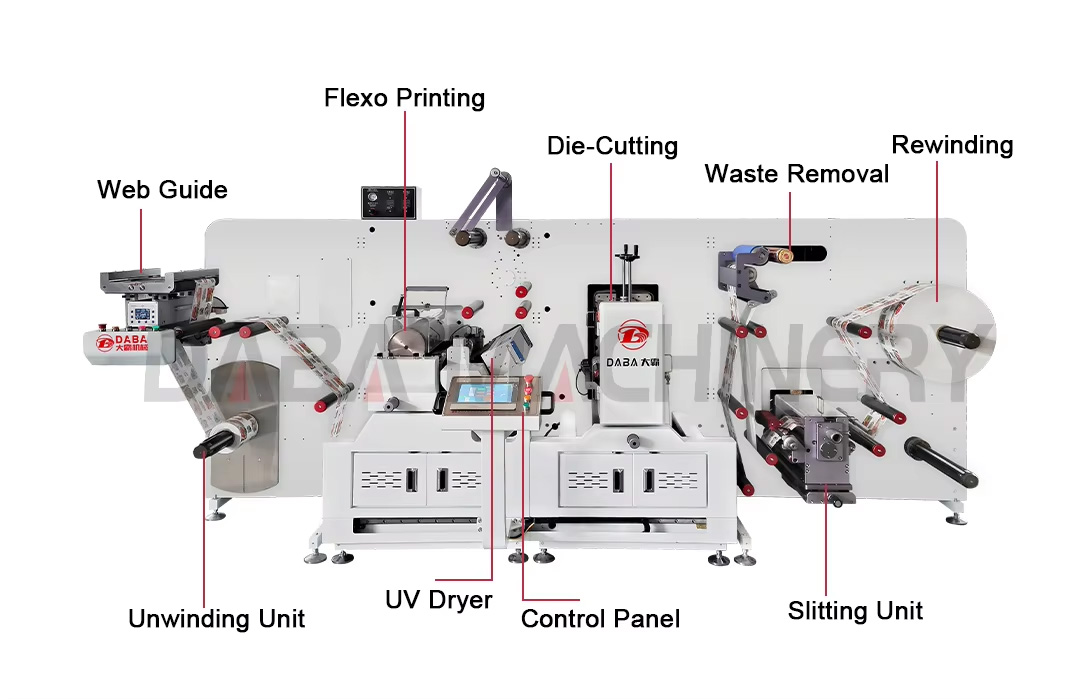

Main Features
1. The modular model can be freely matched with different stations to complete different work processes according to the demands of customers;
2. The design of connected all-in-one machine combines different processing machines on one machine, saving the cost of different machines and labor costs;
3. Servo drive, stable operation, high production precision, guaranteed quality;
4. Intermittent operation mode, saving spare parts cost for different product production;
5. Using the combination of movable touch screen control and simple emergency operation button table, it is more convenient and simple to run the machine.

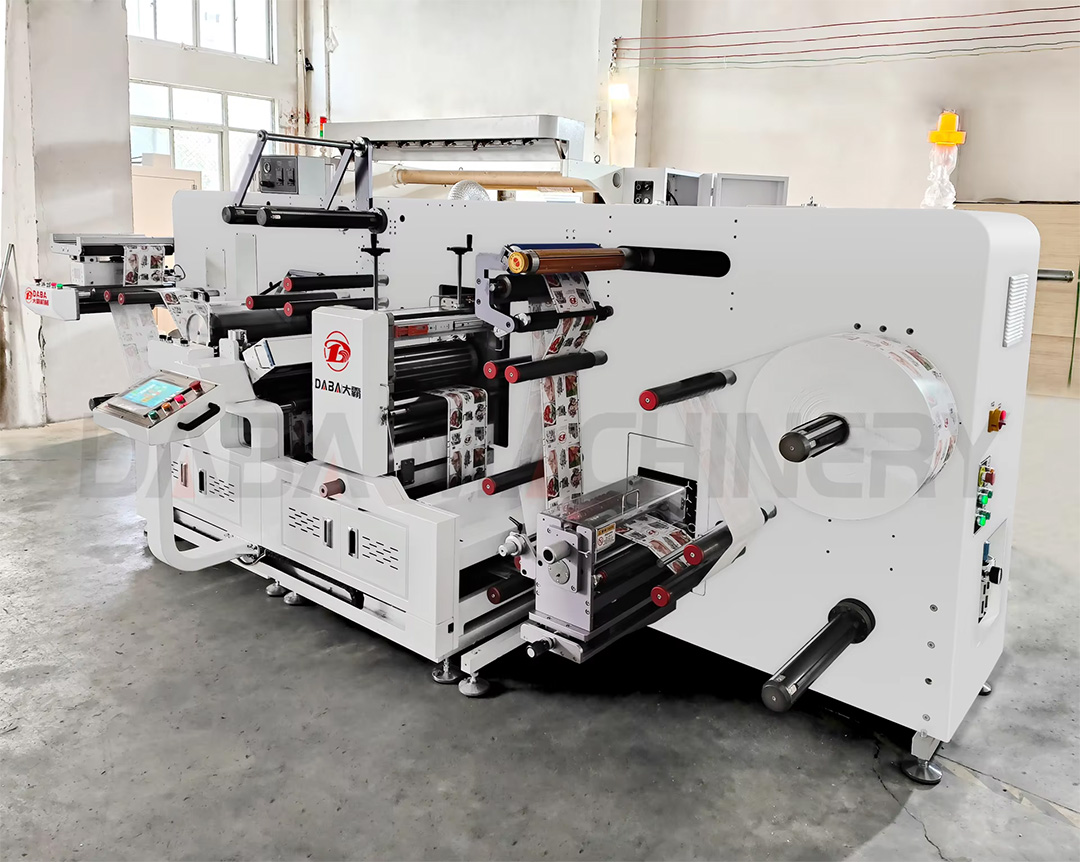

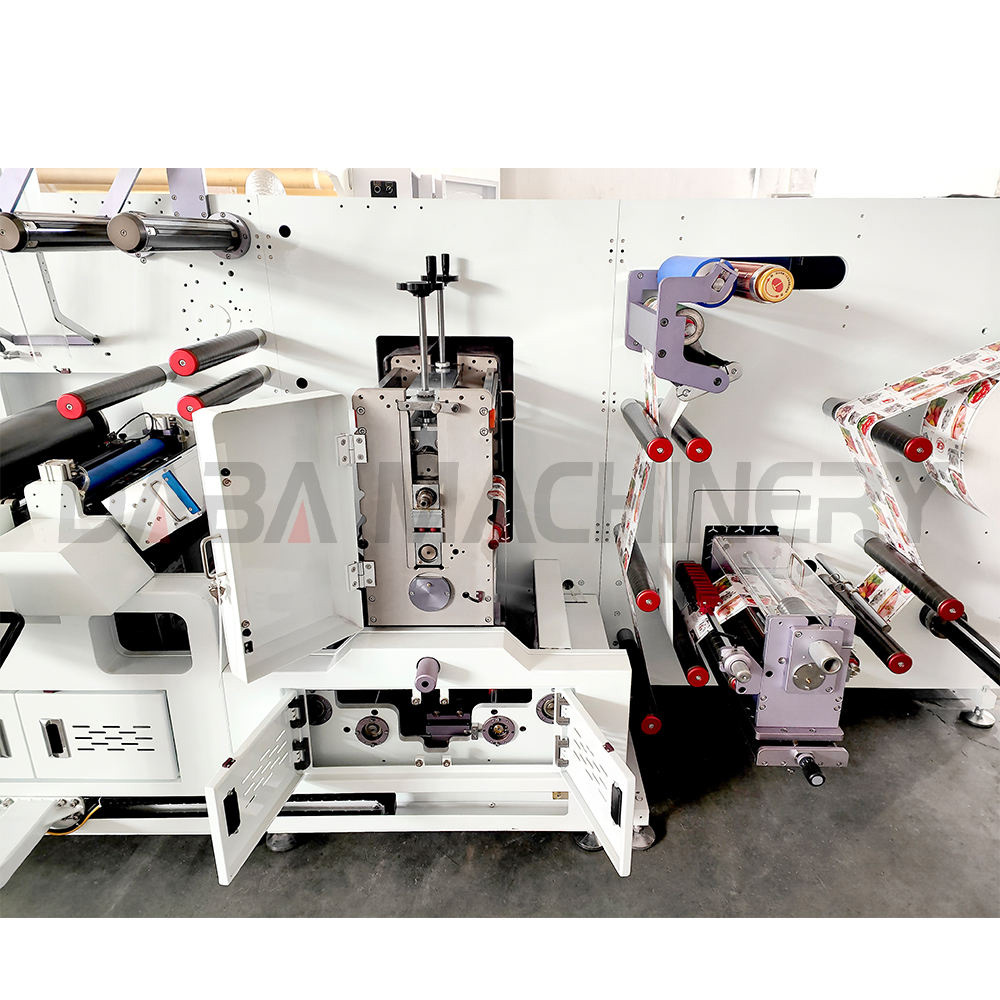

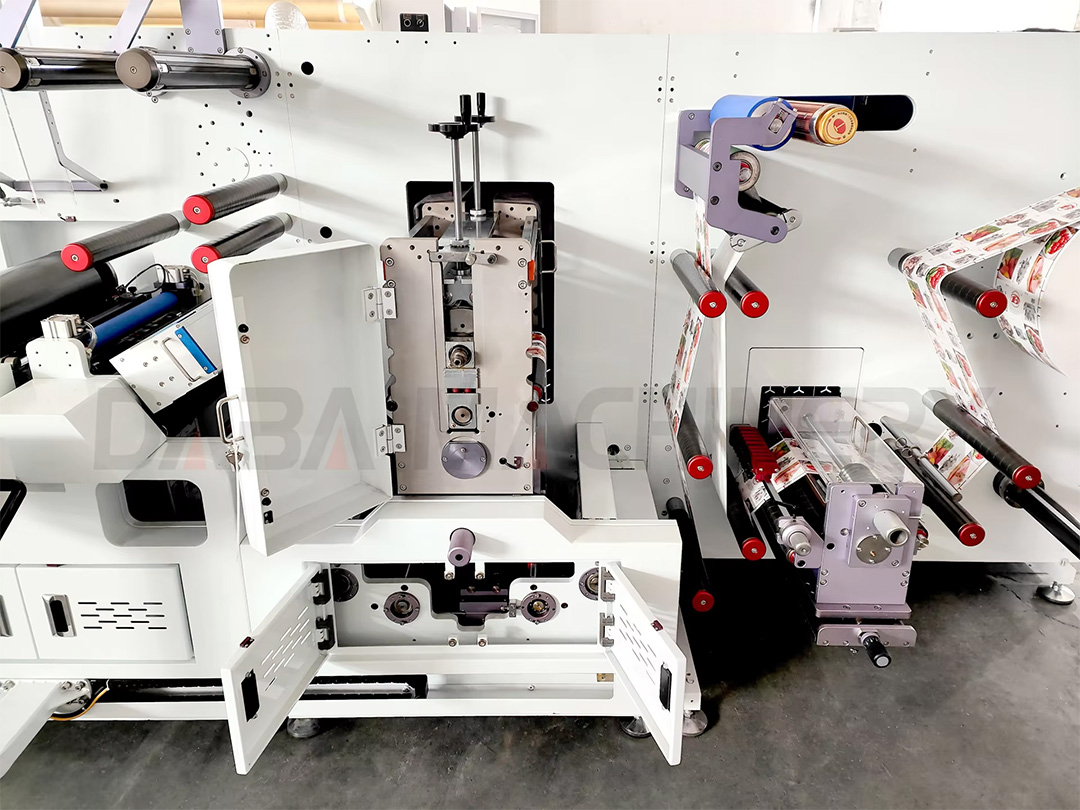

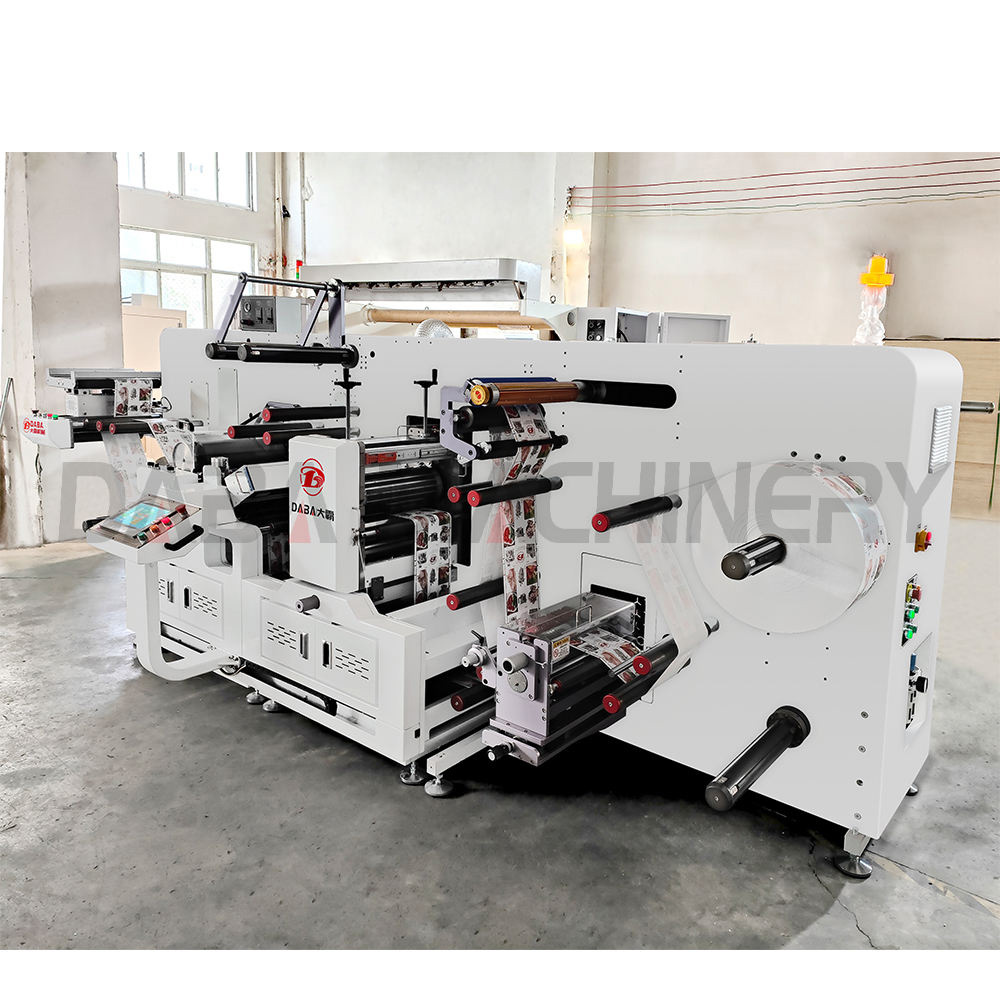

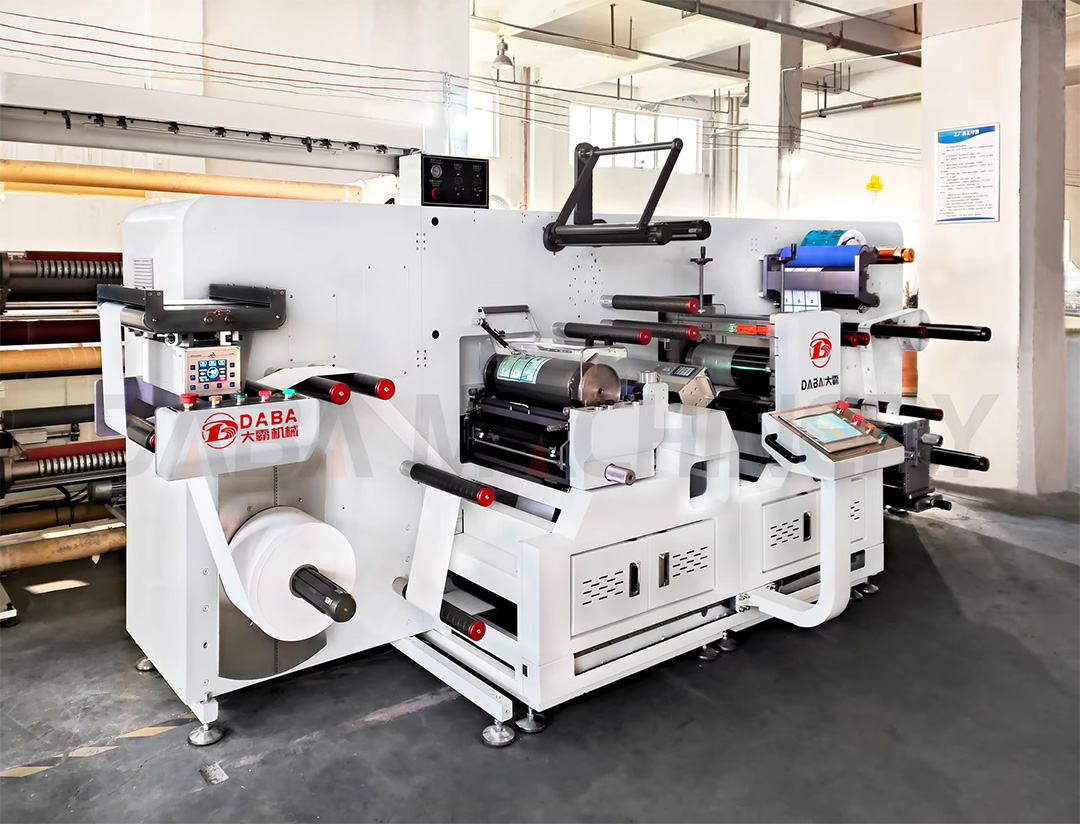

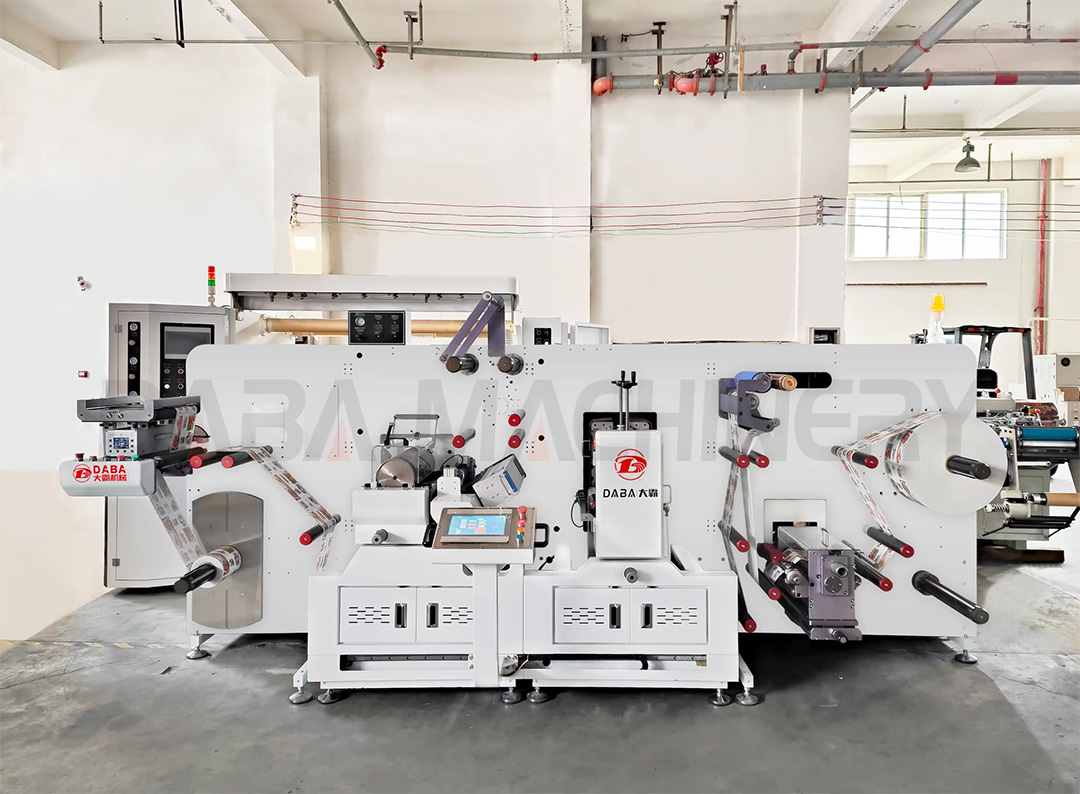

In Factory Photo
