Brand Name : DABA
Model Number : DBJC-320A
Number of Colors : 7-Color
Printing speed : 180-200m/min
Printing width : 320mm
Printing length: 380mm
Dimensions(l*w*h) ：2500mmX 1700MMX 2600MM
Printing Colors : 6-10 Unit
Printing Material : paper, film ,Aluminum
Voltage : 380V
weight : 2500

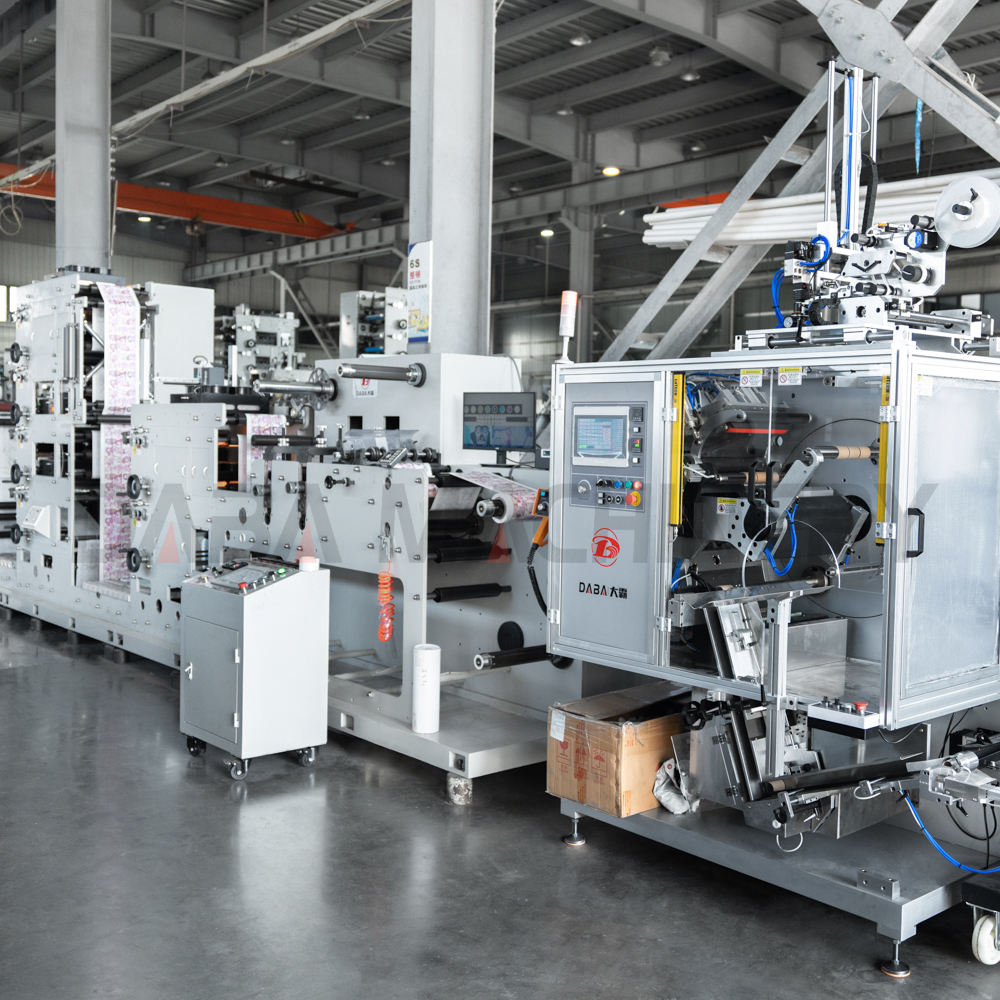

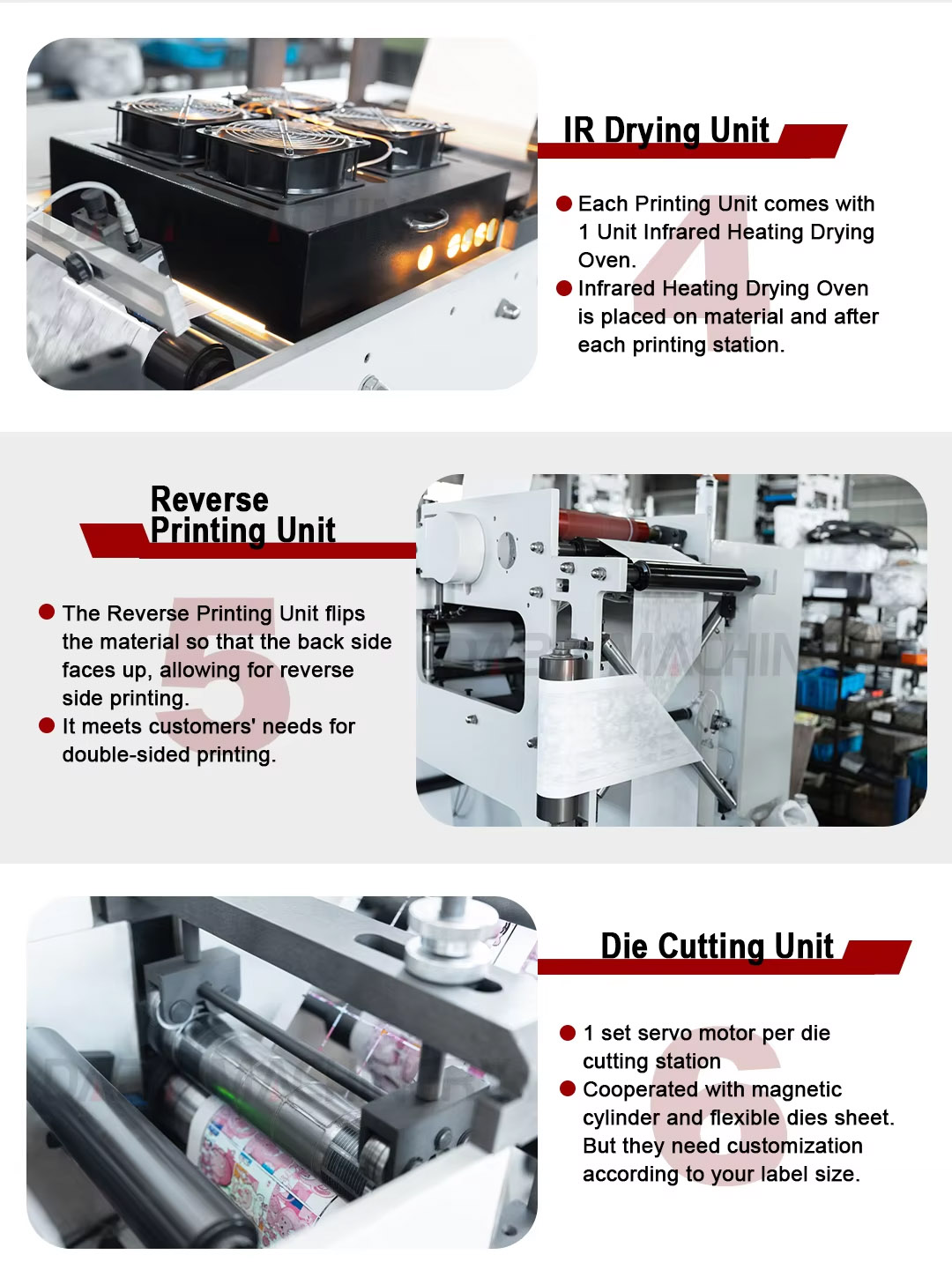

The machine can finish material-feeding, printing, varnish, drying, laminating, rewinding and die-cutting in one process is an ideal machine for printing note and top-grade adhesive label.
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
1. From the discharge to the receipt of the short distance.

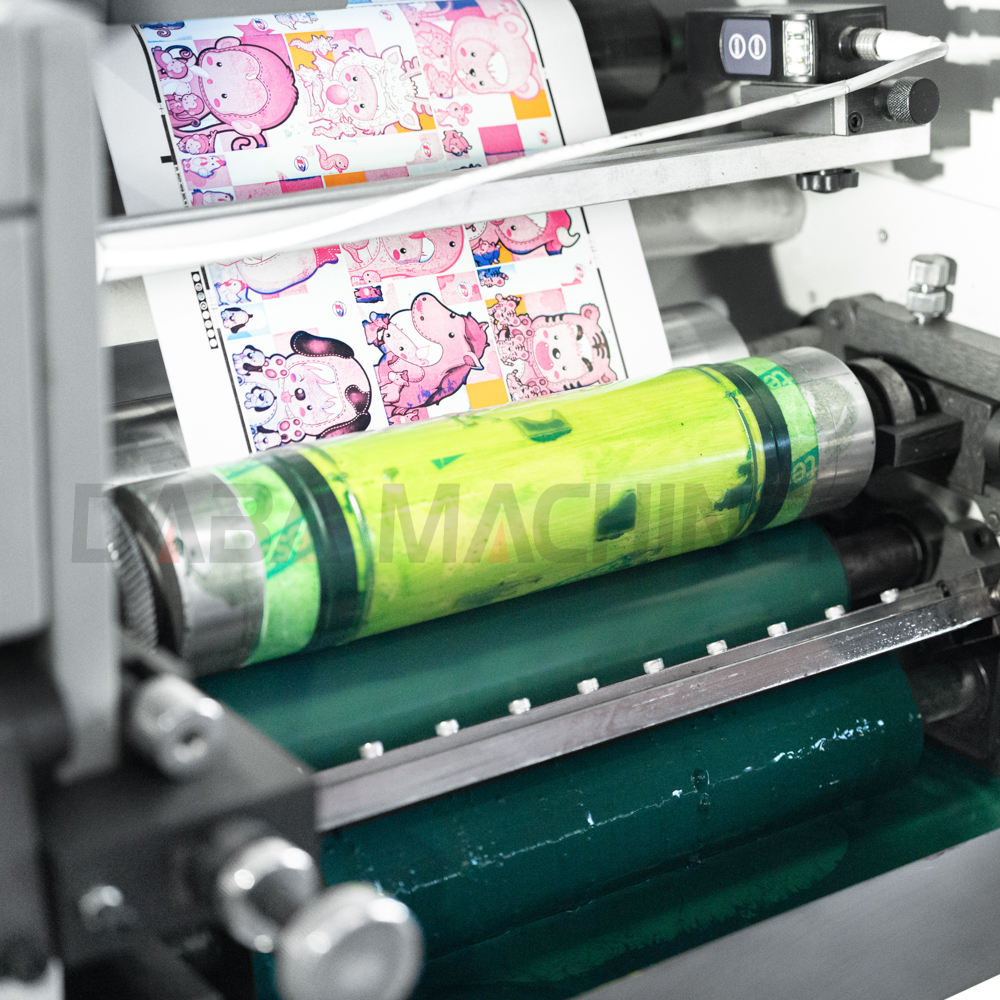

2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. The structure of printing station adopt petal type, one servo motor driven each printing color station.

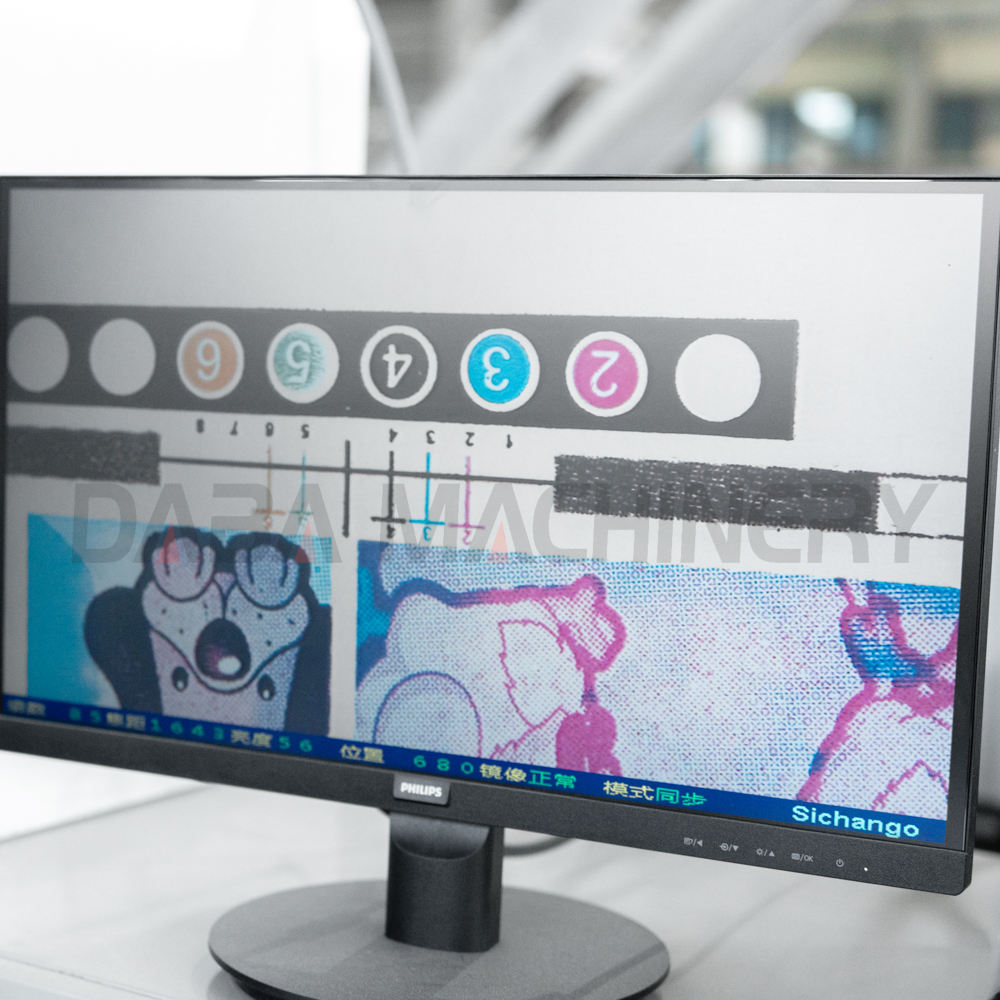

4. using servo motor control automatic registration system.

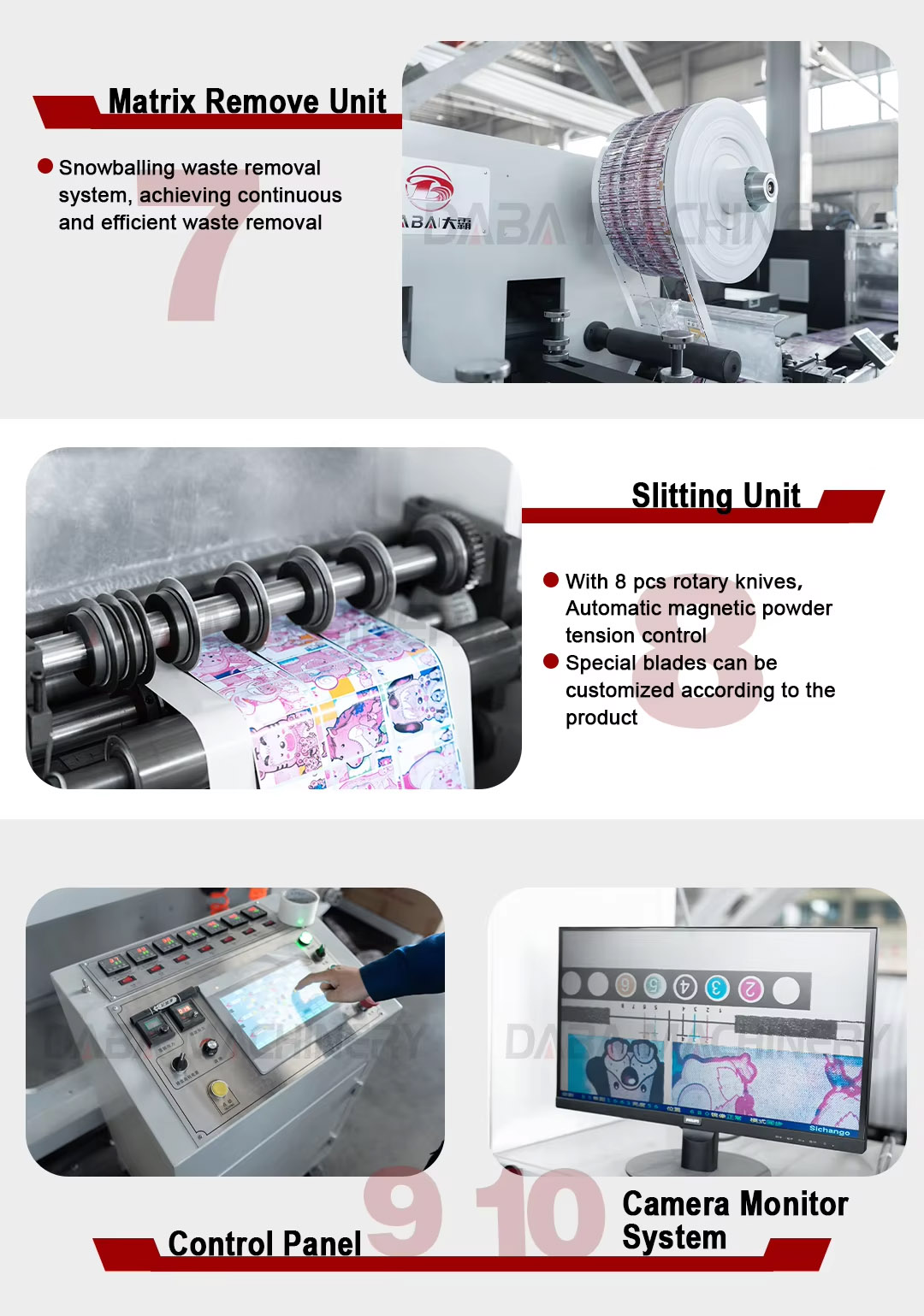

5. PLC controller operating.
6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network
cable, the speed is also different, the fastest speed of printing labels is 150 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9. Process:

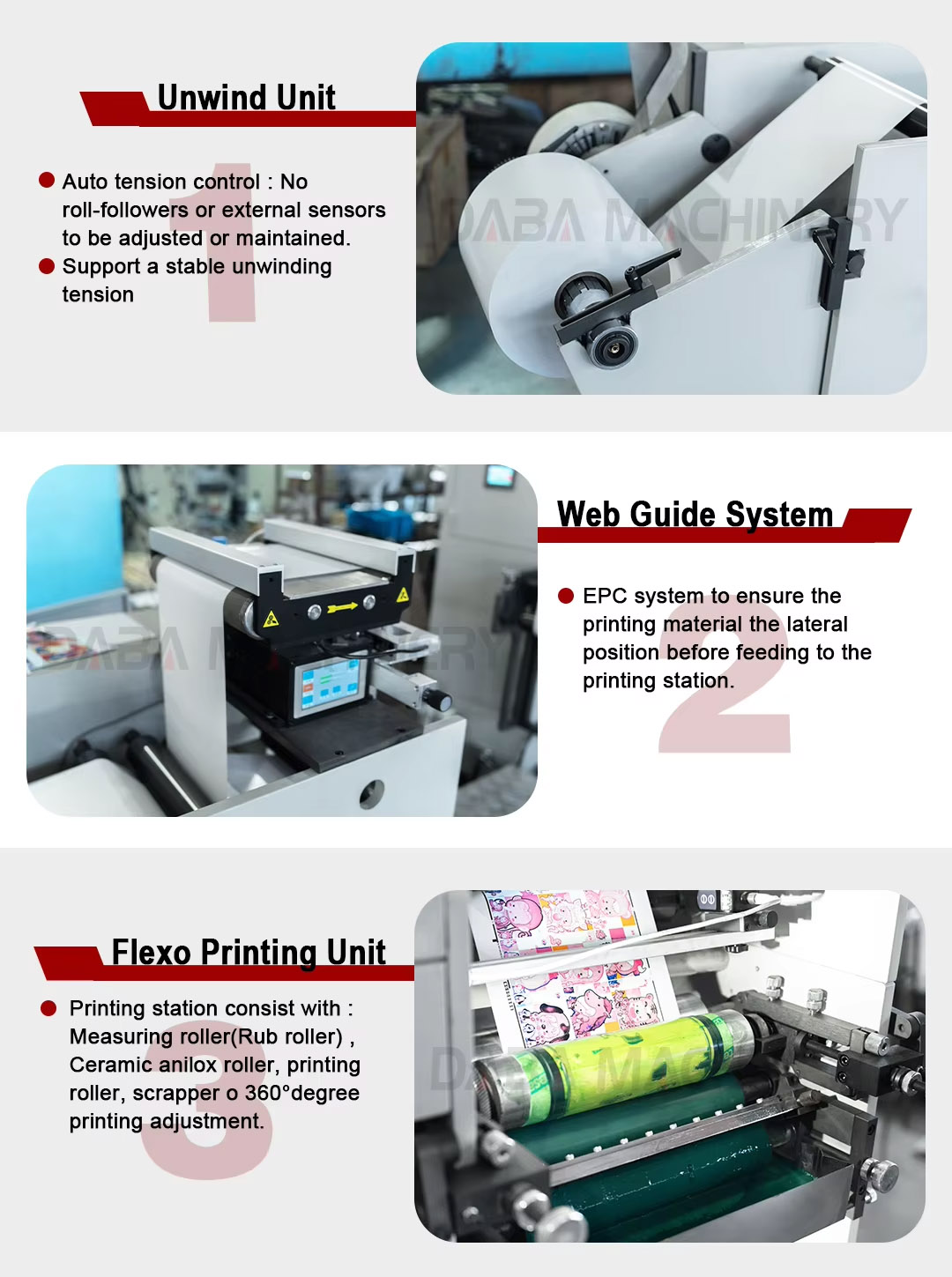

1 discharging > 2 automatic constant tension >3 scraper > 4 printing unit > 5 traction > 6 automatic constant tension > 7 center receiving
Printing Materials
Thermal Paper PE (Polyethylene) PET (Polyester) PVC Semi Glossy Paper Writing Paper
Configuration Details
