1. Main motor adopts imported frequency stepless speed regulator.

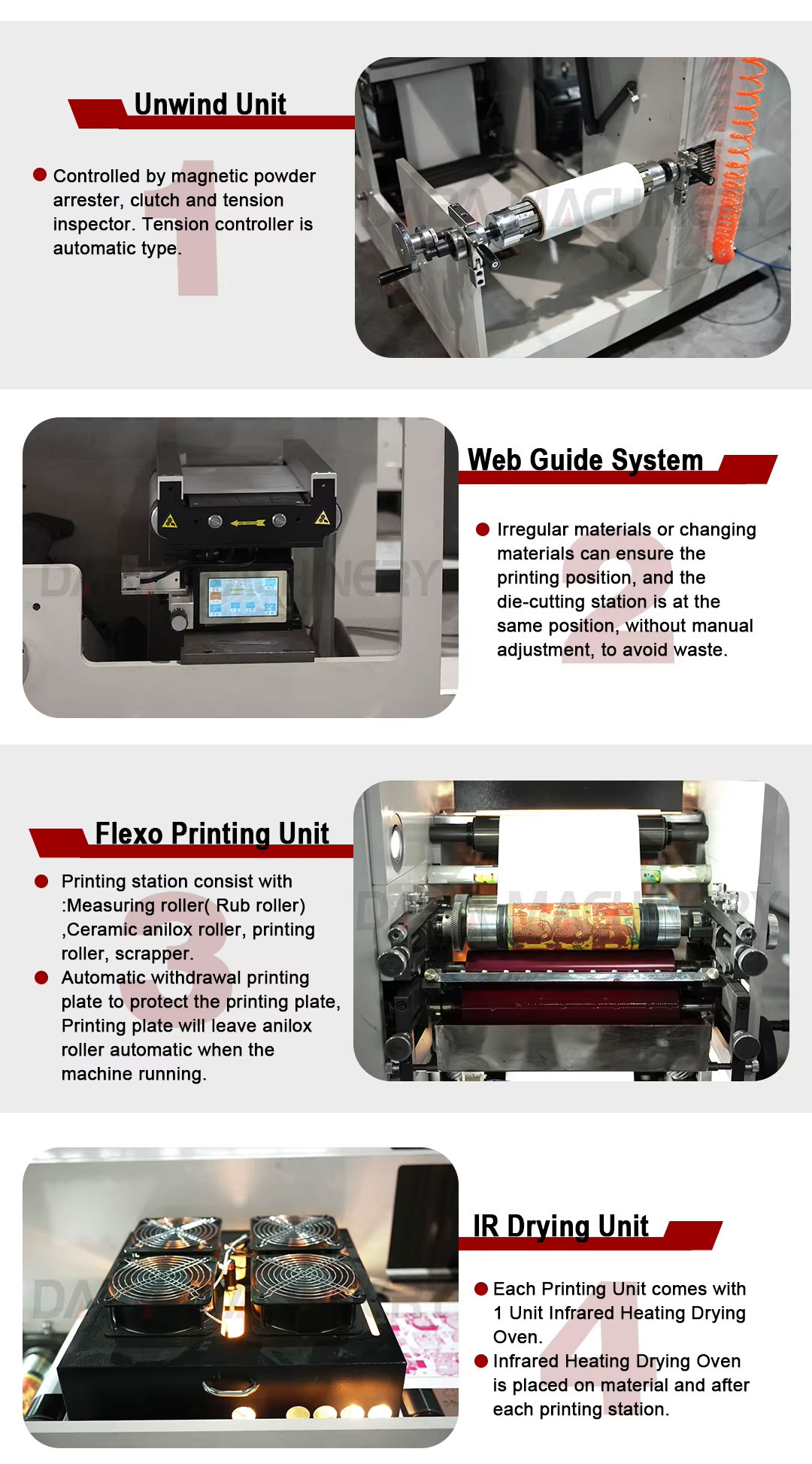

2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long usingl life, etc.It can improve the printing efficiency.

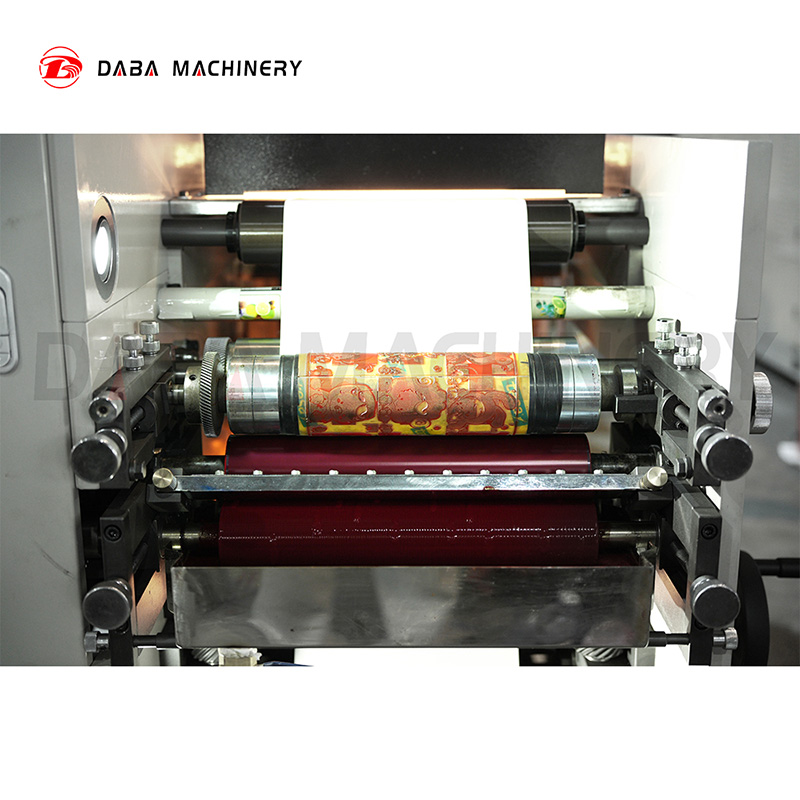

4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
5. Each printing unit collocated with IR dryer, the UV dryer is optional.
6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or asymmetric. (Option)

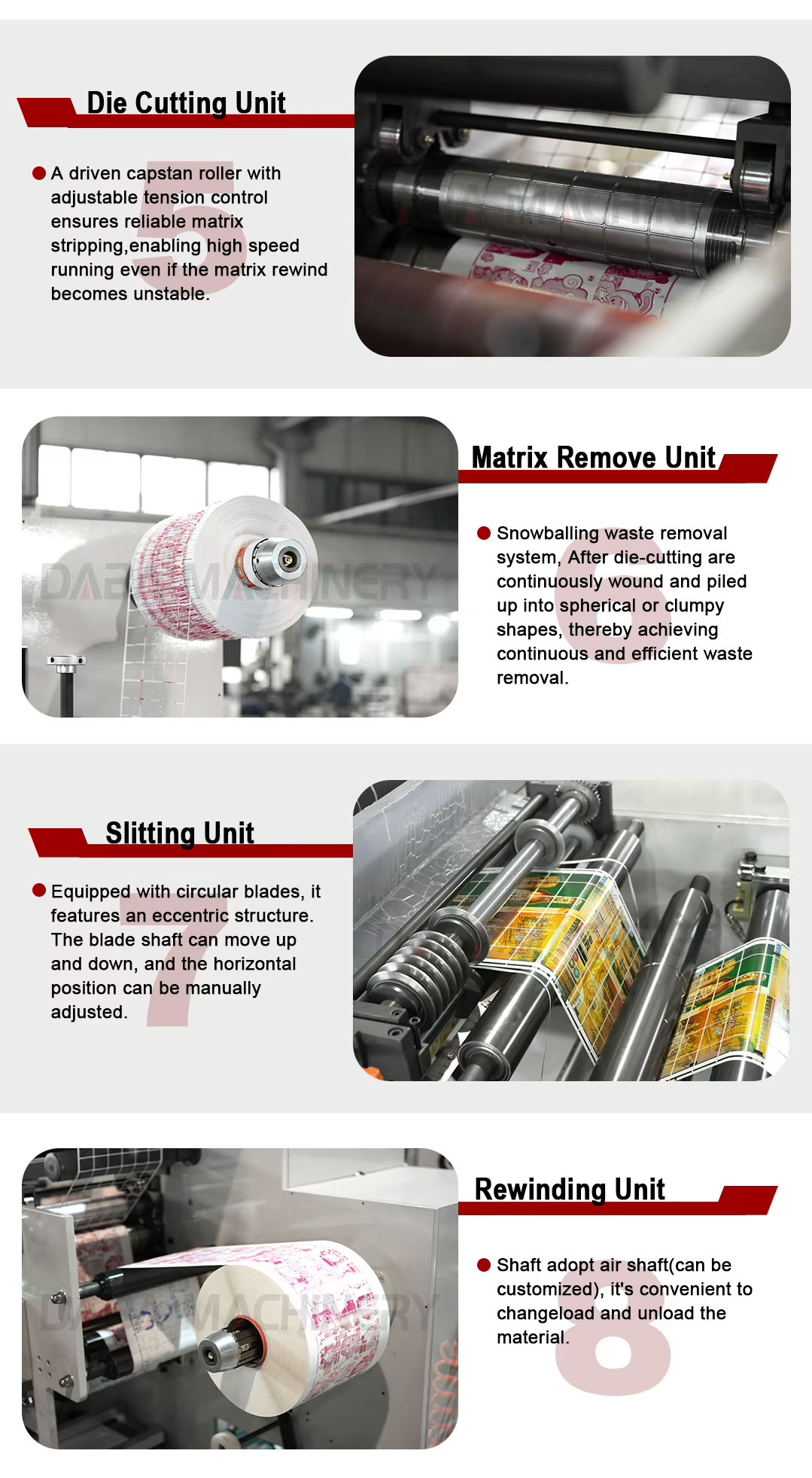

7.Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.

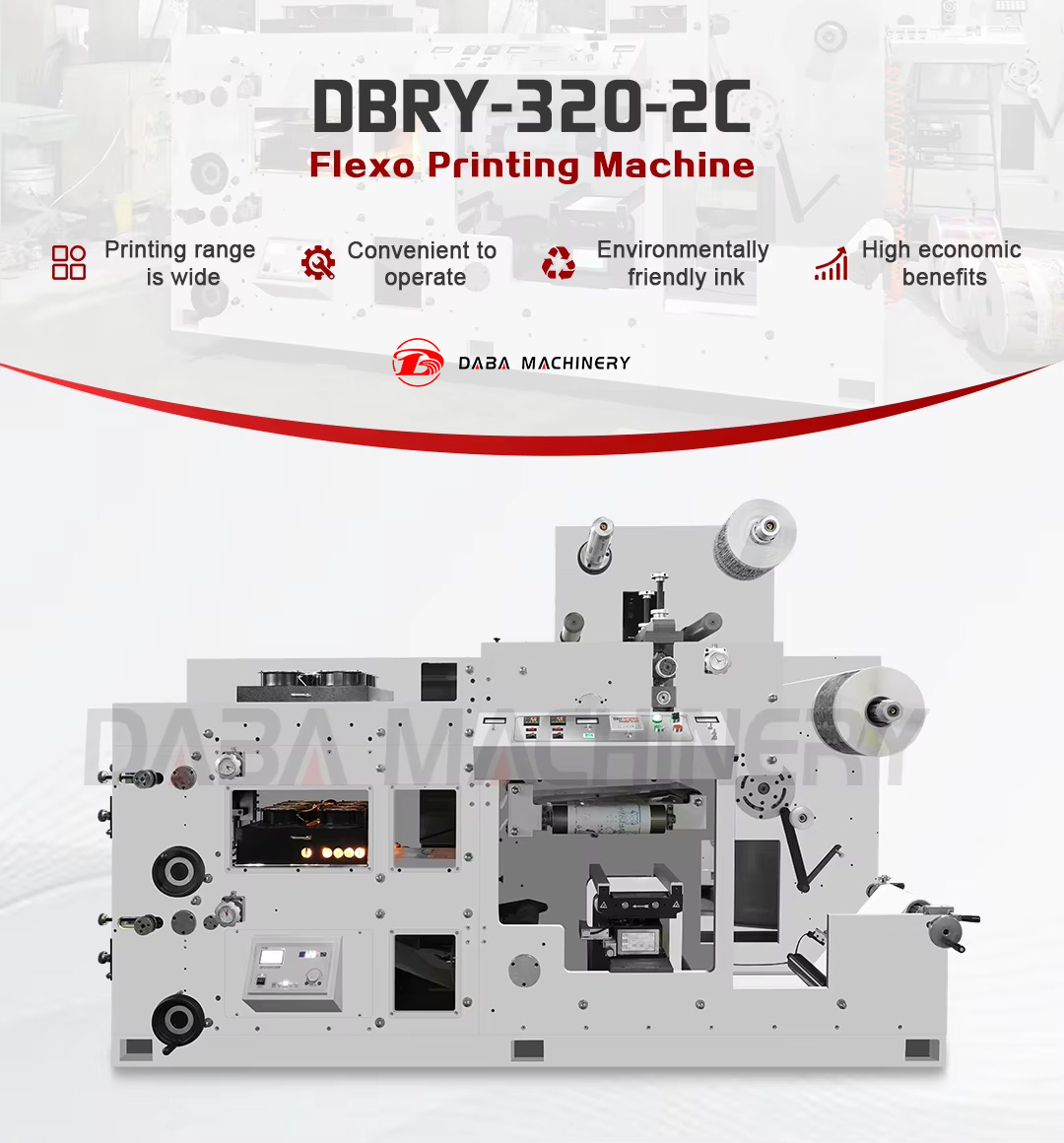

Model | DBRY-320 |
Printing speed | 55--80m/min |
Max.Unwind Diameter | 600mm |
Max. Rewind Diameter | 600mm |
Max. printing width | 320 mm |
Min.Printing width | 100 mm |
Max.repeat length | 178-580mm |
Precision of chromatography | ±0.10mm |
Dimensions | L2.3M*W1.4M*H1.6M |
Machine weight | About 2000kg |
