Brand Name : DABA

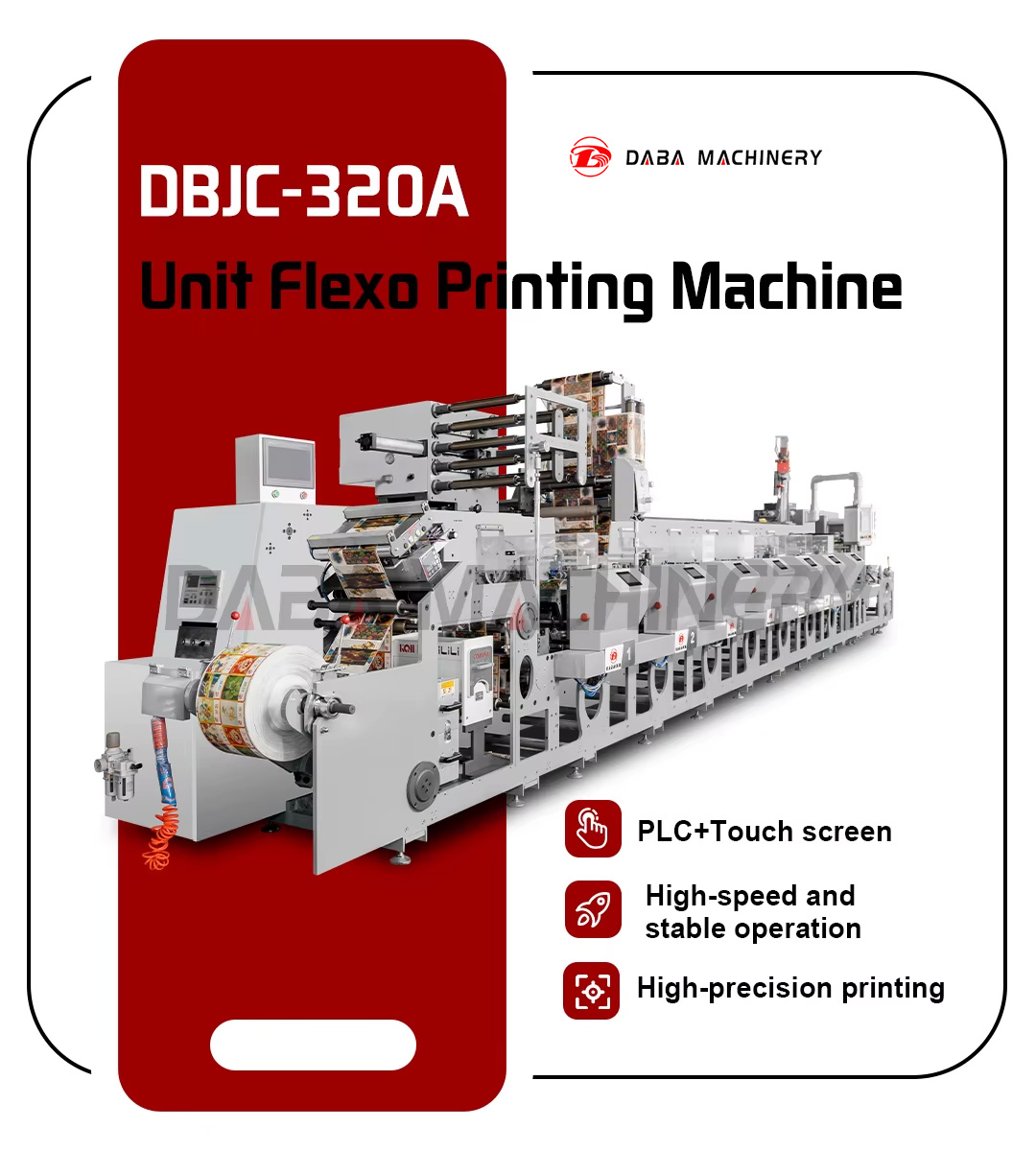

Model Number : DBJC-320A
Number of Colors : 7-Color
Printing speed : 180-200m/min
Printing width : 320mm
Printing length : 380mm
Printing Colors : 6-10 Unit
usage : Label Printer, Paper Printer, Card Printer, Bill Printer, Cloth
Printing Material : paper, film ,Aluminum
Voltage : 380V
weight : 5500

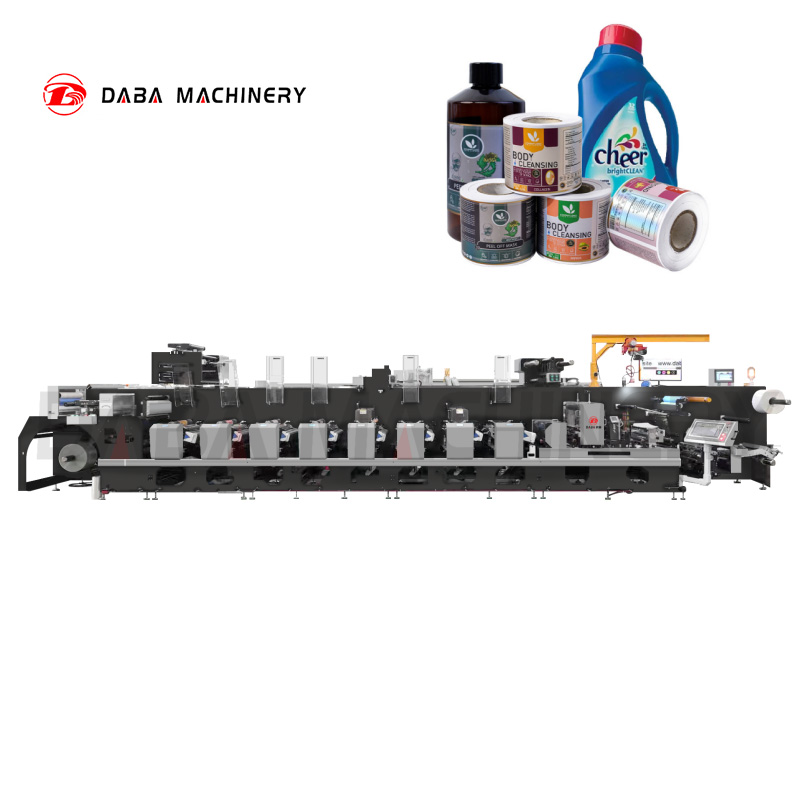

The machine can finish material-feeding, printing, varnish, drying, laminating, rewinding and die-cutting in one process is an ideal machine for printing note and top-grade adhesive label.
1. From the discharge to the receipt of the short distance.

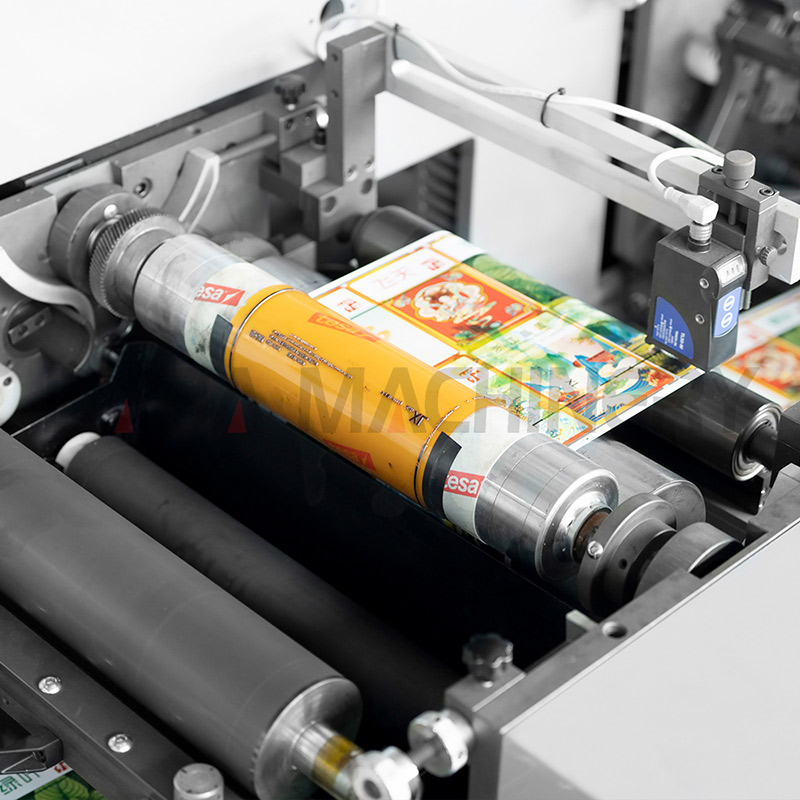

2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. The structure of printing station adopt petal type, one servo motor driven each printing color station.
4. using servo motor control automatic registration system.
5. PLC controller operating.
6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network
cable, the speed is also different, the fastest speed of printing labels is 150 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.

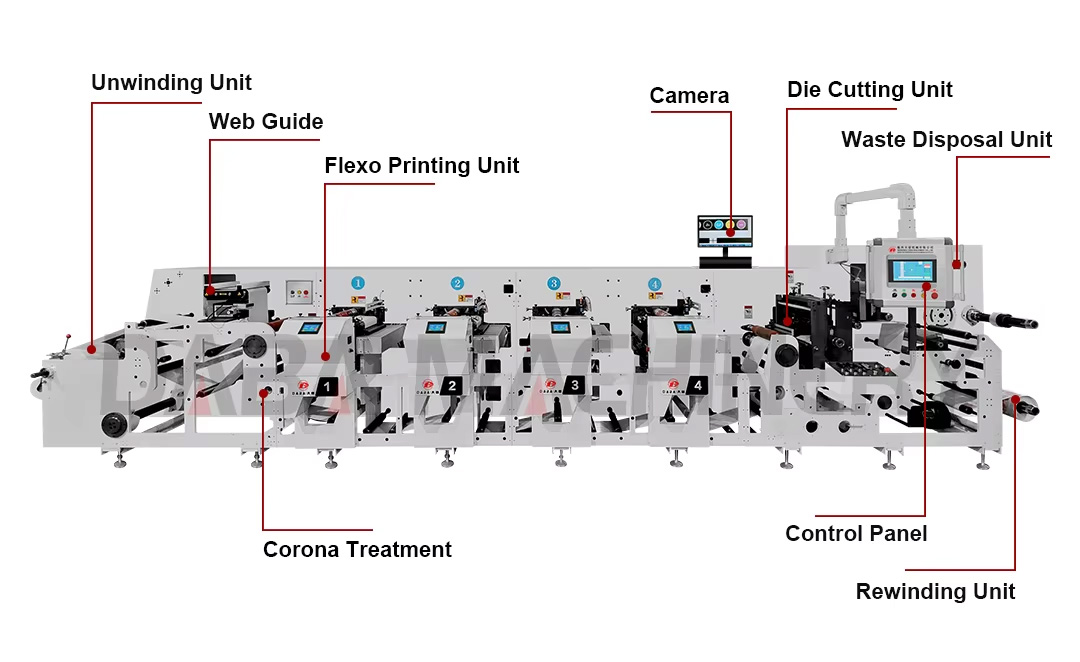

9. Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving
Printing Materials
Thermal Paper PE (Polyethylene) PET (Polyester) PVC Semi Glossy Paper Writing Paper

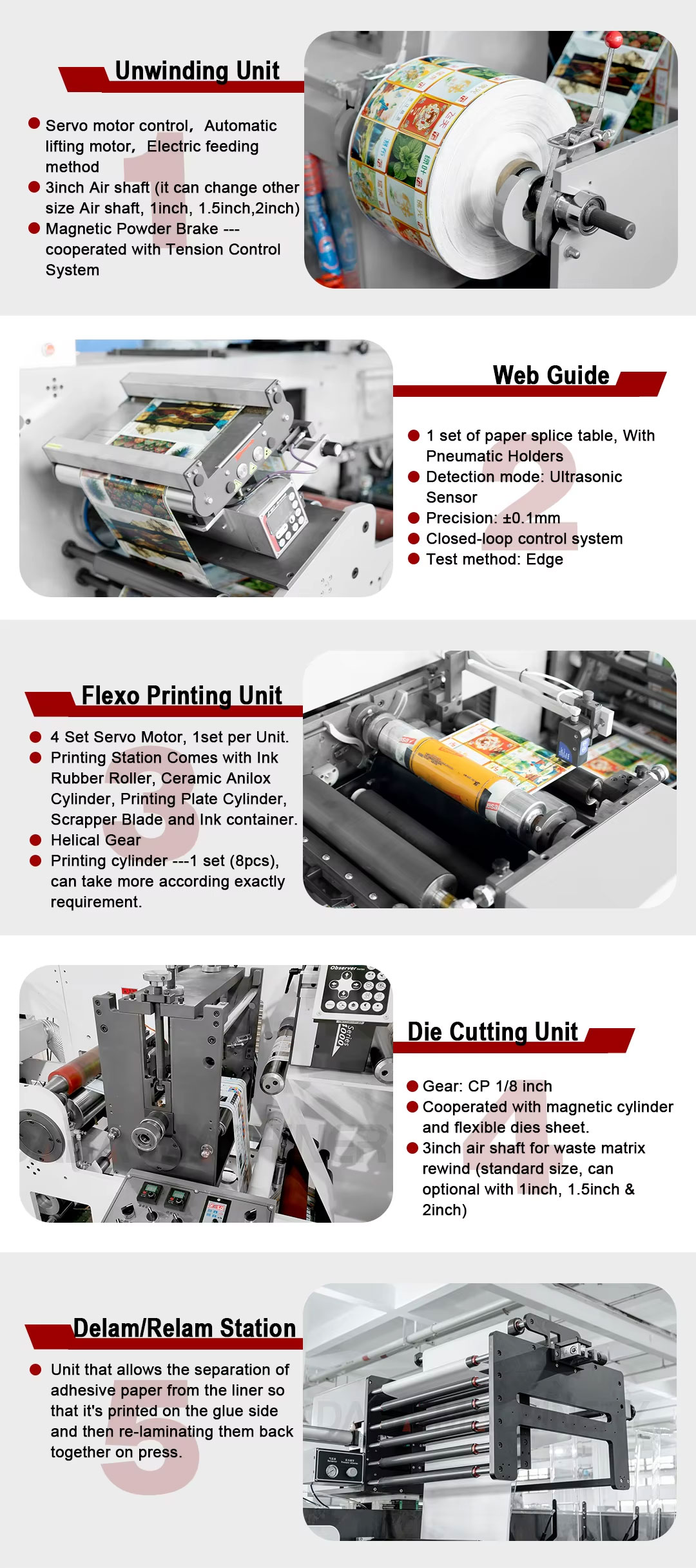

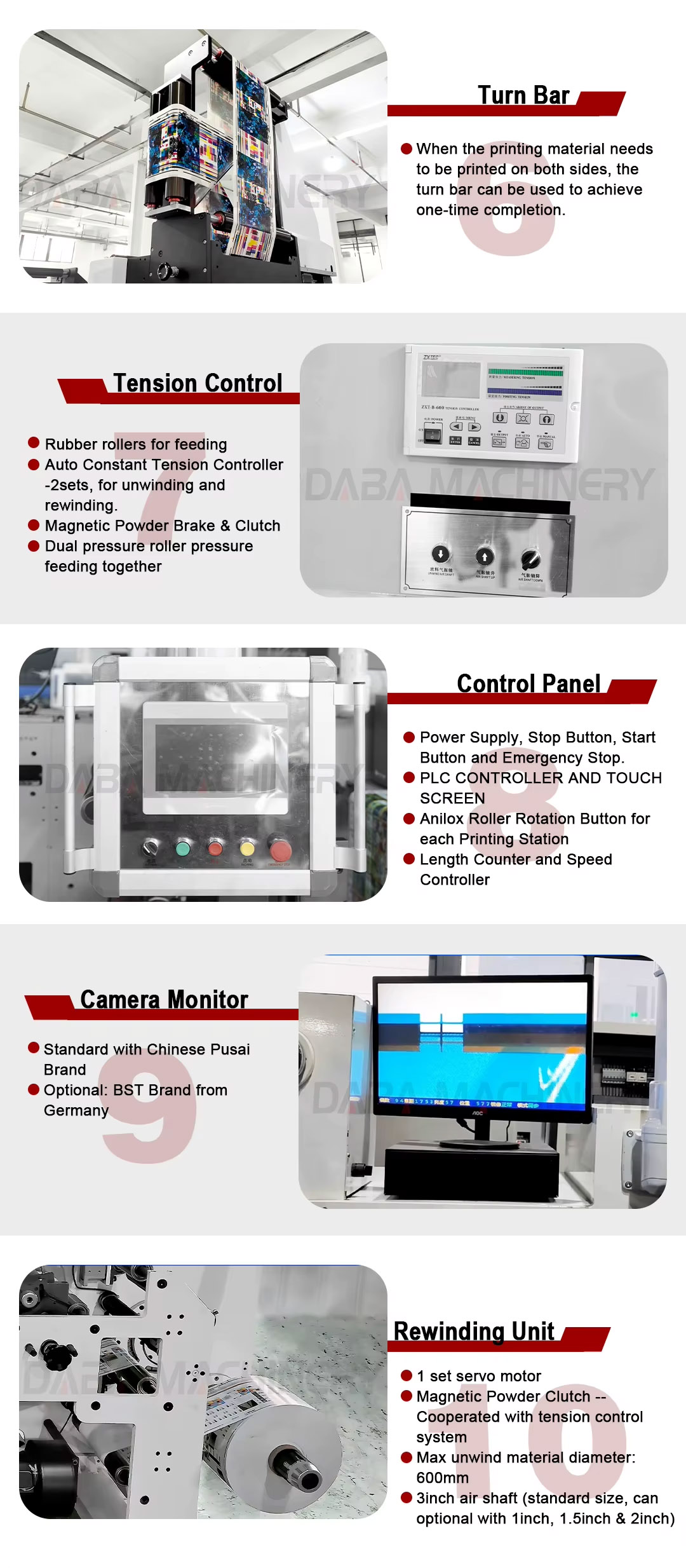

Standard Configuration Details

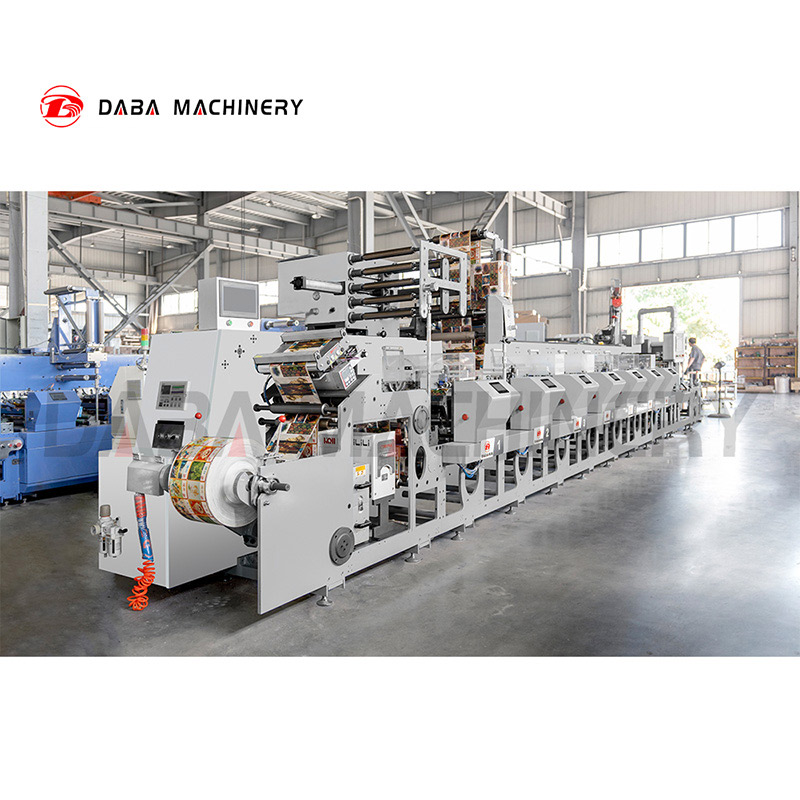

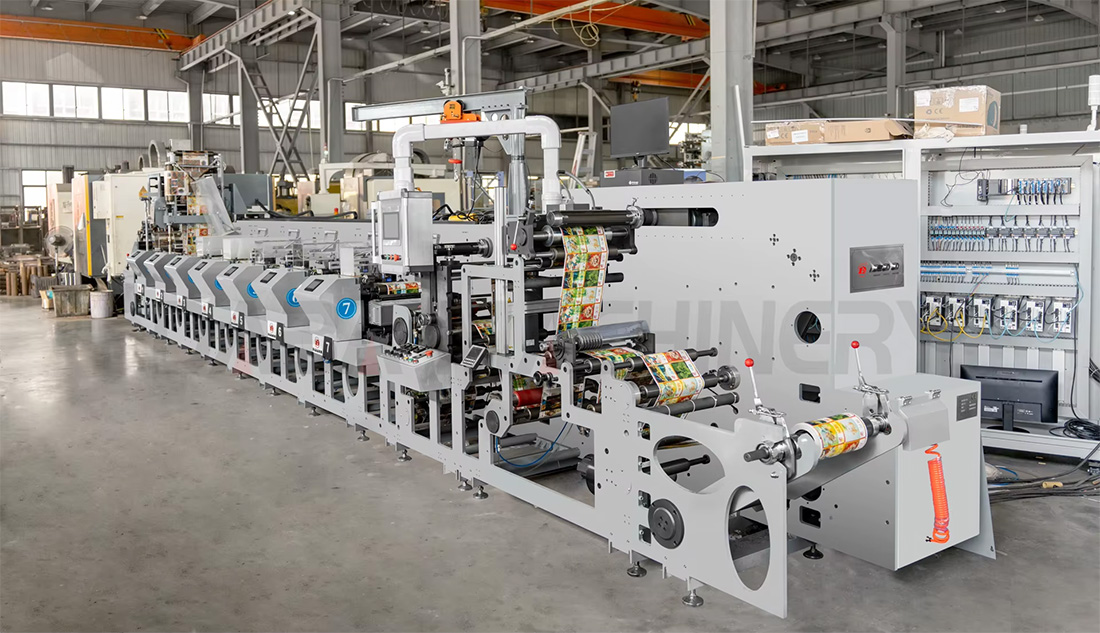

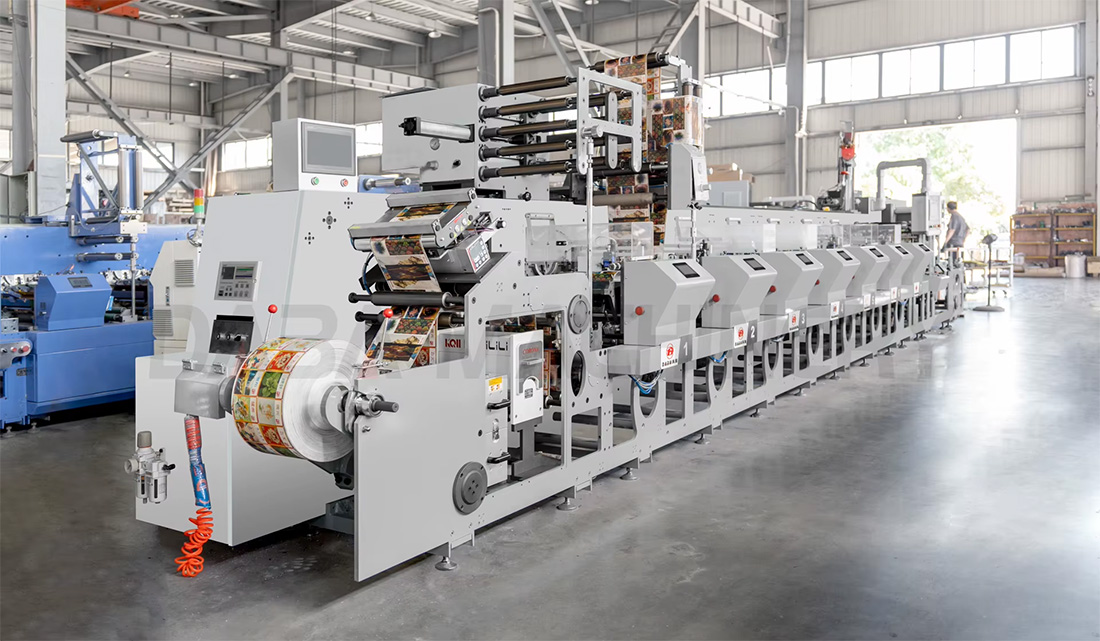

Factory Workshop
