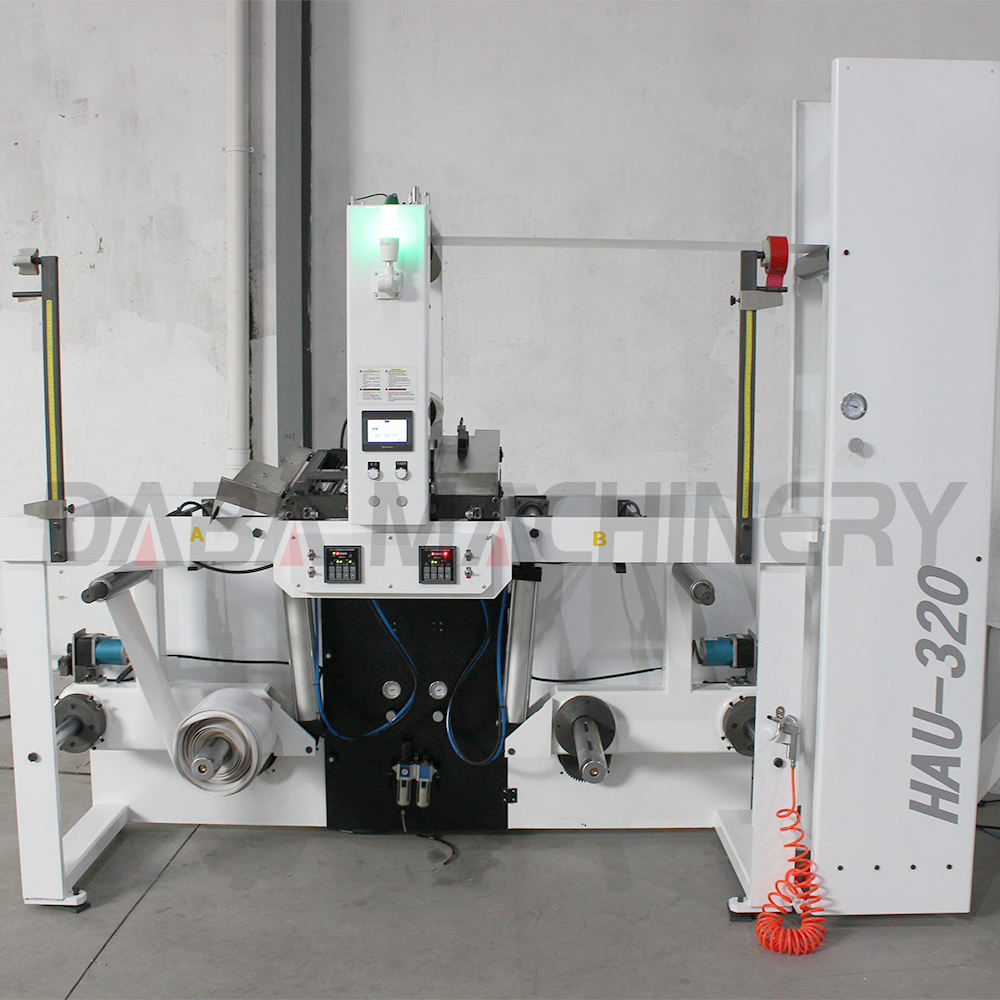

Brand Name : DABA

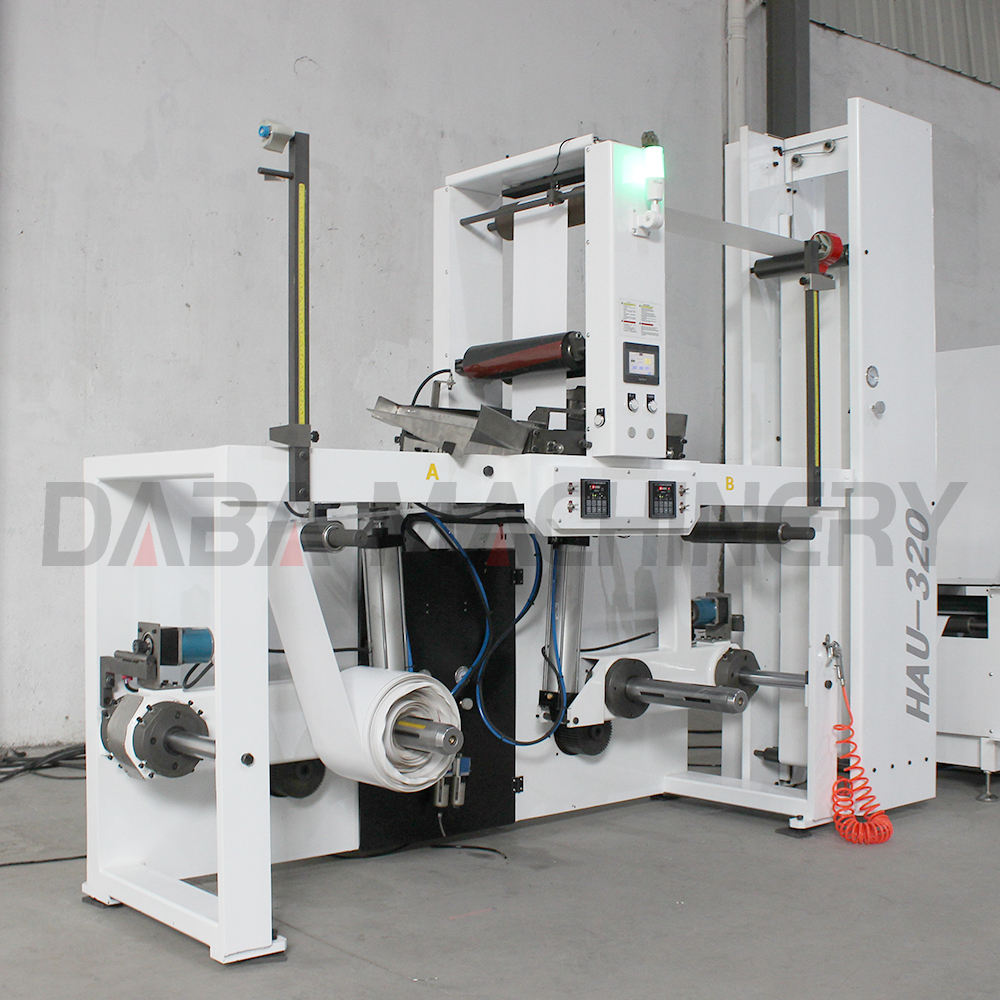

Model Number : HAU-320
Max Unwinding Diameter : φ980mm
Min Unwinding width : 350mm
Max. Run Speed : 180 m/min
Unwinding Connect Material Time : 2Sec
Way Of Connect Material : Oblique Connect
Angle Of Paper connect : 10°
Edge position control : Digital Terminal EPC
Dimensions : L1550mm*W1000mm*H1650mm
Machine weight : About 1200KG

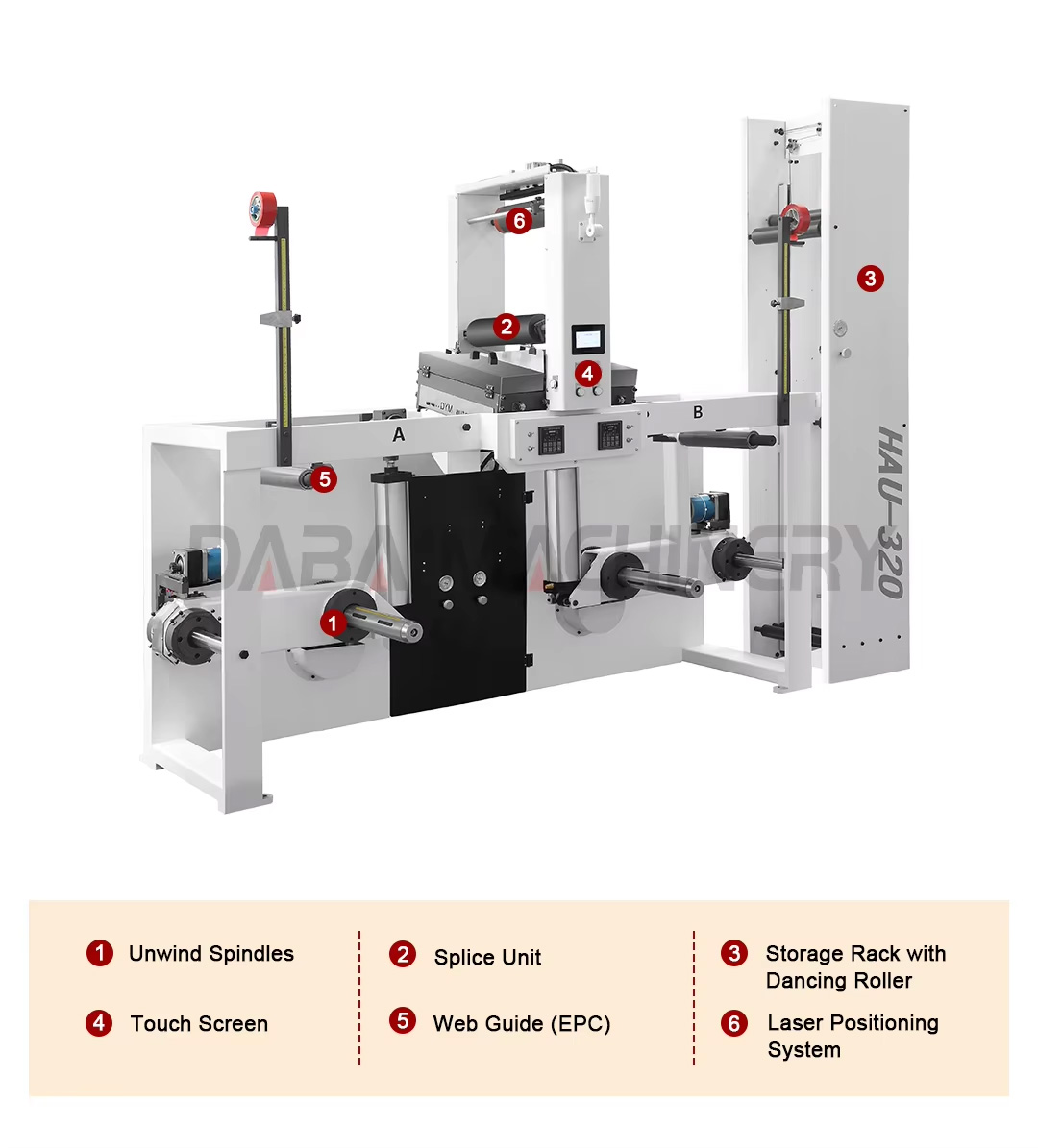

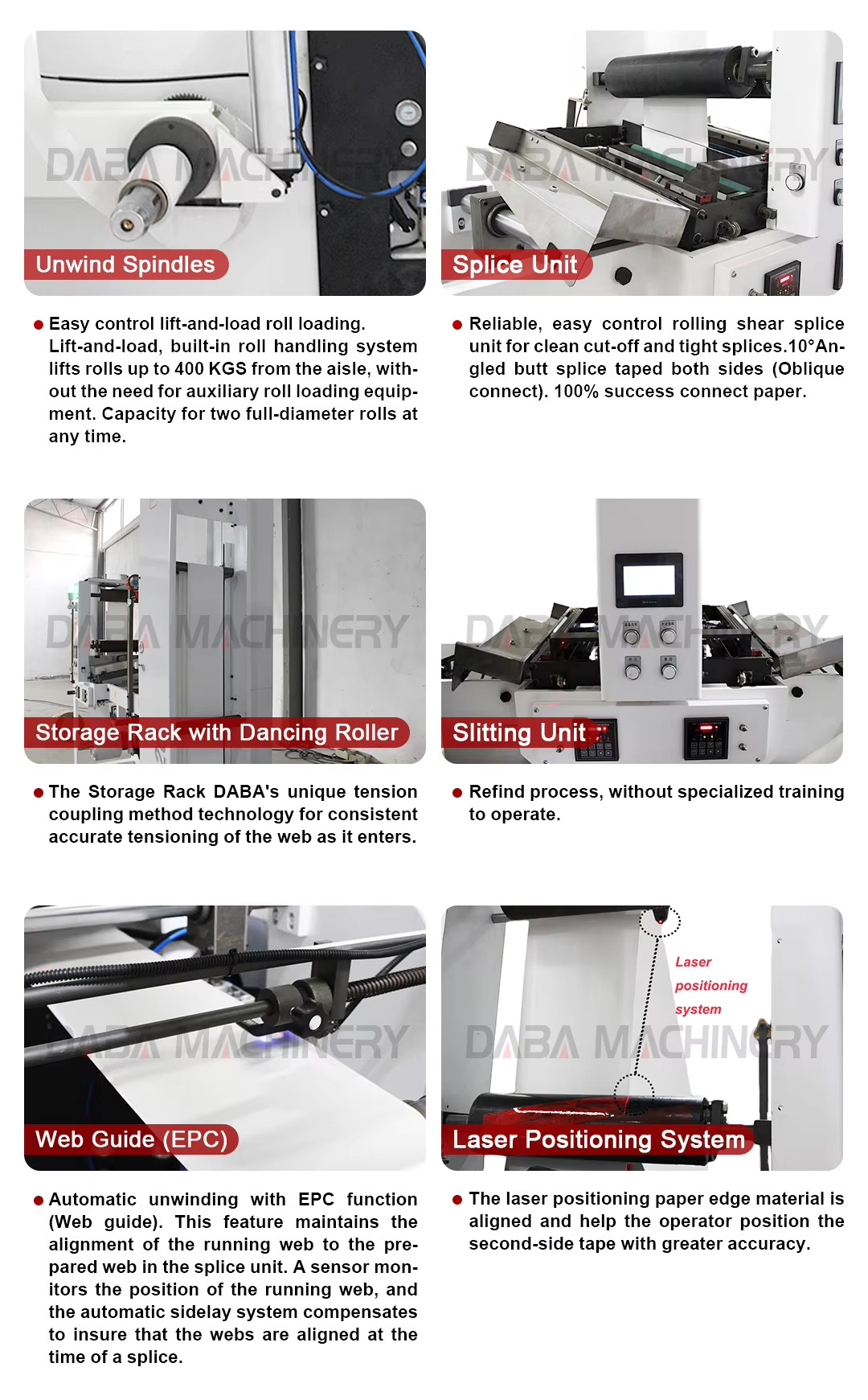

Main Features
DABA HAU automatic non-stop unwinding is serious automation for many web-fed processes. Automatic non-stop unwinding machine joins two webs together--typically, the end of an expiring roll to the beginning of another.

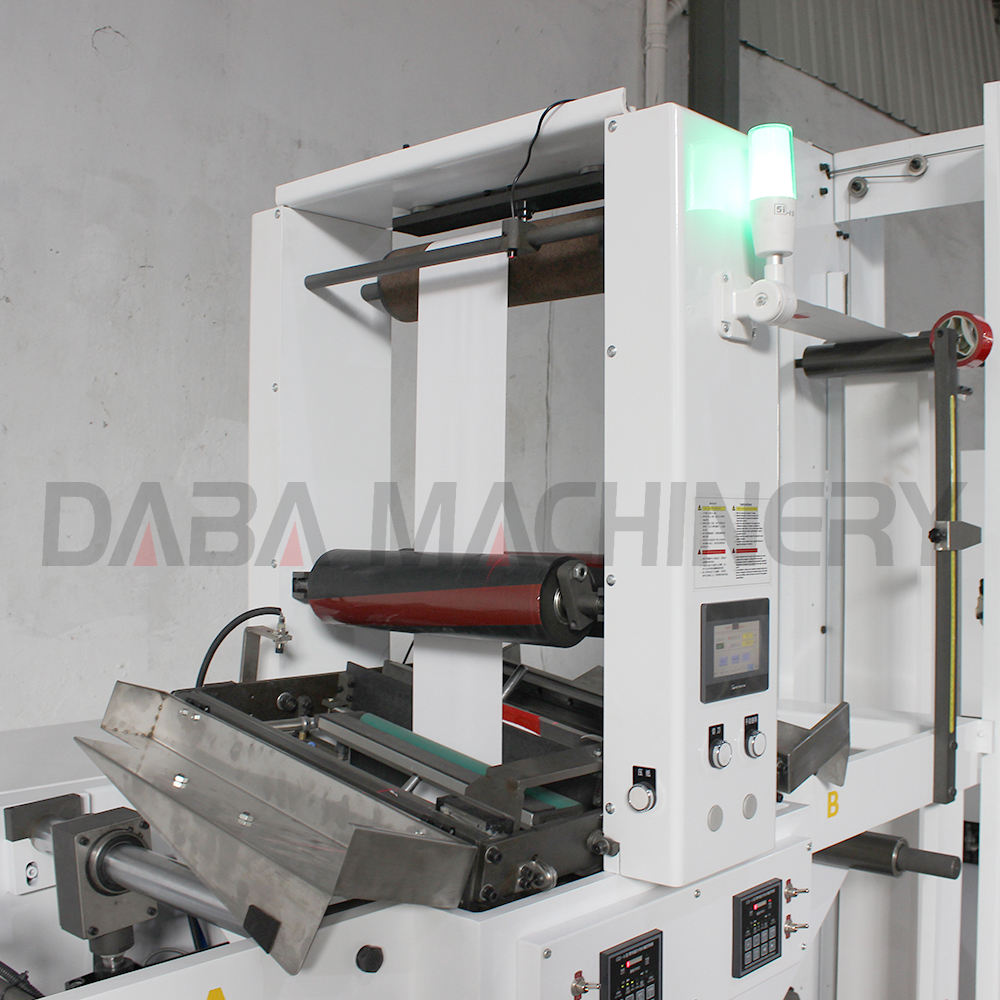

DABA Butt splice The two ends are trimmed straight and brought together so that the ends do not overlap. A thin tape, over the top or bottom of the splice, or both, holds the splice together. This splice method is required in applications where the thickness of overlapping webs is unacceptable. A DABA Automatic butt splicer performs this splicing function without slowing or stopping the process.
