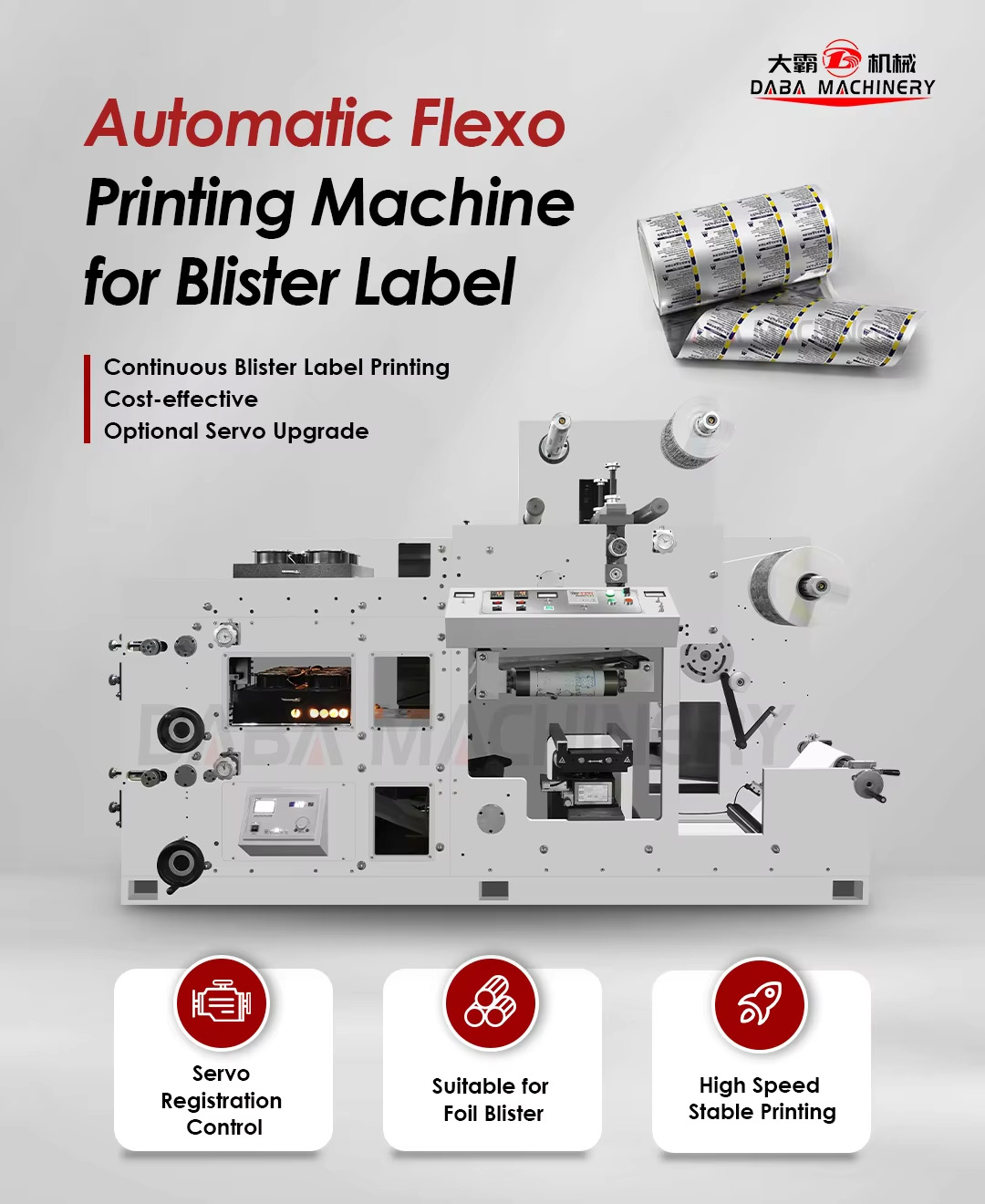

Brand Name : DABA
Model Number : DBRY320-2color
Number of Colors : 2-Color

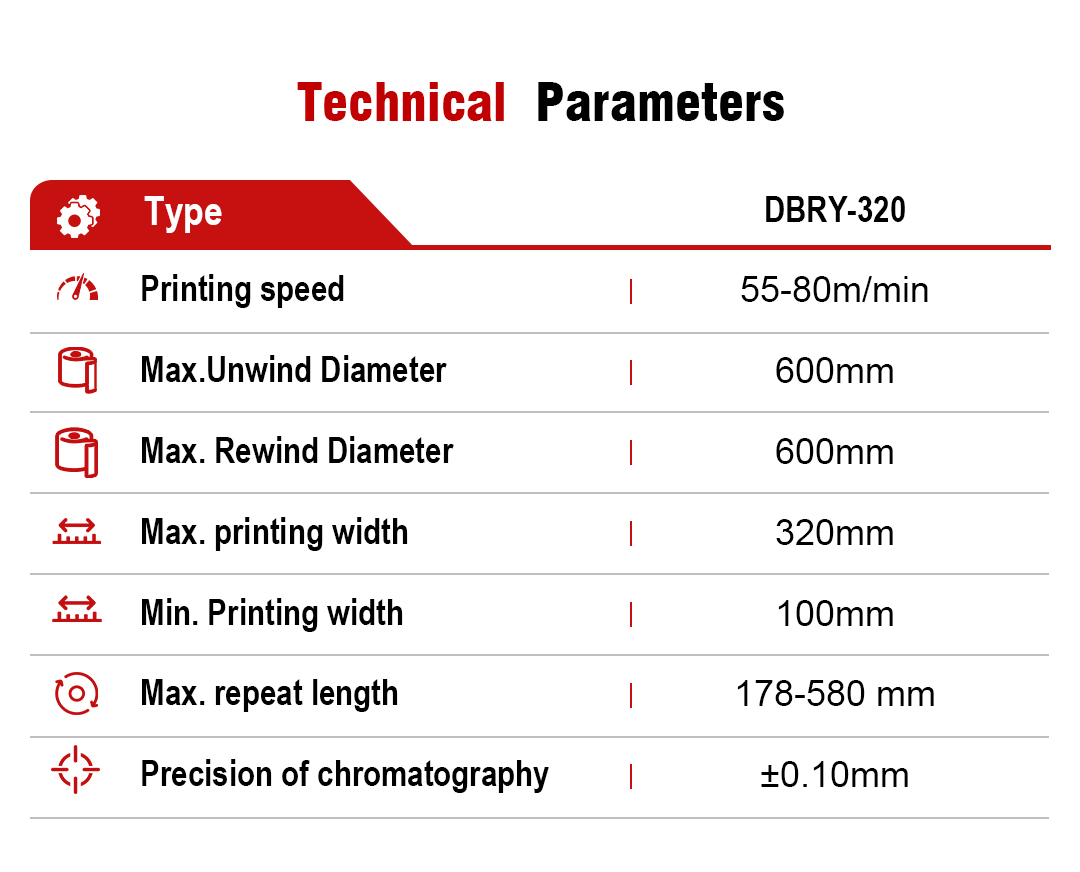

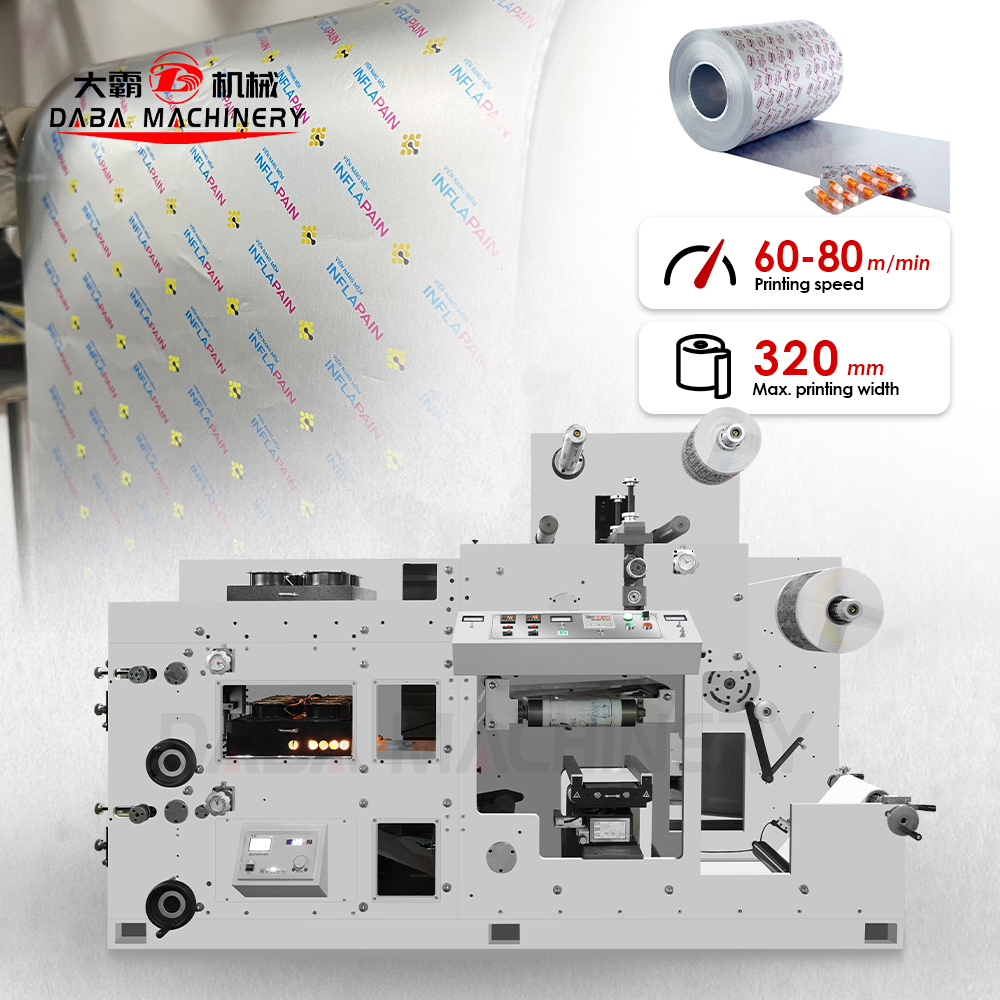

Printing speed : 50--80m/min
Max. printing width : 320mm
Min. Printing width：100mm
Max. unwinding diameter : 600mm
Max. repeat length : 178--580 mm
Precision of chromatography ：±0.10mm
Voltage : 380V
Highlights at a glance
1. Main motor adopts imported frequency stepless speed regulator.

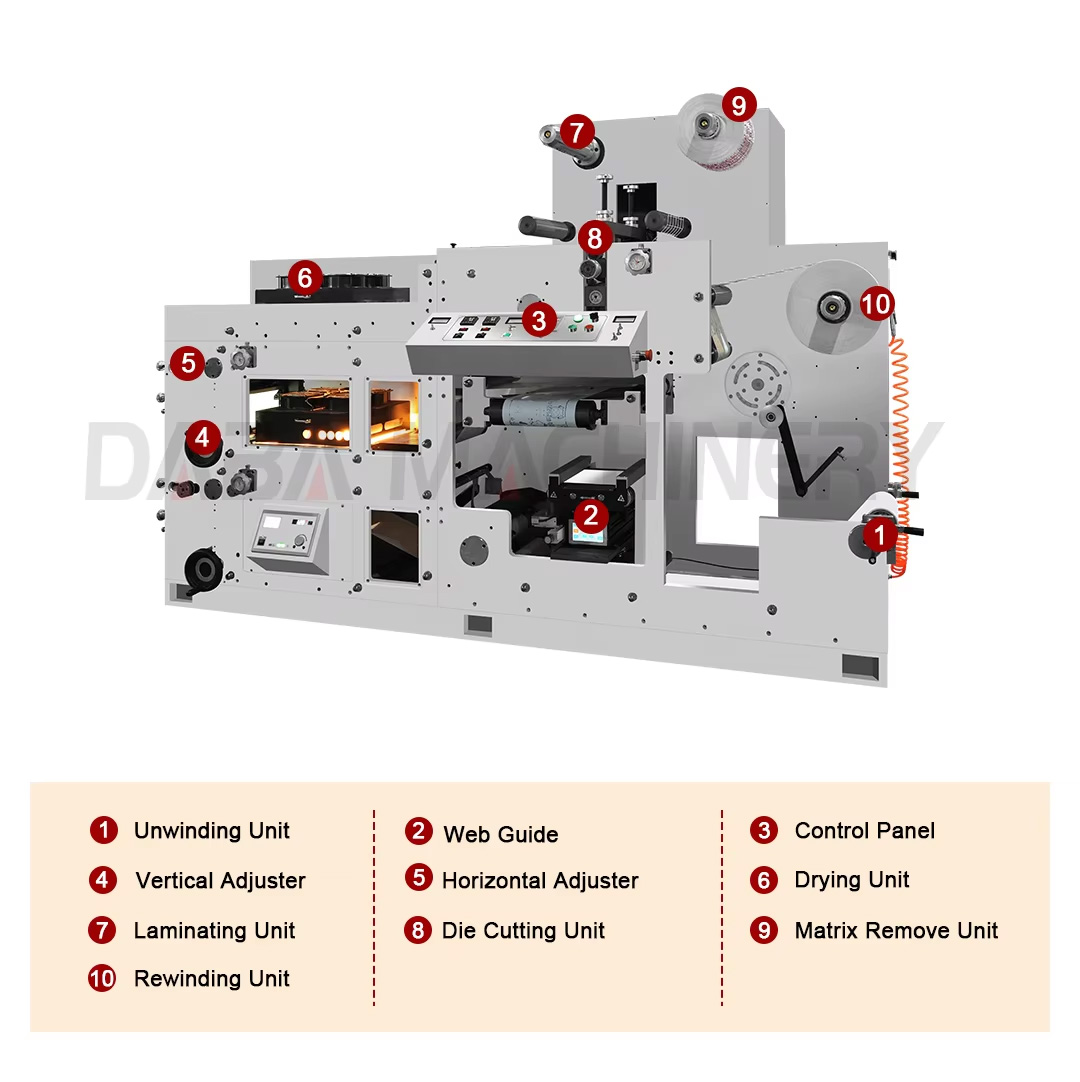

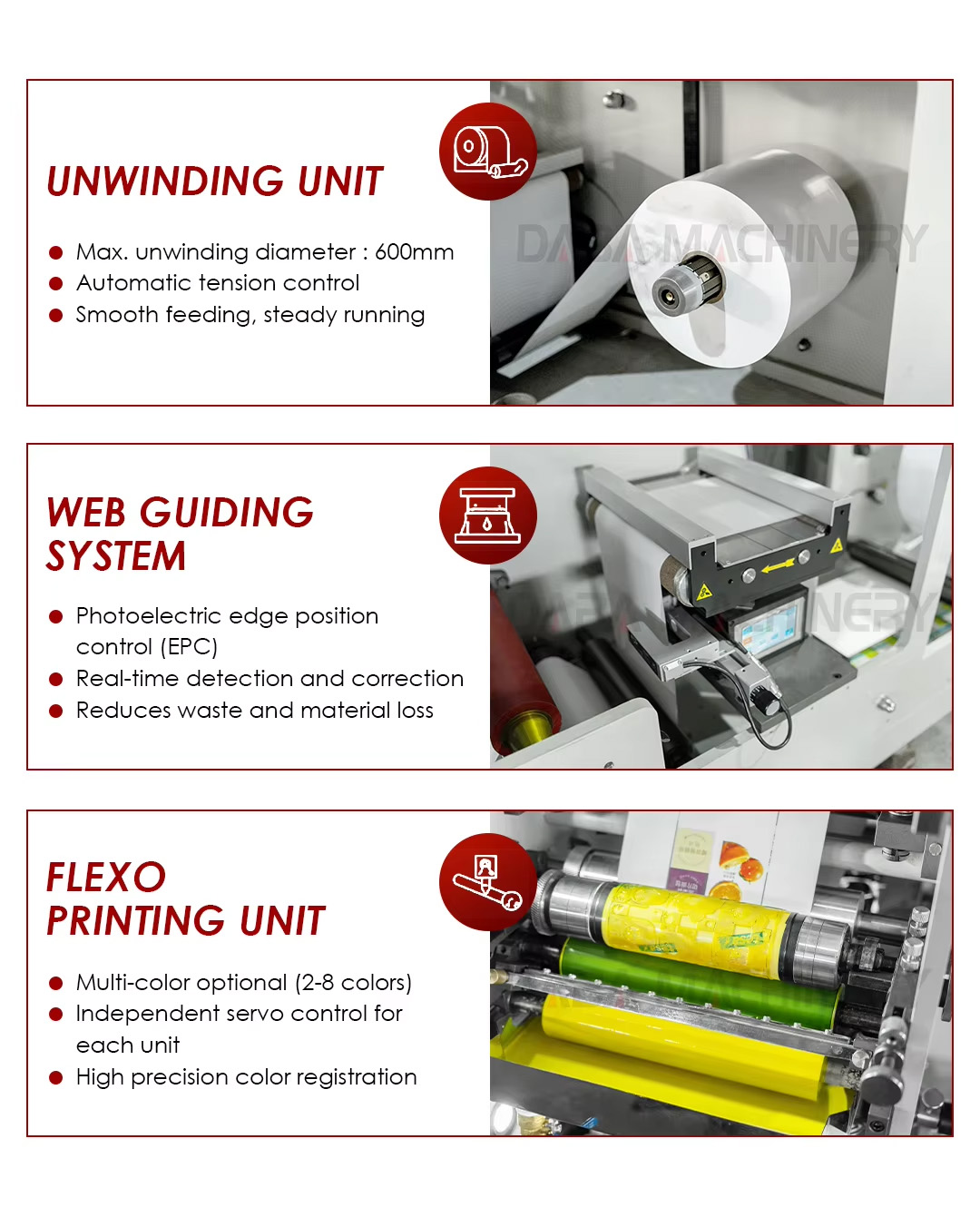

2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long usingl life, etc.It can improve the printing efficiency.

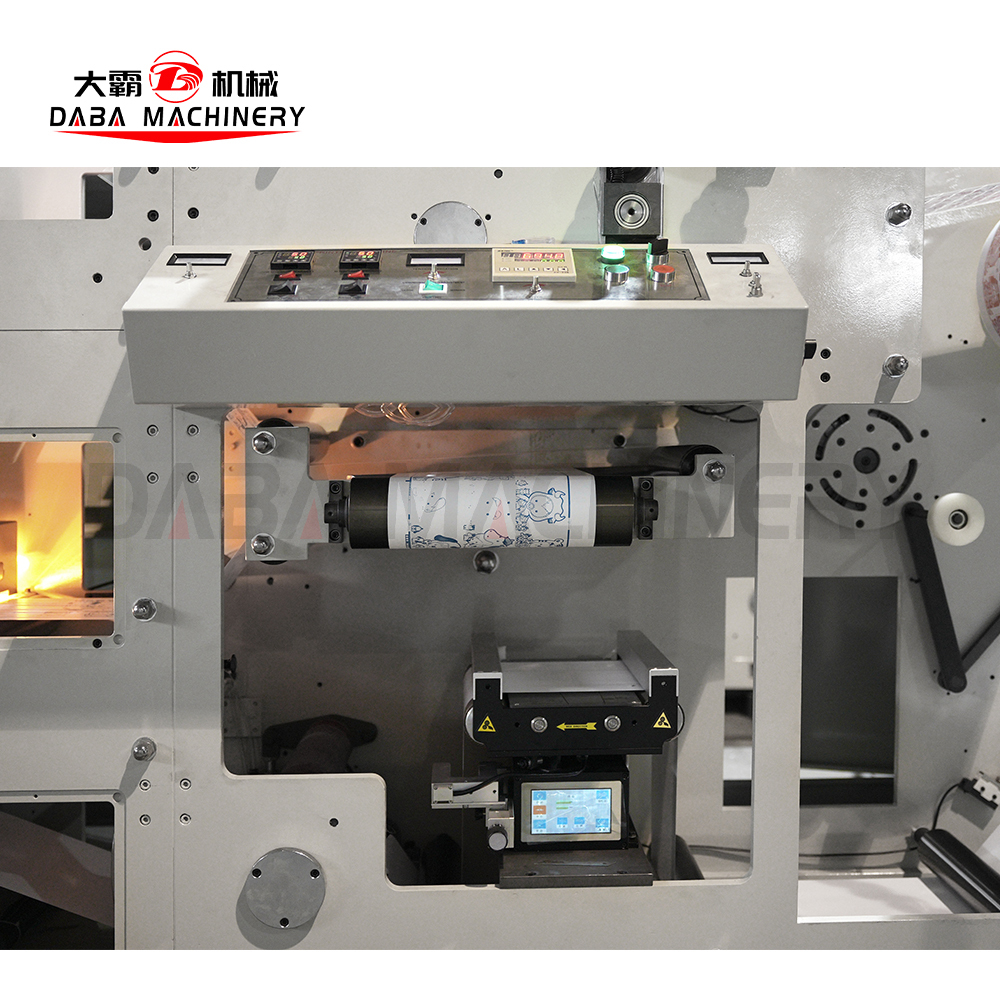

4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.

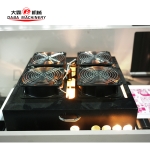

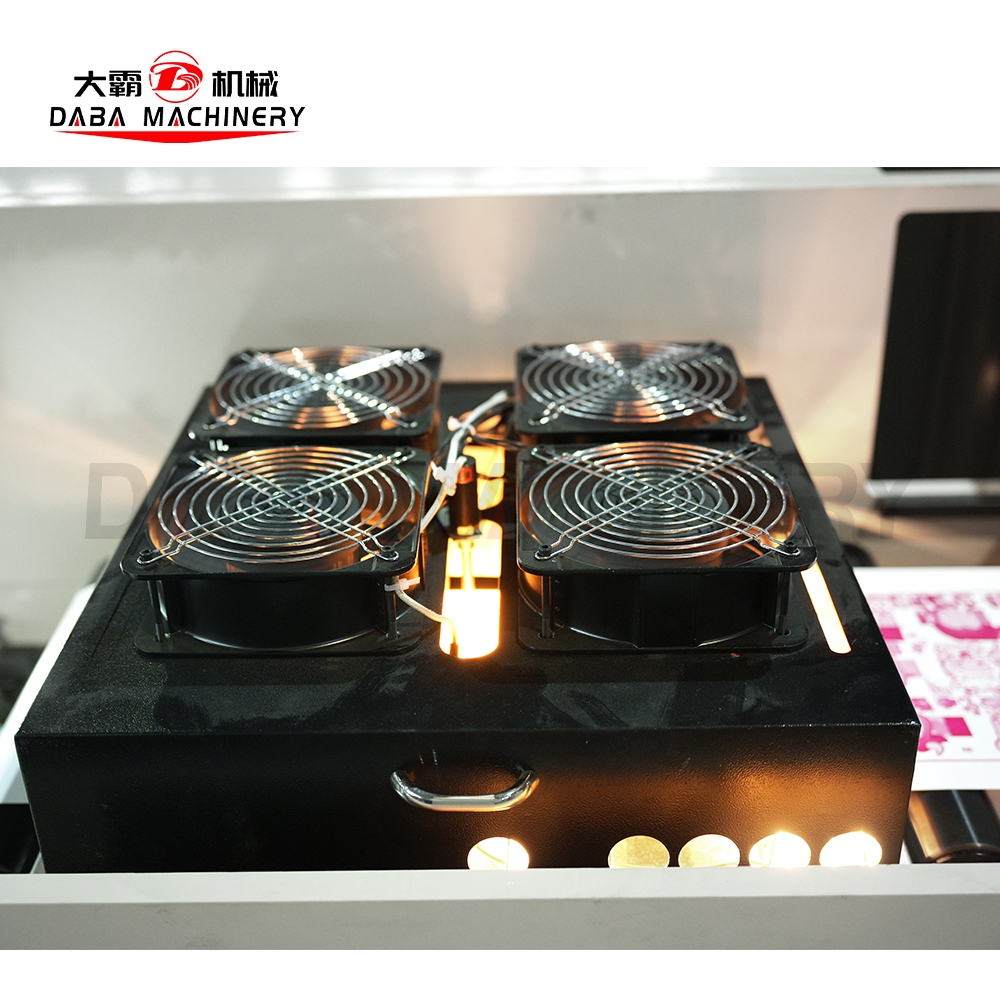

5. Each printing unit collocated with IR dryer, the UV dryer is optional.
6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or asymmetric. (Option)
7.Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
