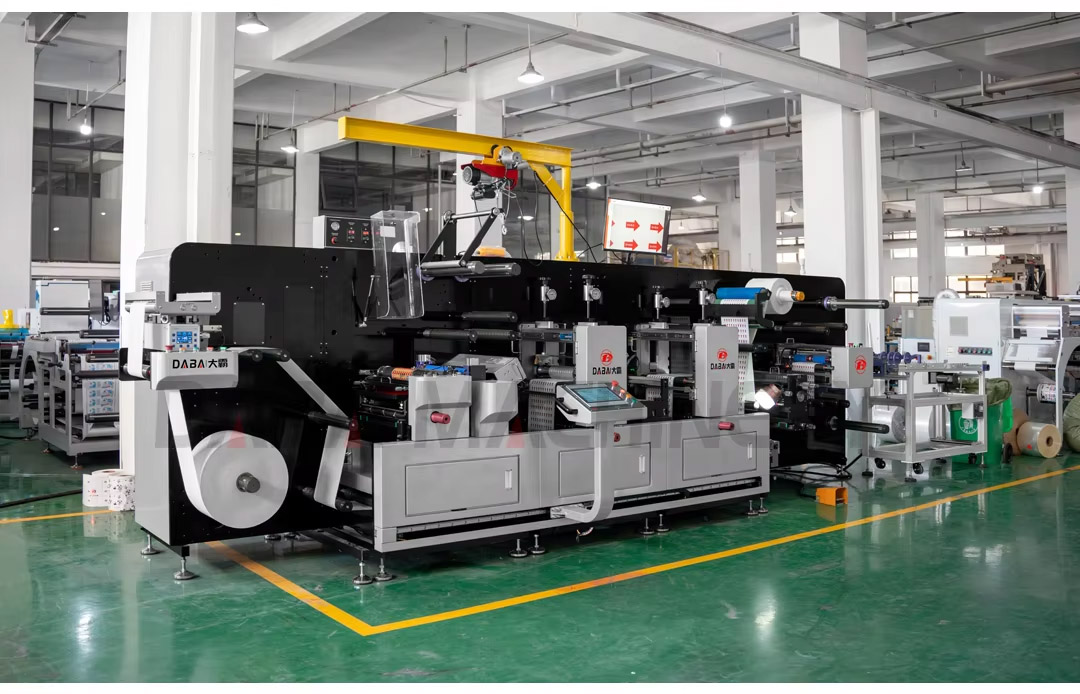

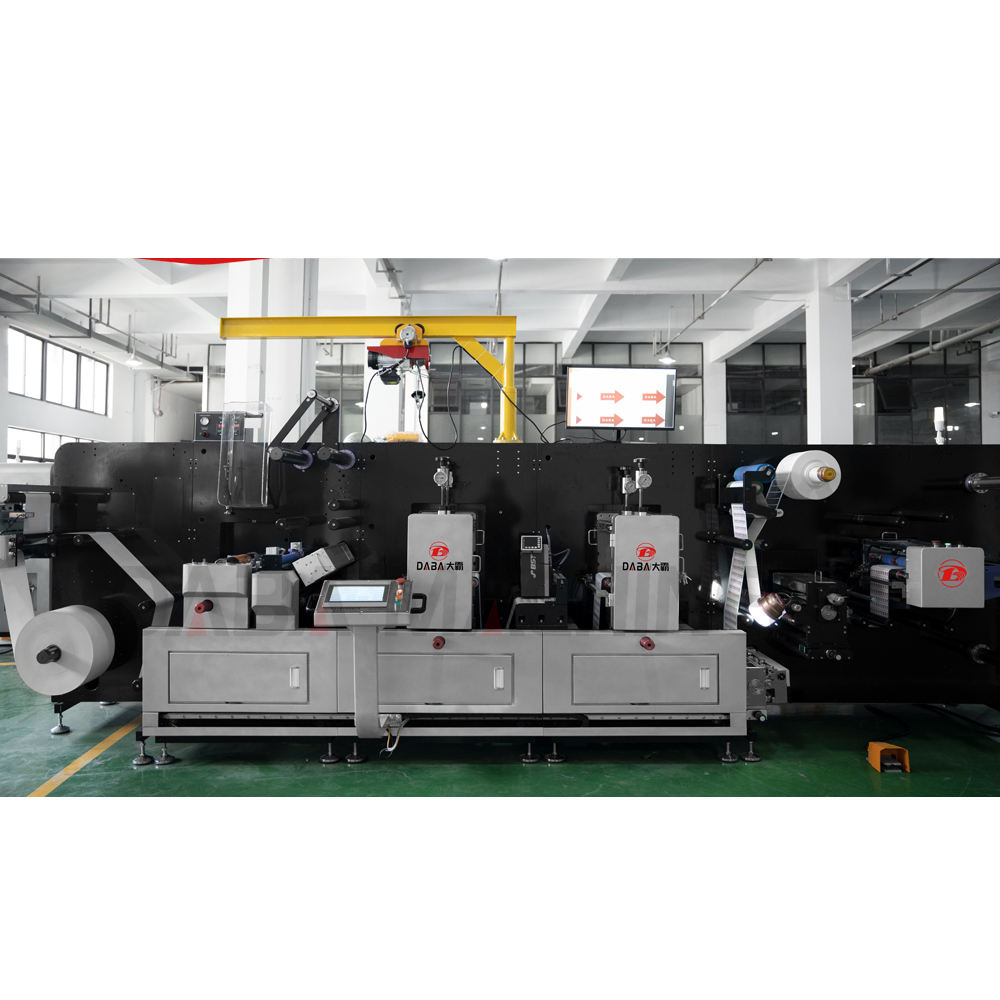

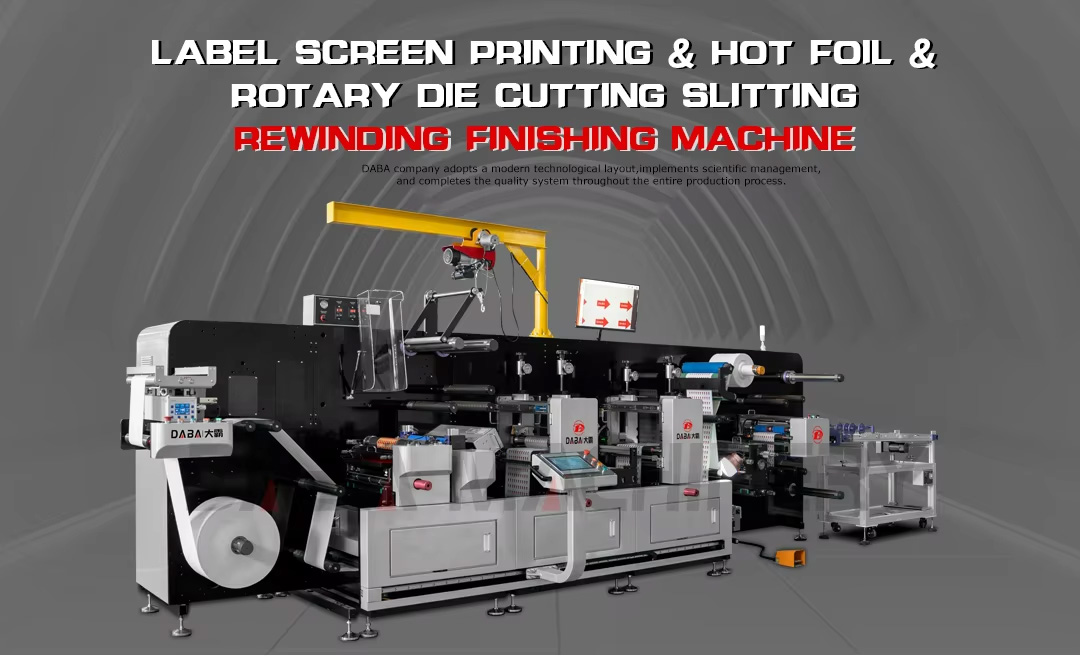

The machine is equipped with a total of 13 servo motors, ensuring stable operation and is a batch-type machine.

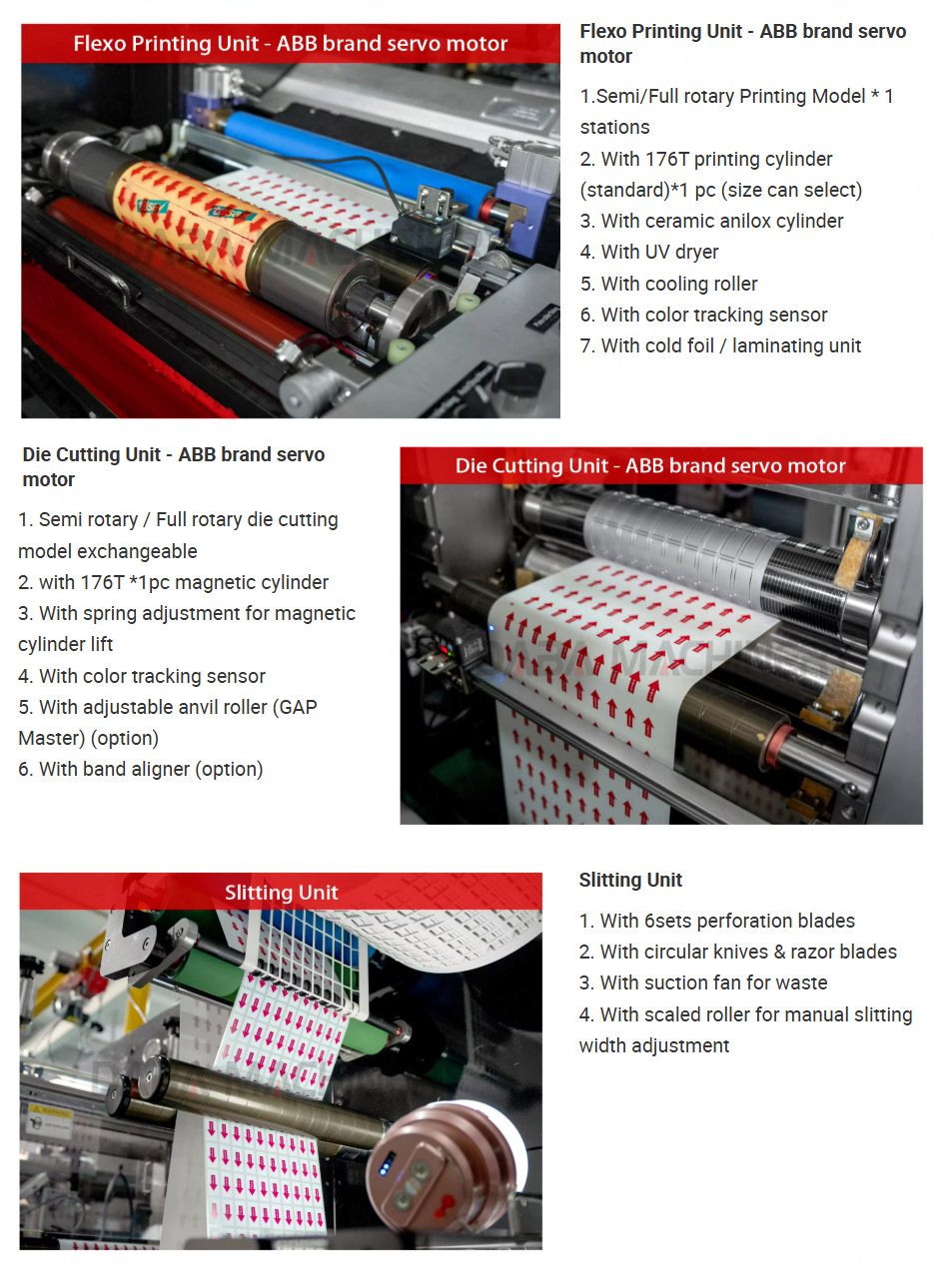

It has a flexographic printing, die-cutting, and slitting unit.

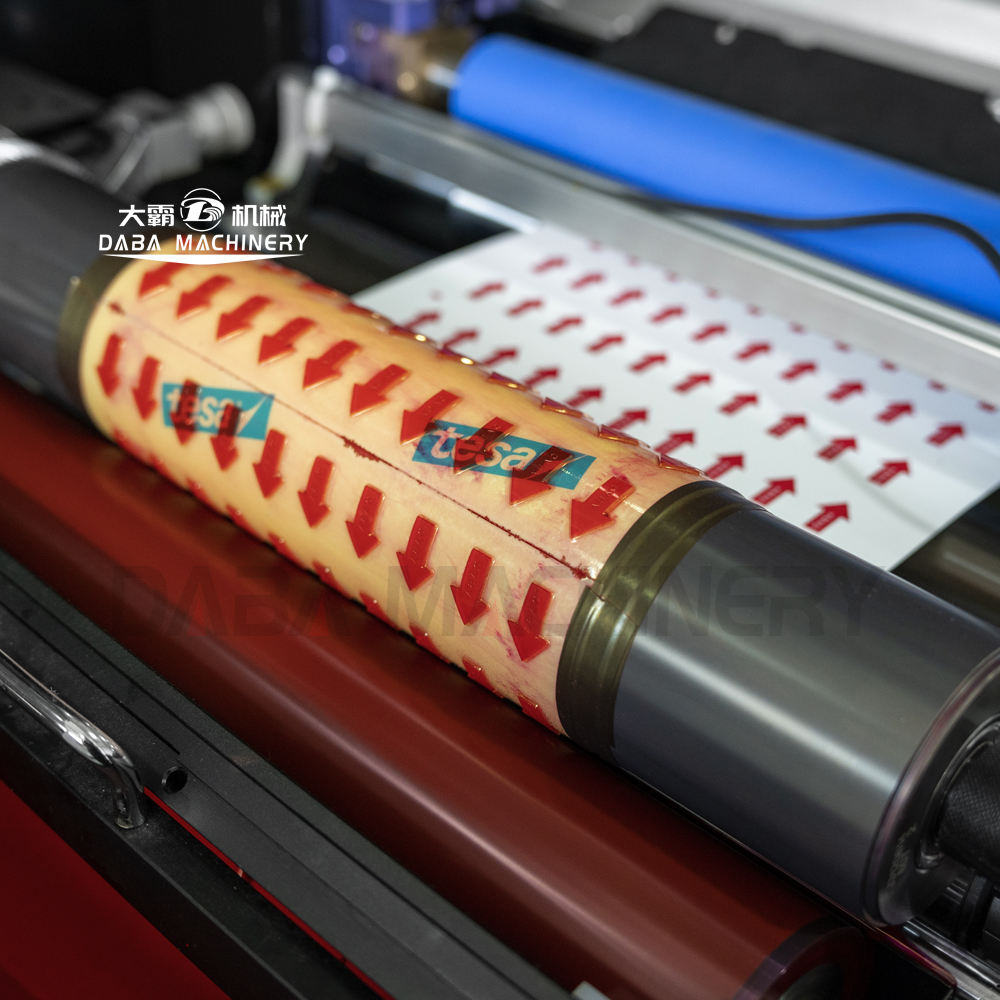

In flexographic printing, it can perform cold foil stamping, vanishing, lamination, and printing, and also accepts multi color printing.
It requires the use of a color tracking sensor for reprinting.

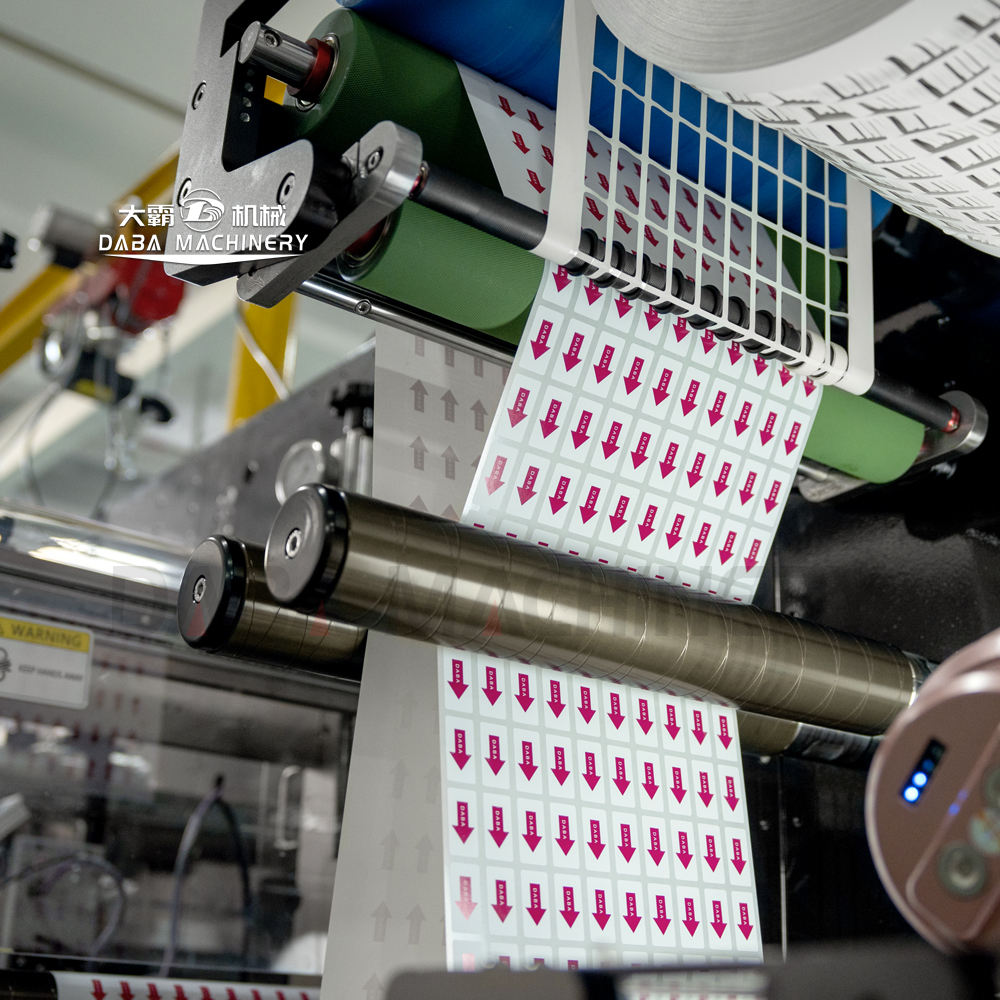

In rotary die-cutting, it can perform kiss-cutting, punching, inner die-cutting, and post-die-cutting, with a tracking sensor.
It operates in semi-rotation, with a magnetic roller capable of performing various die-cutting operations.

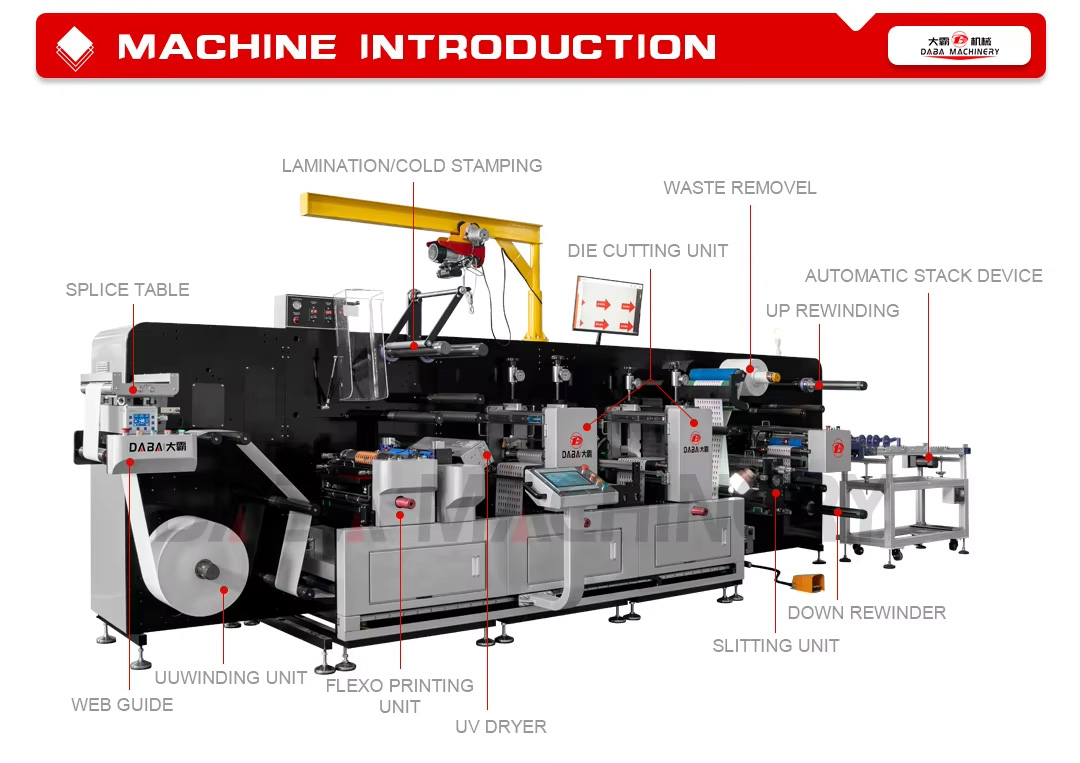

1. The modular model can be freely matched with different stations to complete different work processes according to the demandsof customers;
2. The design of connected all-in-one machine combines different processing machines on one machine, saving the costof different machines and labor costs;
3. Servo drive, stable operation, high production precision, guaranteed quality;
4.Intermittent operation mode, saving spare parts cost for different product production;

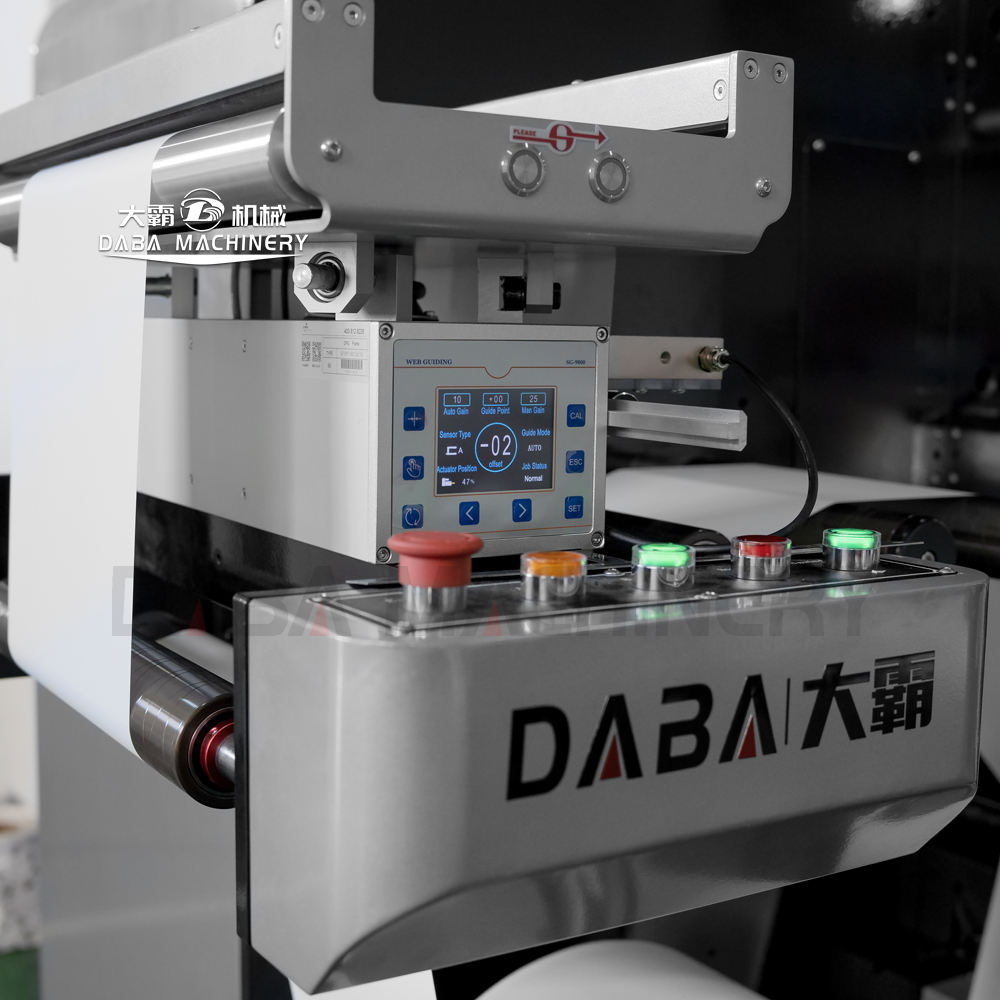

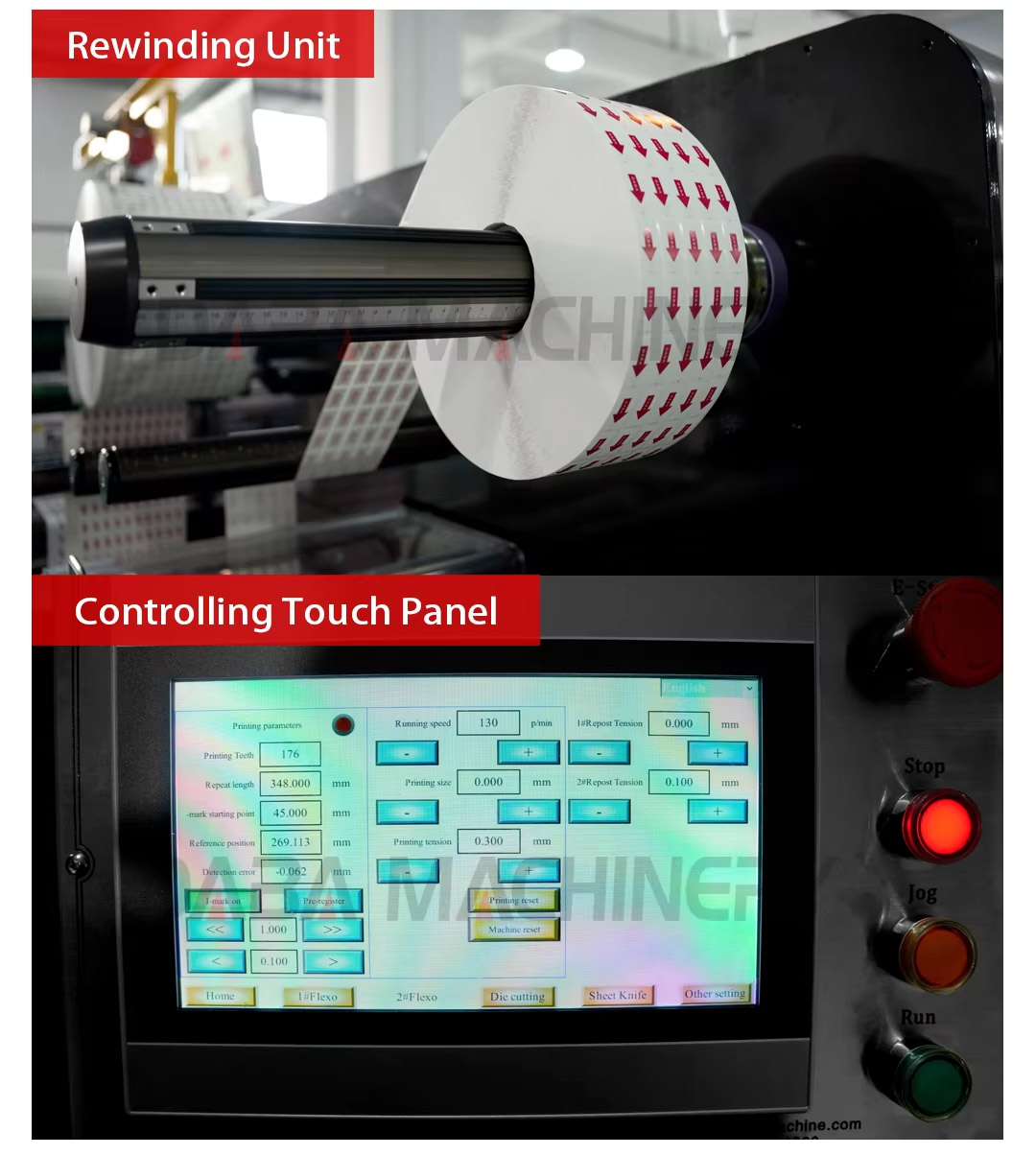

5.Using the combination of movable touchscreen control and simple emergency operation button table, it is more convenient and simple to run the machine.
Max. Web Width | 370mm (14.56") |
Max. Unwind Diameter | 800mm (31.5") |
Application Material Thickness | 30um ~ 300um |
Max. Die Cutting Width | 350mm (13.77") |
Max. Full Rotary Flexo Printing Speed | 120m/min |
Max. Semi/Rotary Flexo Printing Speed | 60m/min |
Optional Printing Cylinder | 80T-210T |
Standard Printing Cylinder | 176T |
Printing Tracking Method Color | sensor |
Max. Screen Printing Width | 370mm |
Screen Printing Repeat | 400mm |
Re-Printing Precision | ±0.15mm |
Max. Screen Printing Speed | 20m / Min |
Hot Foil Precision | ±0.15mm |
Max. Hot Foil Speed | 200 times / min |
Max. Flatbed Die Cutting Speed | 400 times / min |
The Power of Hot Foil Plate | 3KW |
Max. Semi Rotary Die Cutting Speed | 60m/min |
Max. Full Rotary Die Cutting Speed | 120m/min |
