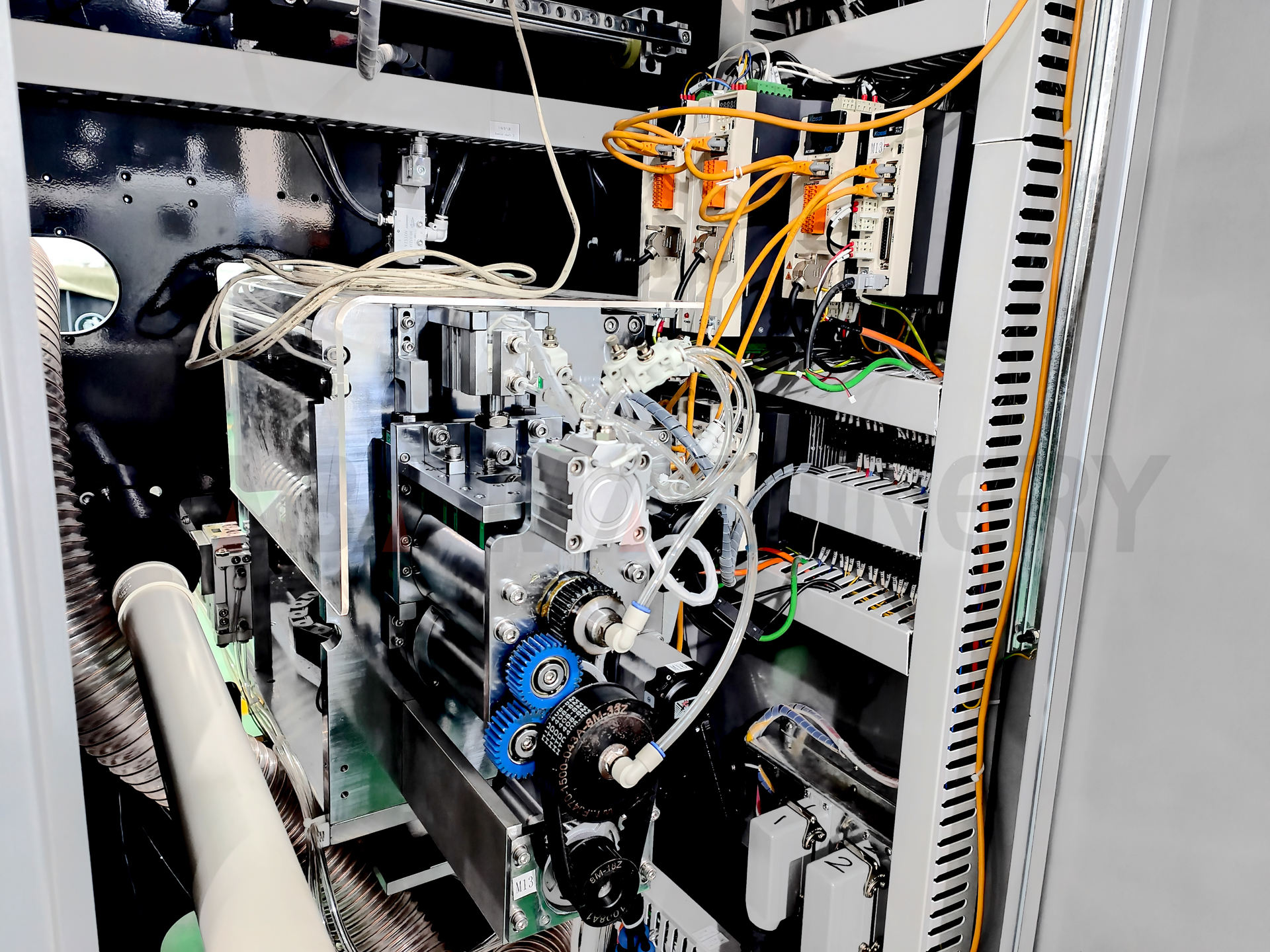

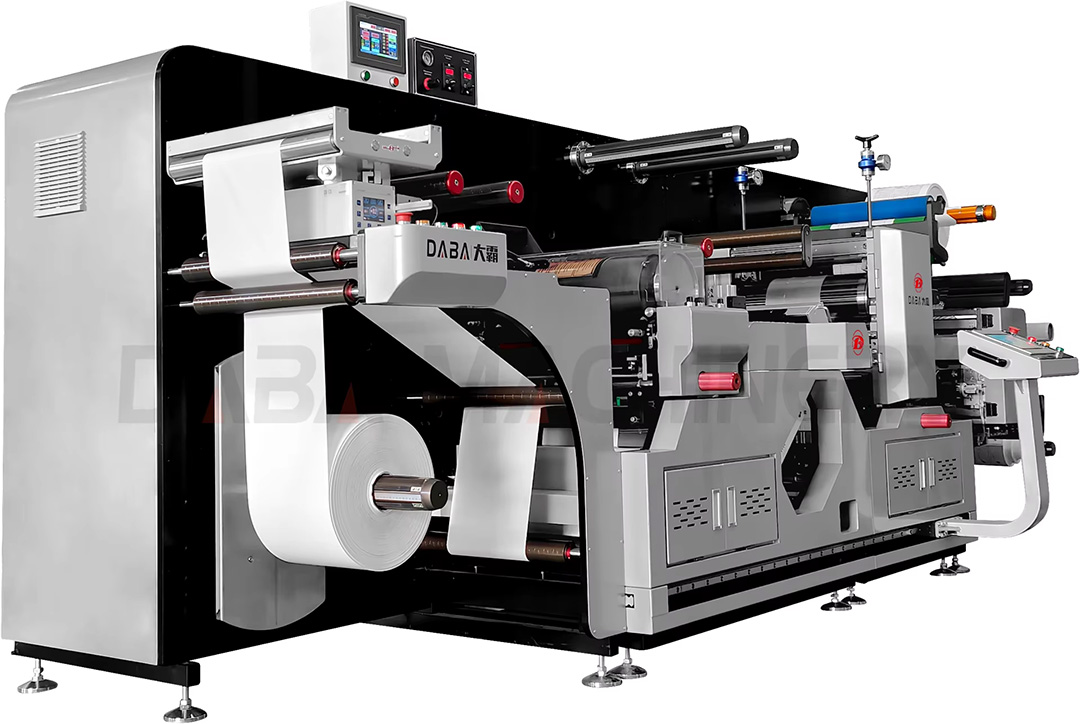

The machine is equipped with a total of 13 servo motors, ensuring stable operation and is a batch-type machine.

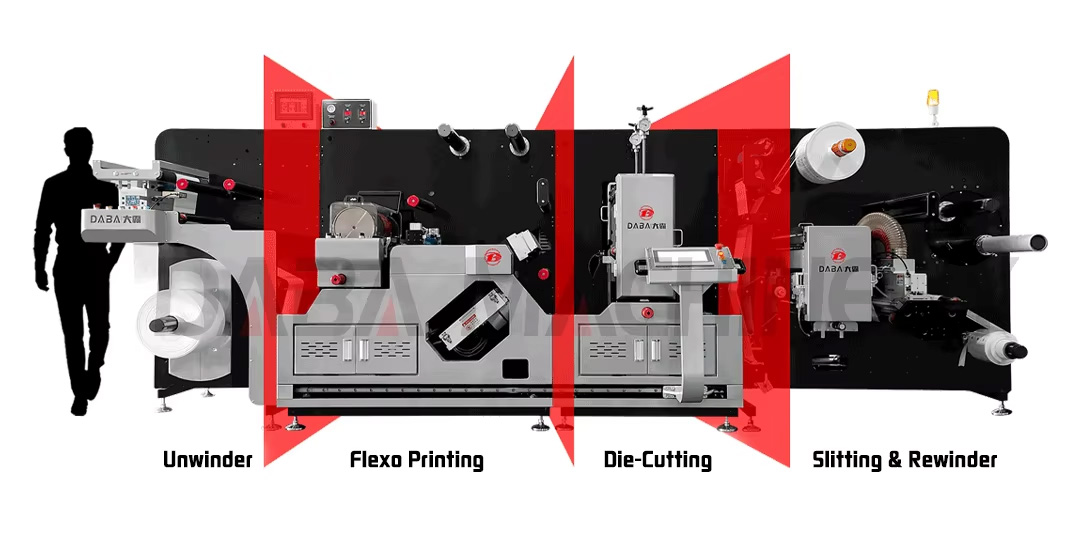

It has a flexographic printing, die-cutting, and slitting unit.

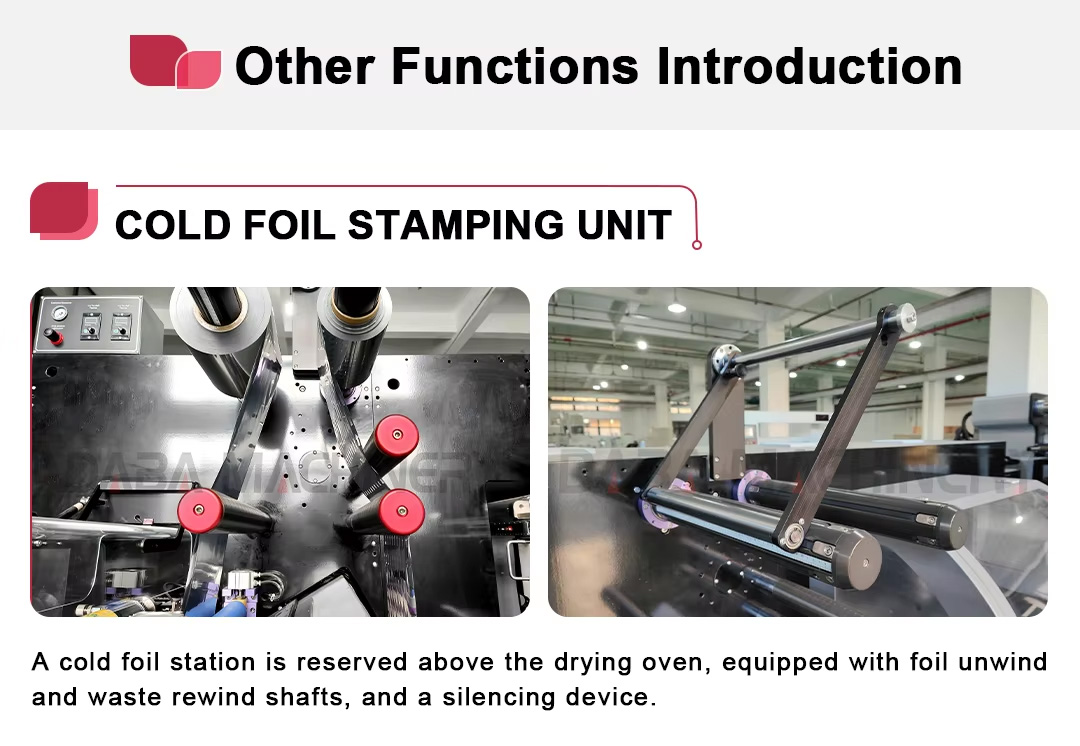

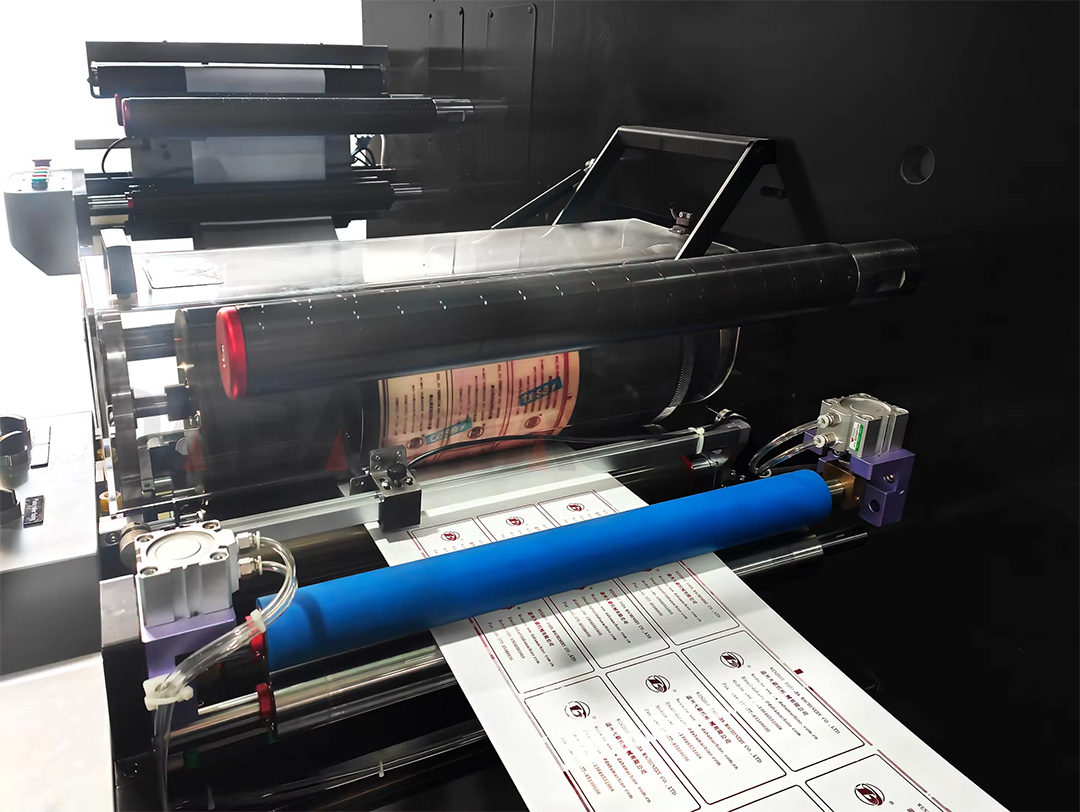

In flexographic printing, it can perform cold foil stamping, vanishing, lamination, and printing, and also accepts multi color printing.

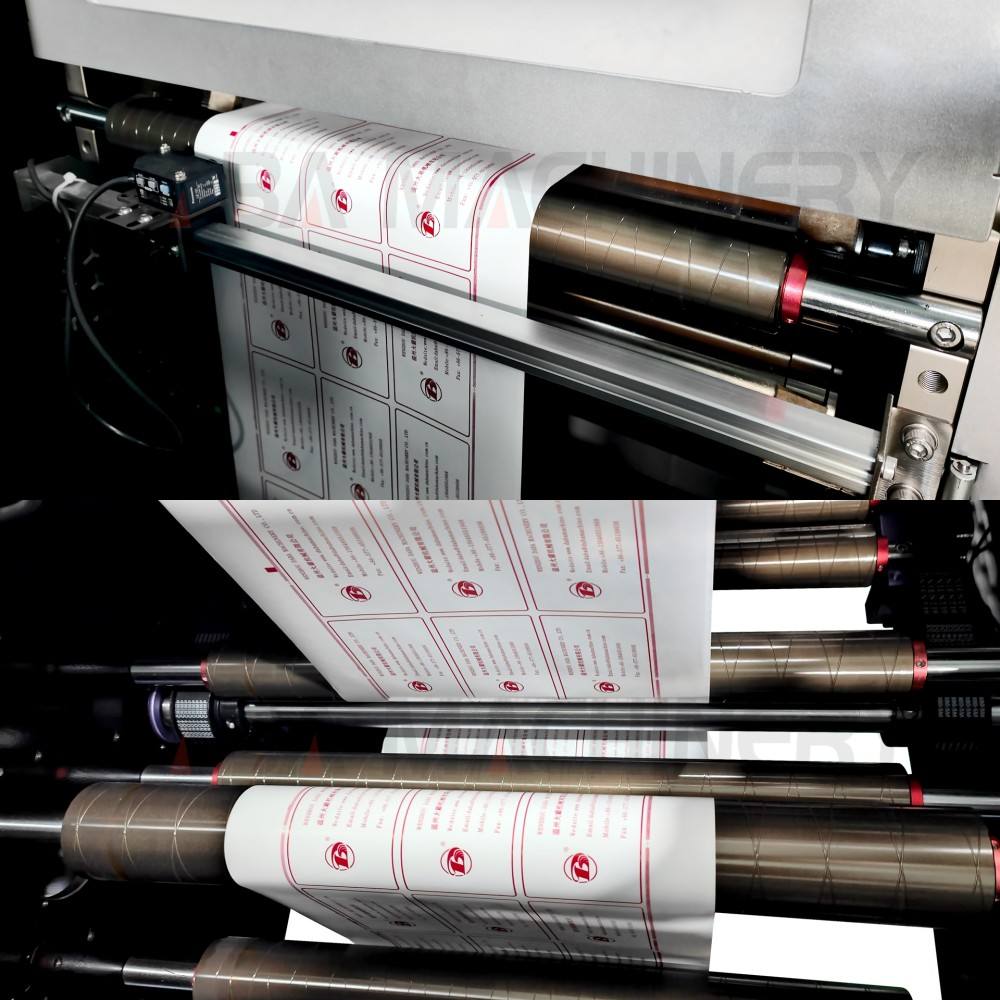

It requires the use of a color tracking sensor for reprinting.
In rotary die-cutting, it can perform kiss-cutting, punching, inner die-cutting, and post-die-cutting, with a tracking sensor.

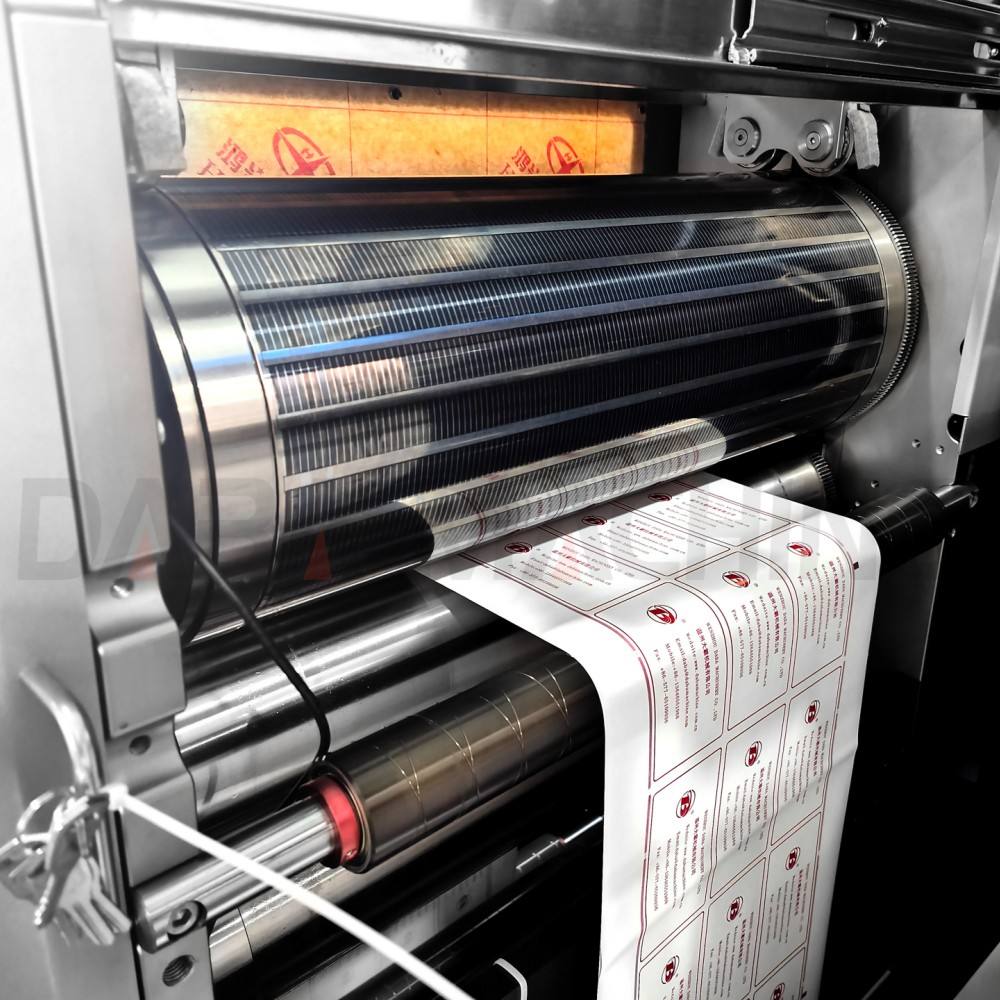

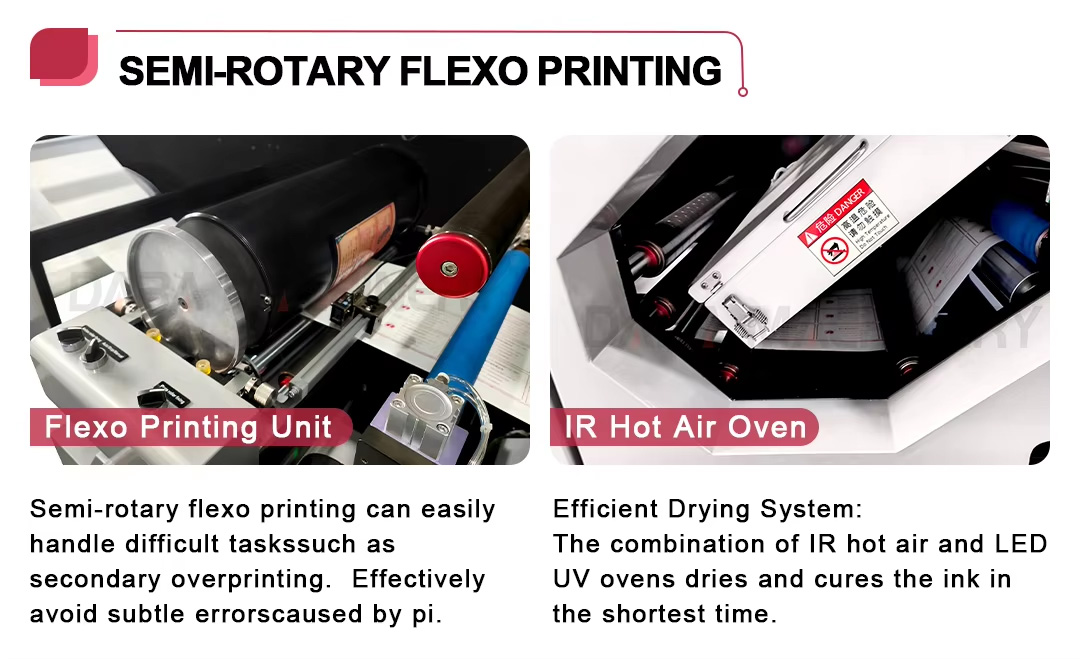

It operates in semi-rotation, with a magnetic roller capable of performing various die-cutting operations.
Max. Web Width | 370mm (14.56") |

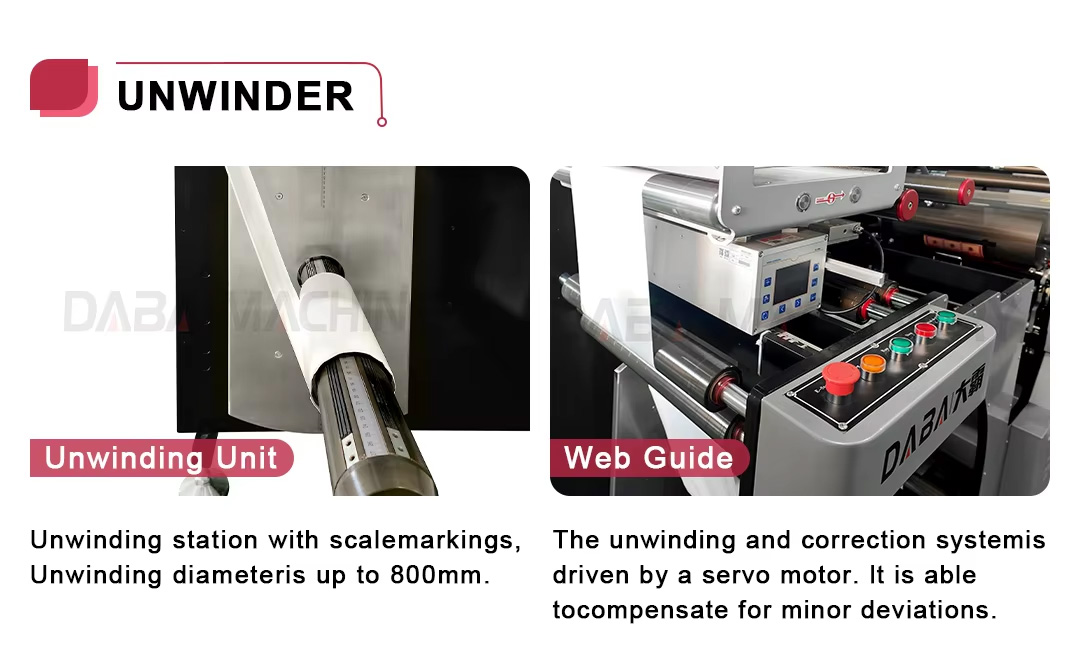

Max. Unwind Diameter | 800mm (31.5") |
Application Material Thickness | 30um ~ 300um |
Max. Die Cutting Width | 350mm (13.77") |
Max. Full Rotary Flexo Printing Speed | 120m/min |
Max. Semi/Rotary Flexo Printing Speed | 60m/min |
Optional Printing Cylinder | 80T-210T |
Standard Printing Cylinder | 176T |
Printing Tracking Method Color | sensor |
Max. Screen Printing Width | 370mm |
Screen Printing Repeat | 400mm |
Re-Printing Precision | ±0.15mm |
Max. Screen Printing Speed | 20m / Min |
Hot Foil Precision | ±0.15mm |
Max. Hot Foil Speed | 200 times / min |
Max. Flatbed Die Cutting Speed | 400 times / min |
The Power of Hot Foil Plate | 3KW |
Max. Semi Rotary Die Cutting Speed | 60m/min |
Max. Full Rotary Die Cutting Speed | 120m/min |
