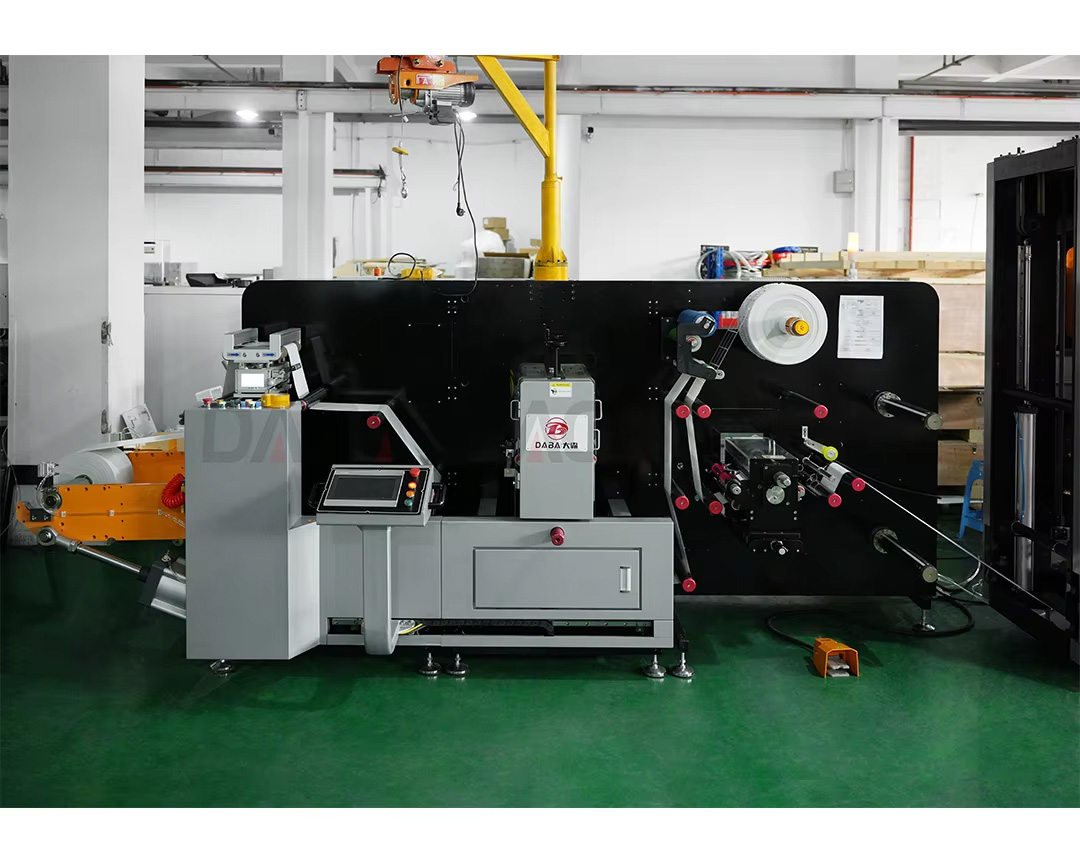

DBMQ-320/370plus Type Rotary Die Cutting Machine is mainly designed for label die cutting, e.g. Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting. Especially, It can process IML(In Molding Label),which is famous as its advanced function, such as: Novel and beautiful apperance, security features, Envirement, Difficult to drop off and damage, High efficiency and so on. IML is widly choosed on packaging containers of Health & Beauty, Food & Beverage, Wine& Spirits.
Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting. Especially, It can process IML(In Molding Label),etc.

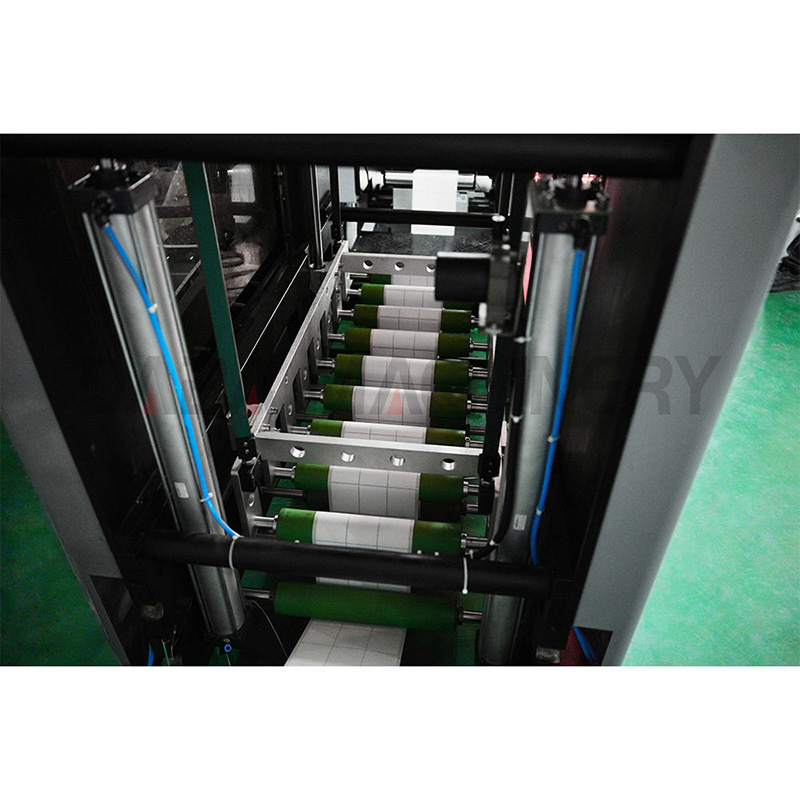

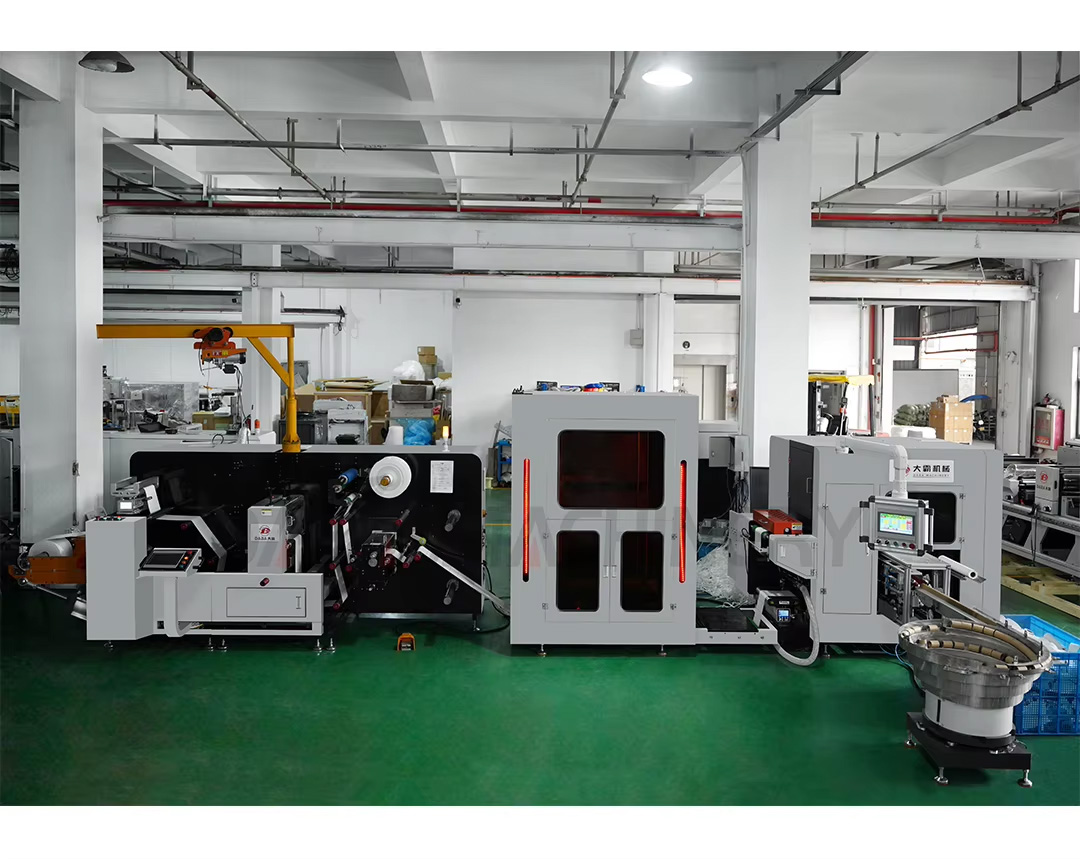

> Machine runs full rotary mode, equipped with conveyor and collection table.
> It's also suitable for labels lamination,die-cutting, waste matrix and rewinding.

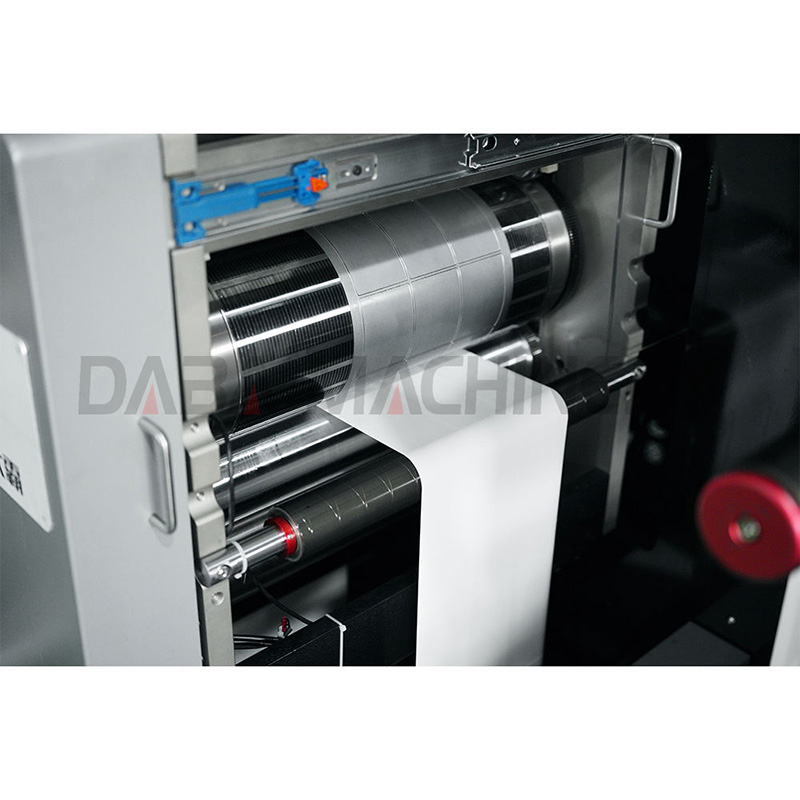

> Machine adopts full servo motors driven, re-register system, solid and durable structure design, leading to clean edge of processed materials and non damage of both sides of labels.
Machine Parameter |
Model | DBFQ-320B | DBMQ-320Y | DBMQ-370B | DBMQ-320/370 Plus |
Slitting Speed | 120m/min | 200m/min | 200m/min | 200m/min |
Die Cutting Speed | 120m/min | 200m/min | 200m/min | 200m/min |
Max Web Width | Up to 320mm | Up to 320mm | 370 mm | 370 mm |
Max Unwinding
Diameter | 500mm | 500mm | 700 mm | 700 mm |
Max Rewinding
Diameter | 480/220mm | 480/220mm | 700 mm | 500 mm |
Die cutting length | 178-470mm
(7" - 18,5") | 178-470mm(7" - 18,5") | 178~470 mm
(7'~18.5') | 178~470 mm
(7'~18.5') |
Overall Diameter | 1800
*1100
*1500mm | 1900*1200
*1500mm | 2100
*1100
*1500 mm | 2100*1100
*1500 mm |
Machine Weight | 1200kgs | 1400kgs | 2000 kg | 1500 kg |
Power Supply | 380V/220V
50Hz | 380V/220V
50HZ | 380V/220V
50HZ | 380V/220V 50HZ |
Accuracy | ± 0.10 mm |

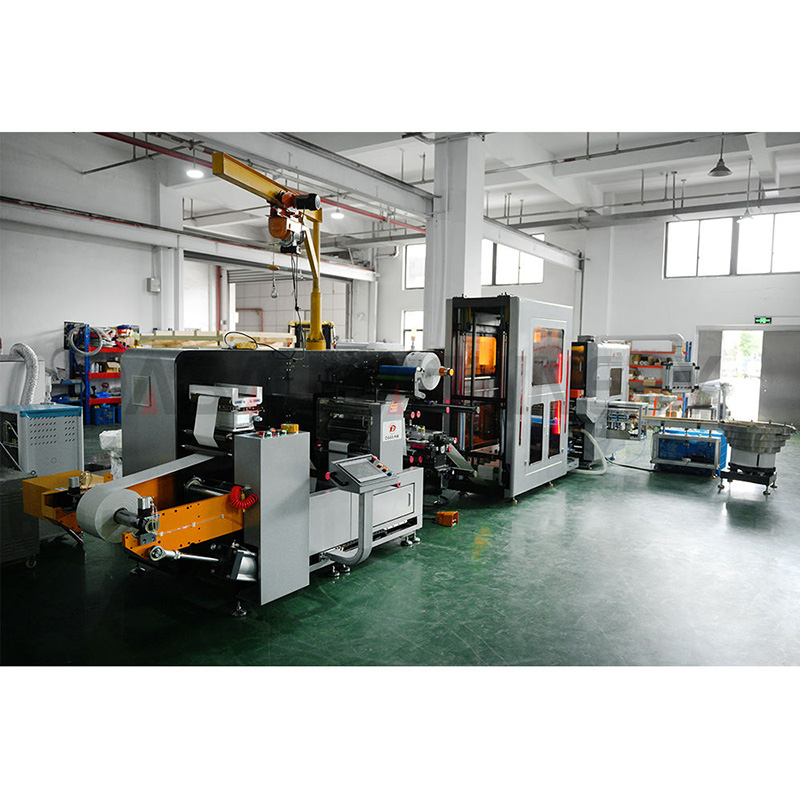

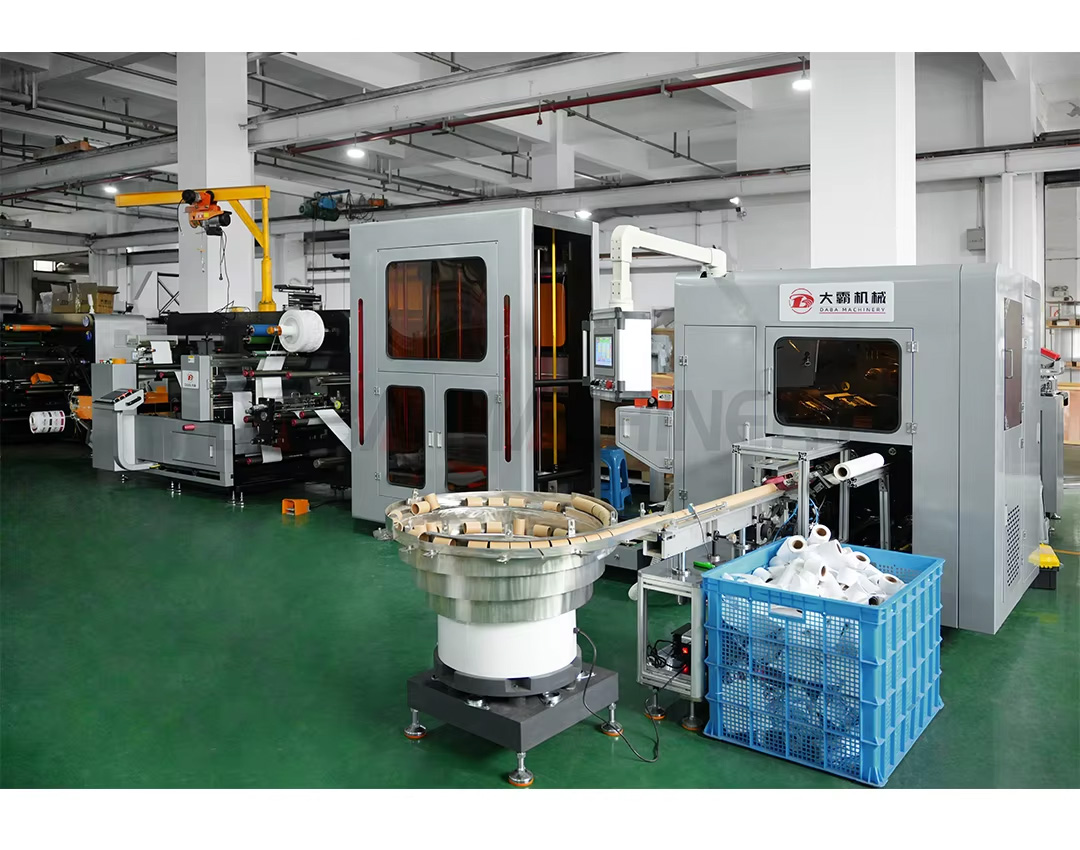

Factory Workshop
