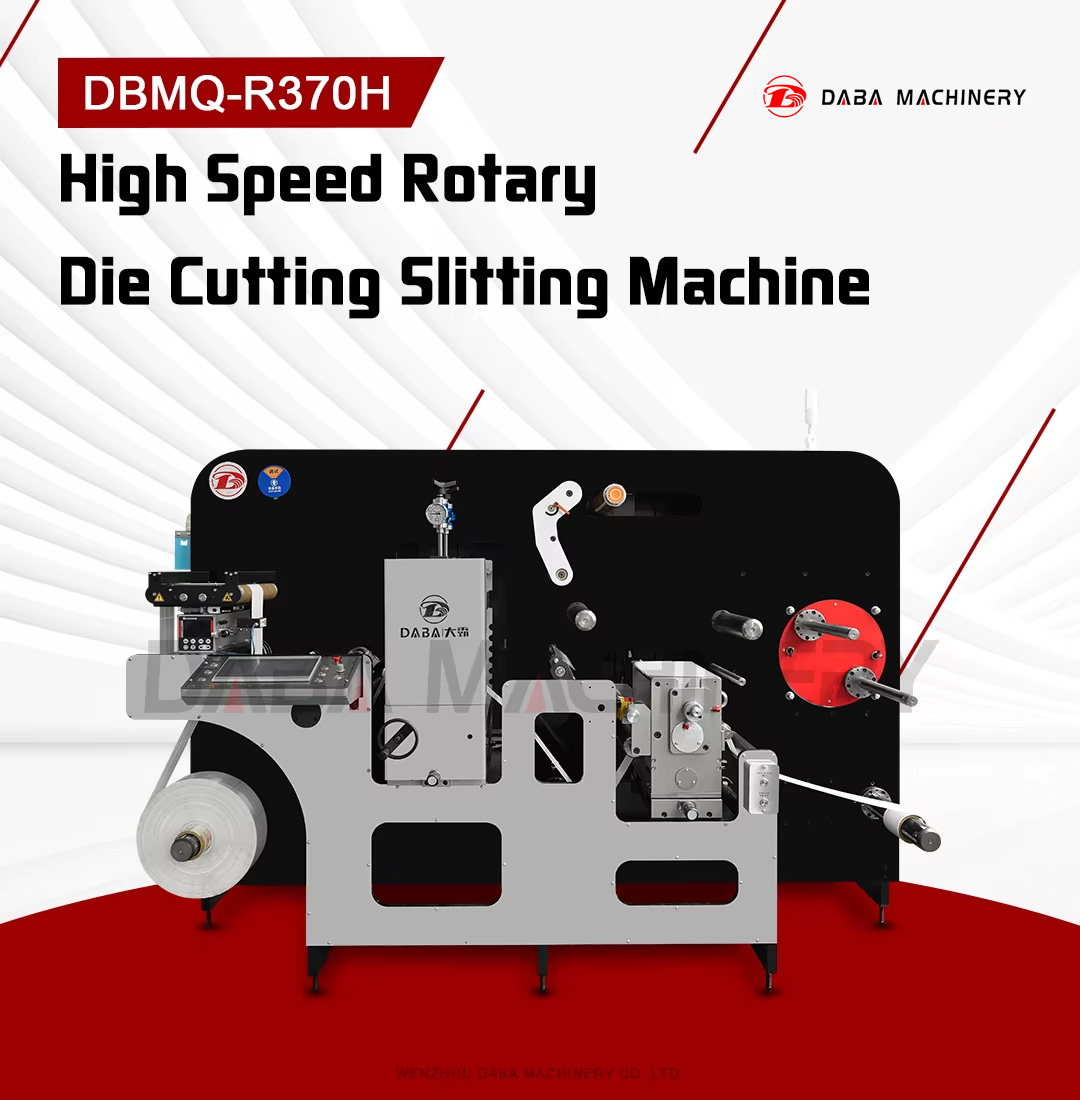

Brand Name : DABA
Model Number : DBMQ-370B
Max. Web Width : 370mm
Max. Die cutting width : 350mm
Max. Slitting width : 20mm
Max. Die cutting speed : 200m/min (water based label material)
Max. Unwinding Dia. : 800mm

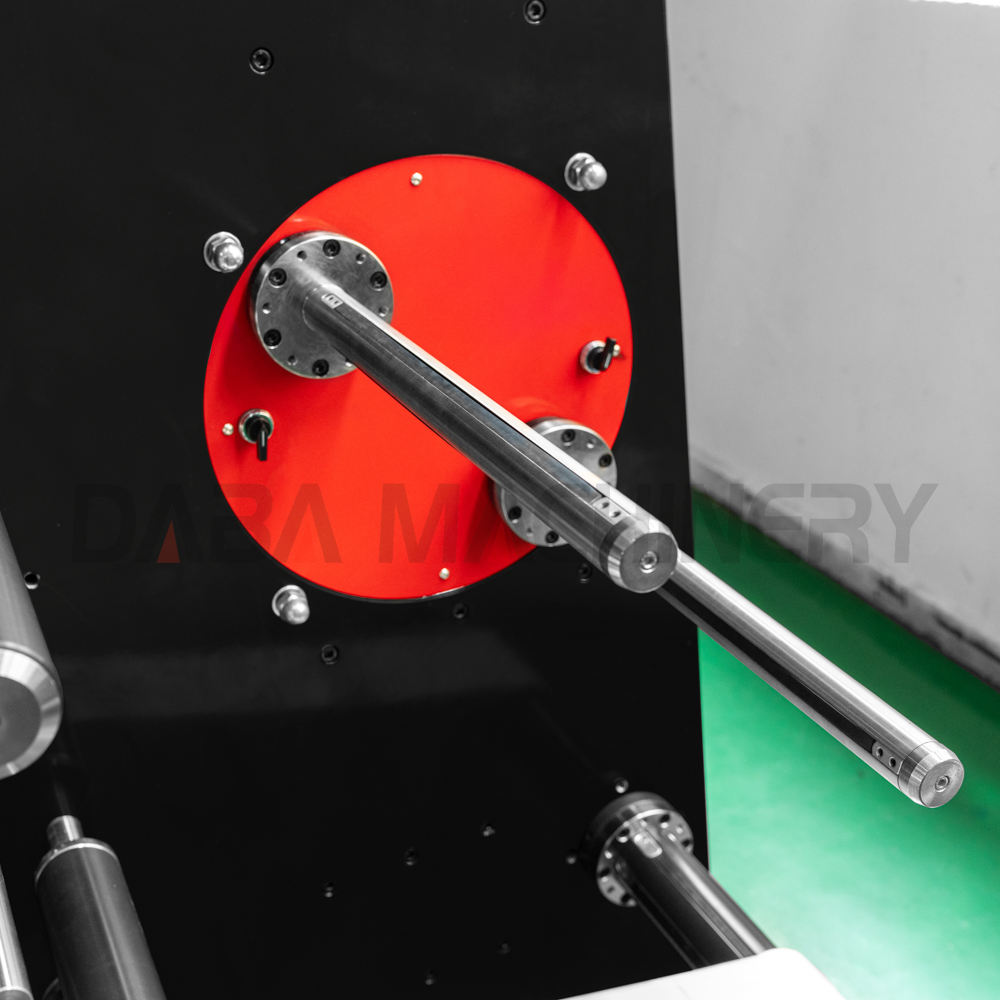

Max. Up turret Rewinding Dia. : 450mm
Max. Downing rewinding Dia. : 800mm
Machine Size (L * W * H) : 2100*1100*1500mm
weight : 1000kg

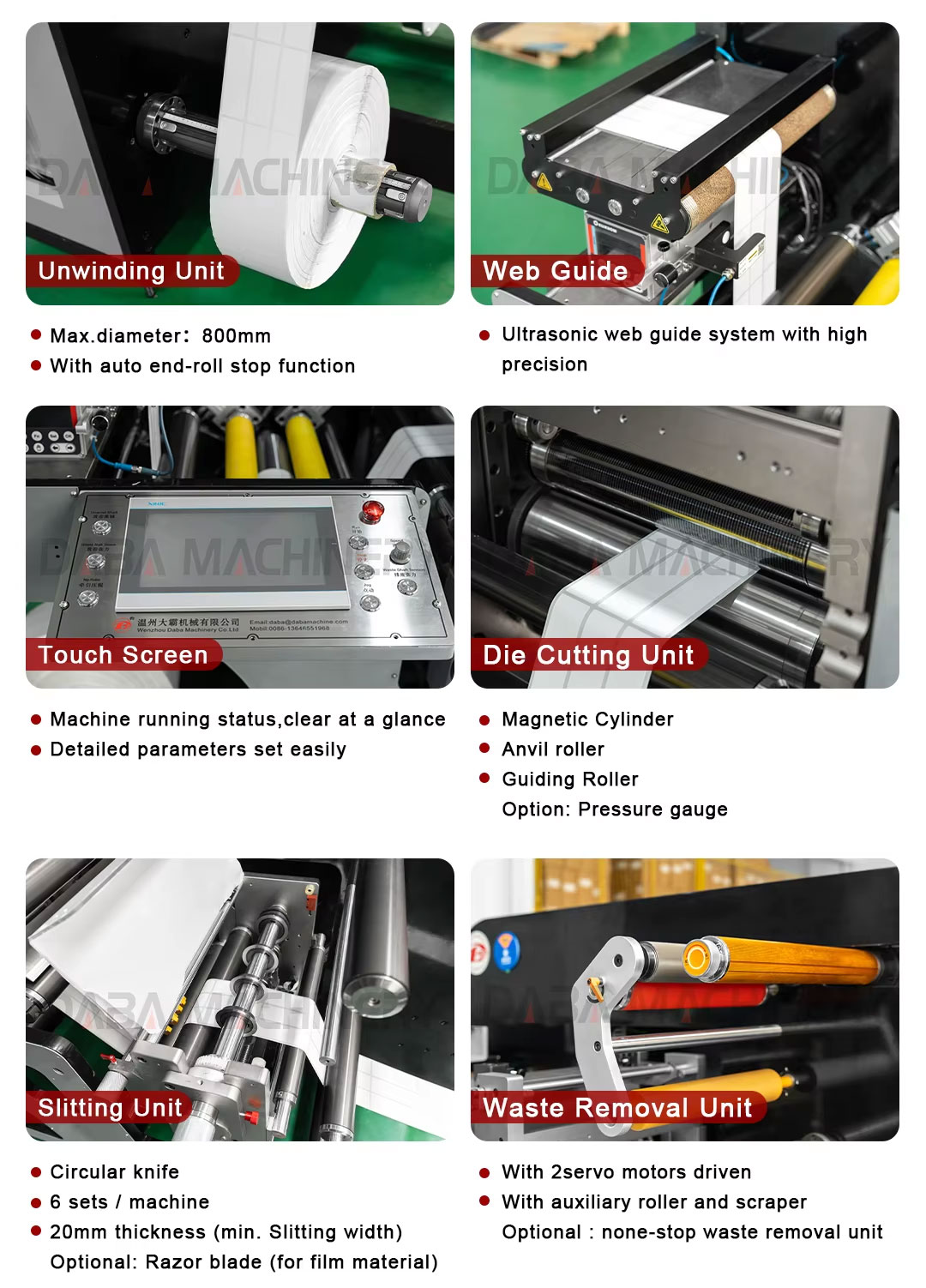

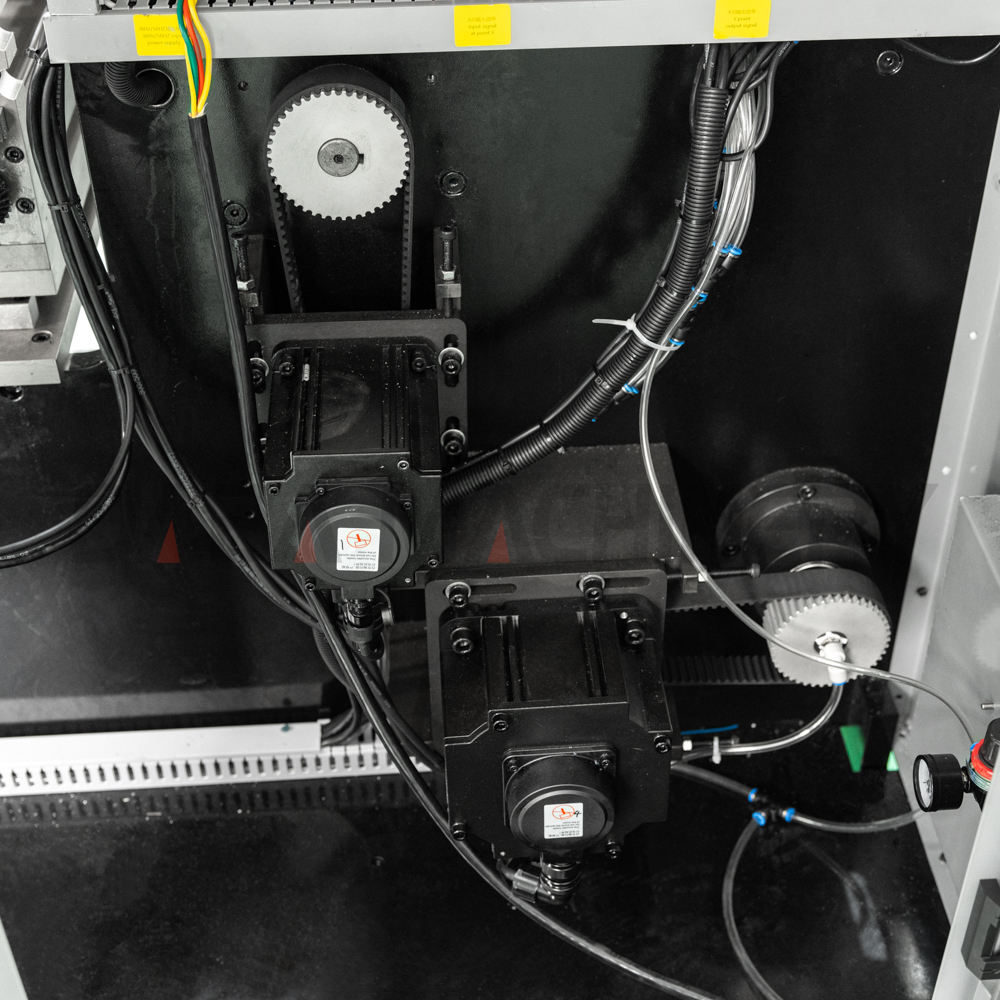

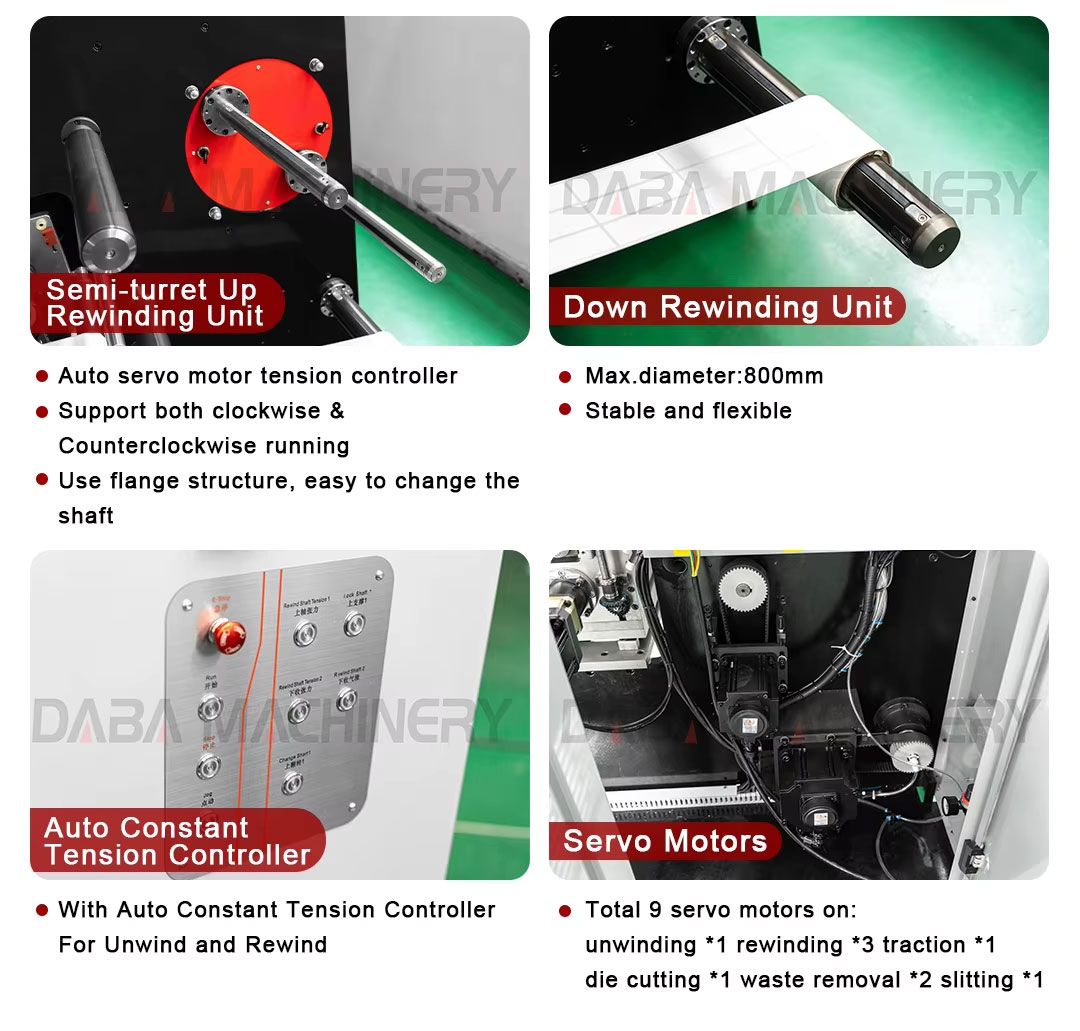

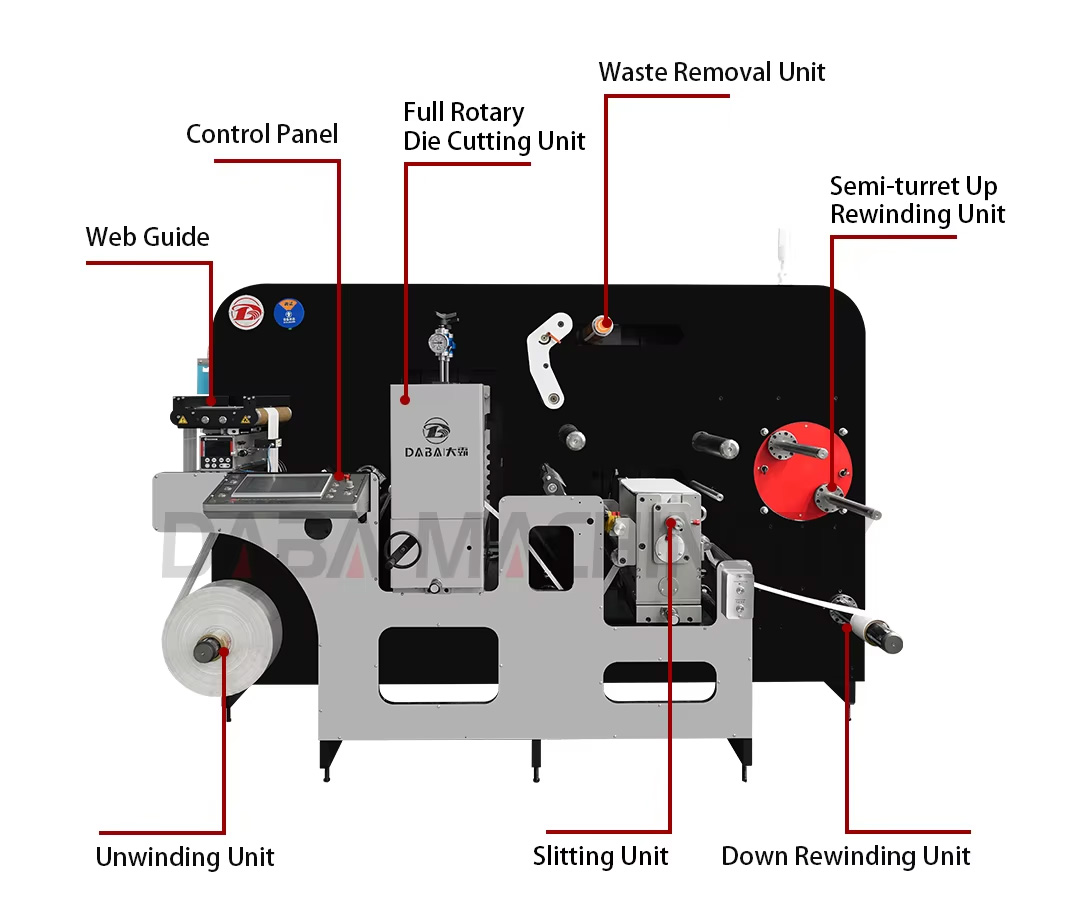

- Every station with servo motors, total 9 servo motors.

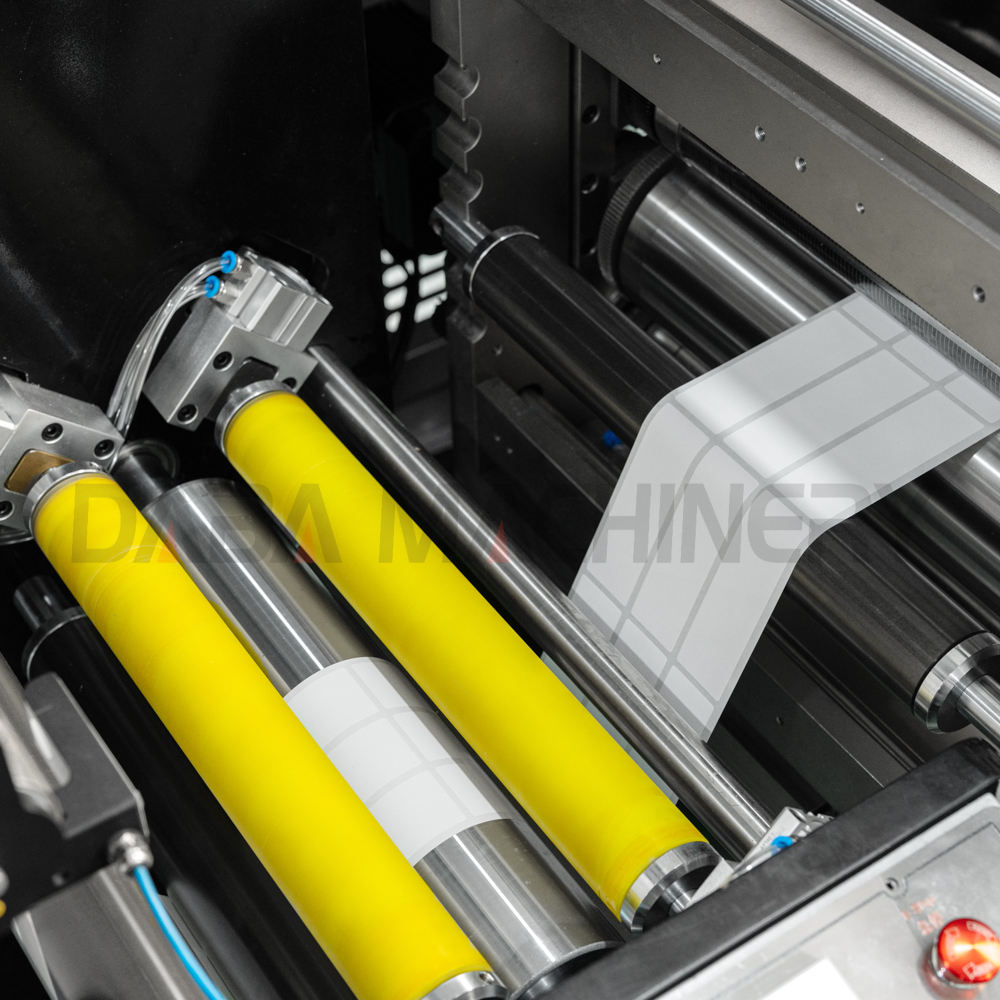

- Full-contact type waste removal unit, more accurate and stable
- Auto magnet powder tension on unwinding& rewinding.
- Ultrasonic web guide.
- The machine keep round cutter and flat cutter two tools, with reliable quality, easy to adjust.
- The slitter has fixed length automatic stop and the length meter automatically functions.

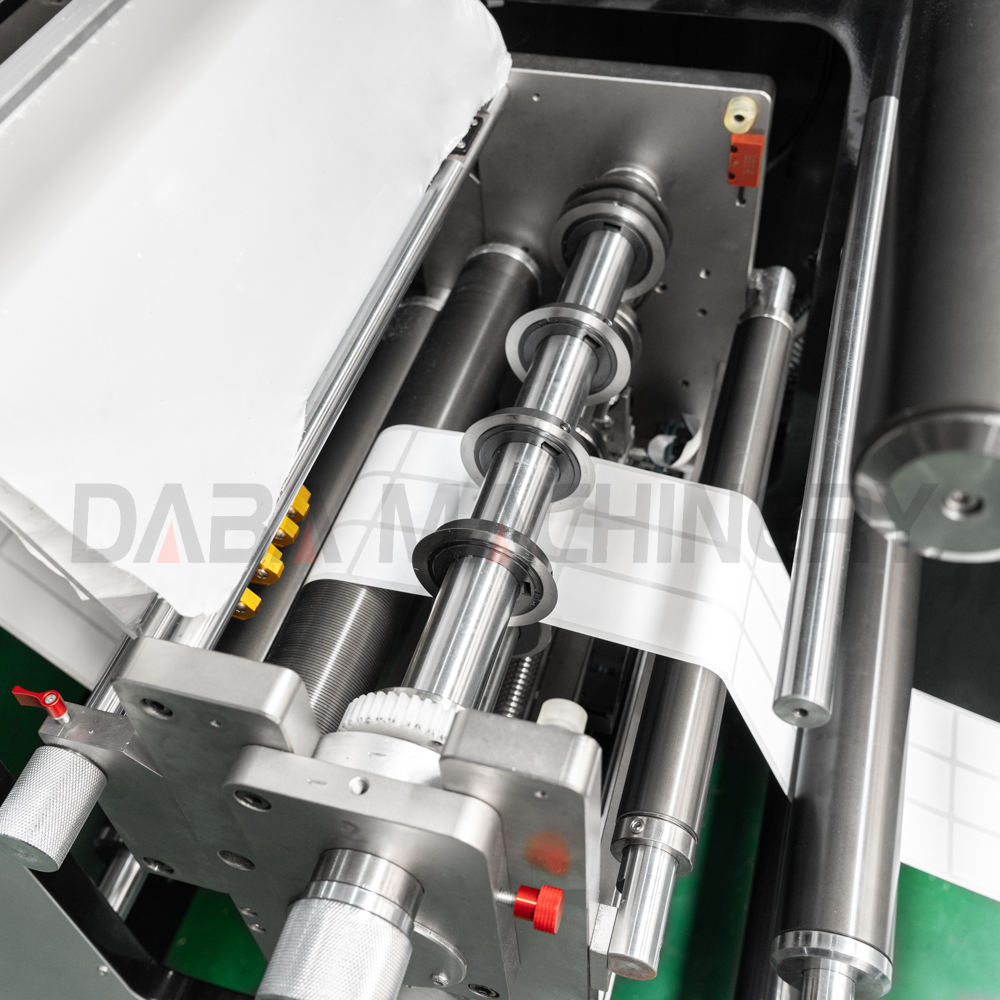

- The Slitter has trimming device, the edge material discharged by the fan.
Model | DBMQ-370B |
Max. Web Width | 370mm |
Max. Die cutting width | 350 mm |
Max. Slitting width | 20mm |
Max. Die cutting speed | 200m/min (water based label material) |
Max. Unwinding Dia. | 800mm |
Max. Up turret Rewinding Dia. | 450mm |
Max. Downing rewinding Dia. | 800mm |
Machine Size (L * W * H) | 2100*1100*1500mm |
