Brand Name : DABA
Model Number : DBMQ-320A
Max.web width(mm) ：320
Max.unwinding diameter(mm) ：600
Independent Unwinding(mm) ： 1000
Unwinding tension control ： Friction plate brake
Die-cutting range(mm) ：300*350
Max. die-cuttingspeed：200m/min
Max.rewinding diameter(mm)：600
Weight (KG) ：1000
Dimension(l*w*h) : 1300*1000*1600mm

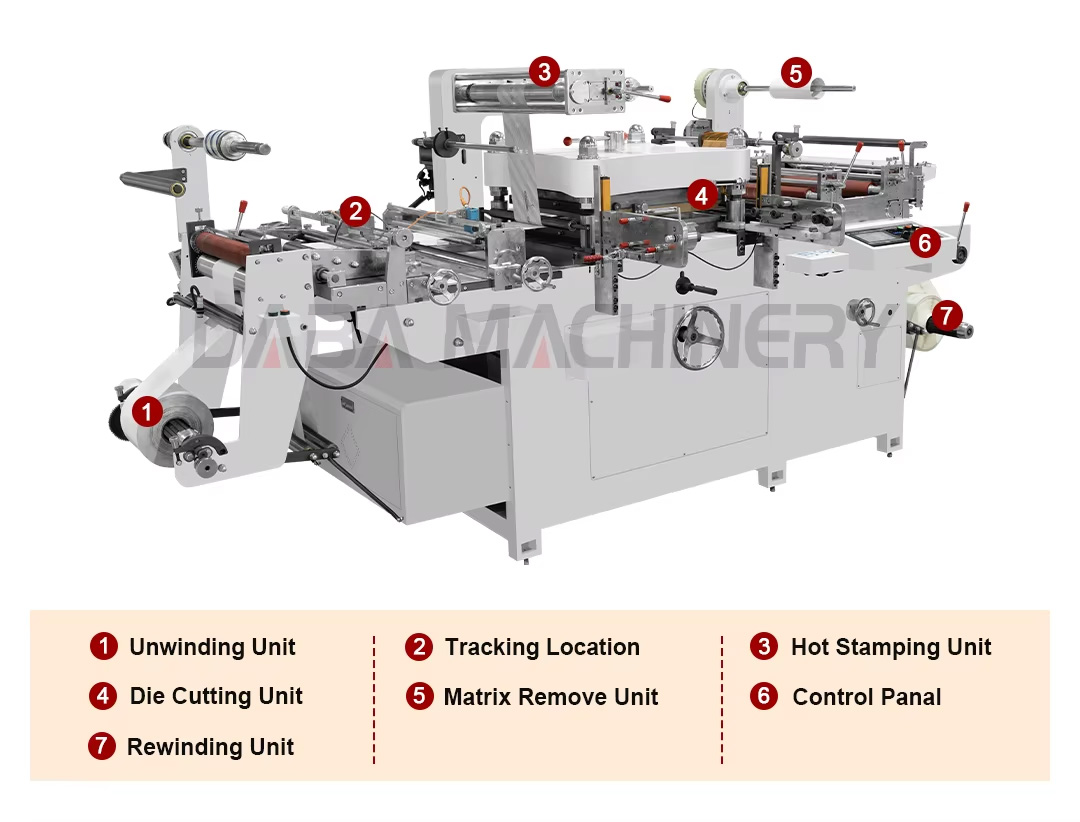

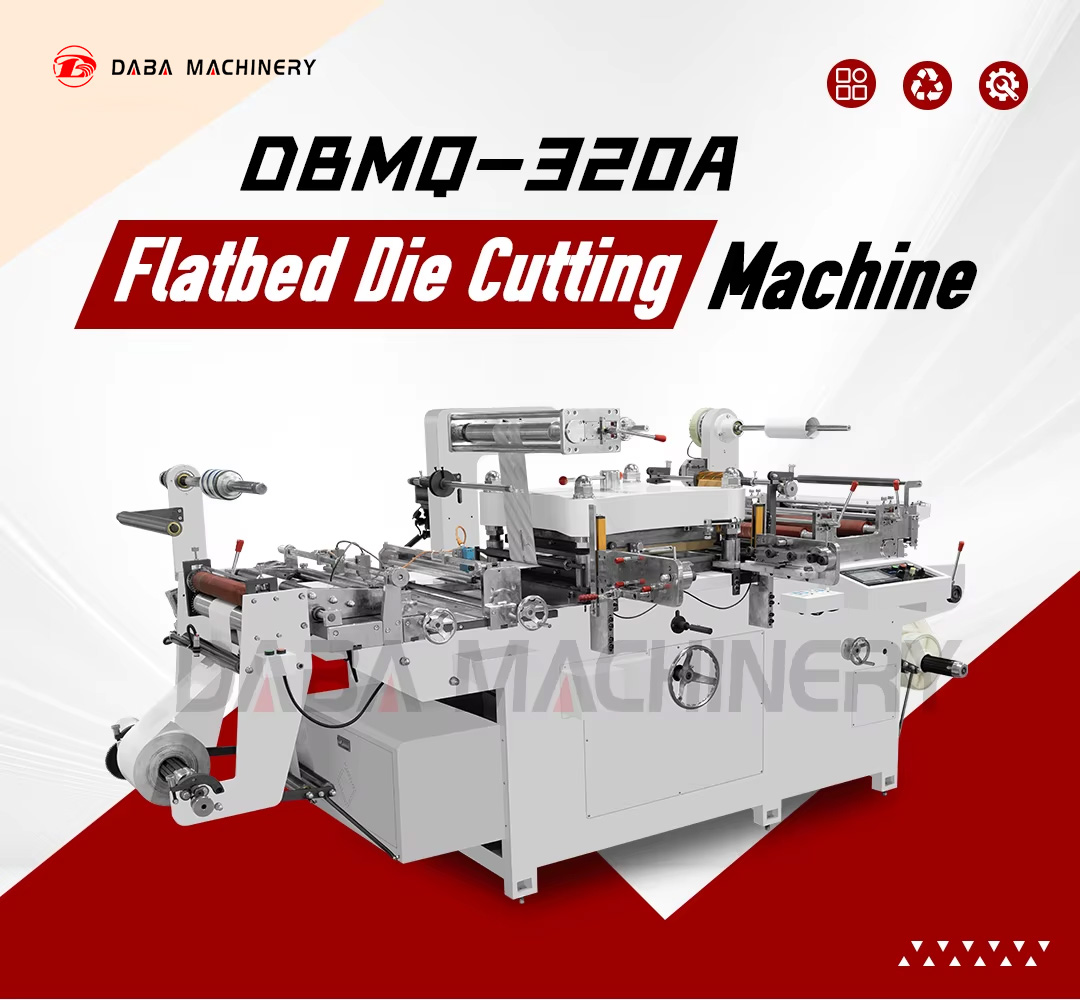

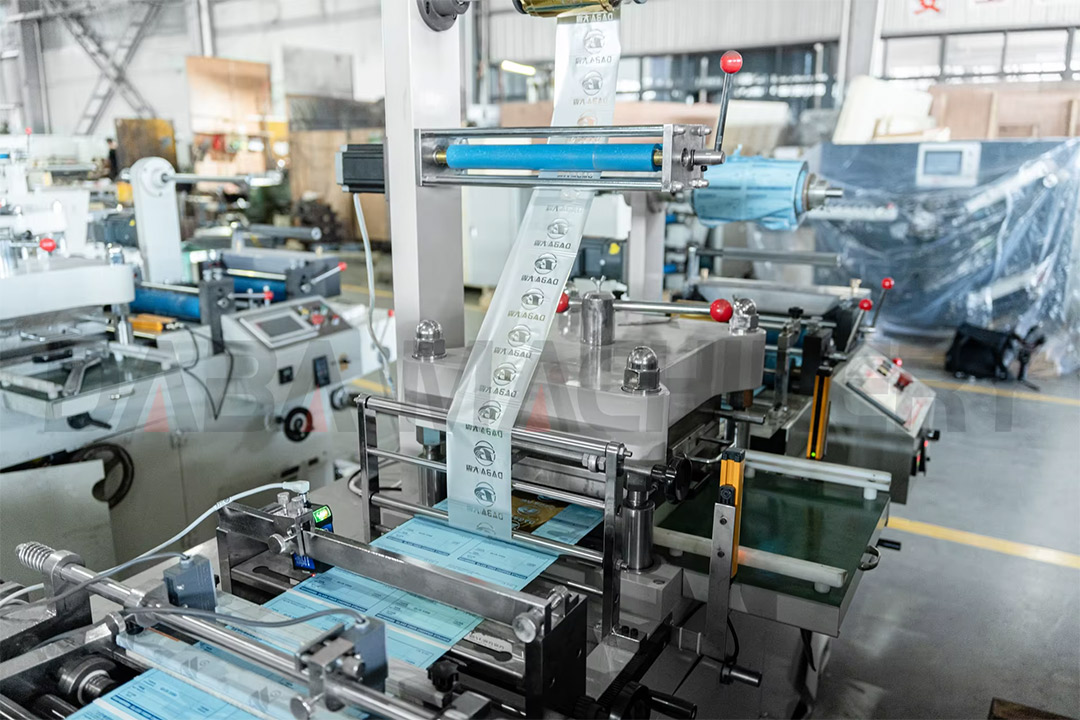

DBMQ-320A auto flatbed die cutter is suitable for die cutting adhesive paper label, dacron film label and laser anti-false label. It cuts label materials into shape required for a designated shape design with high precison.
- The machine is splitted style flat to flat high precision die cutting .
- Pulling materials and cutting is controlled by computer.
- Two sides and a line are tracked by three photoelectric sensors.

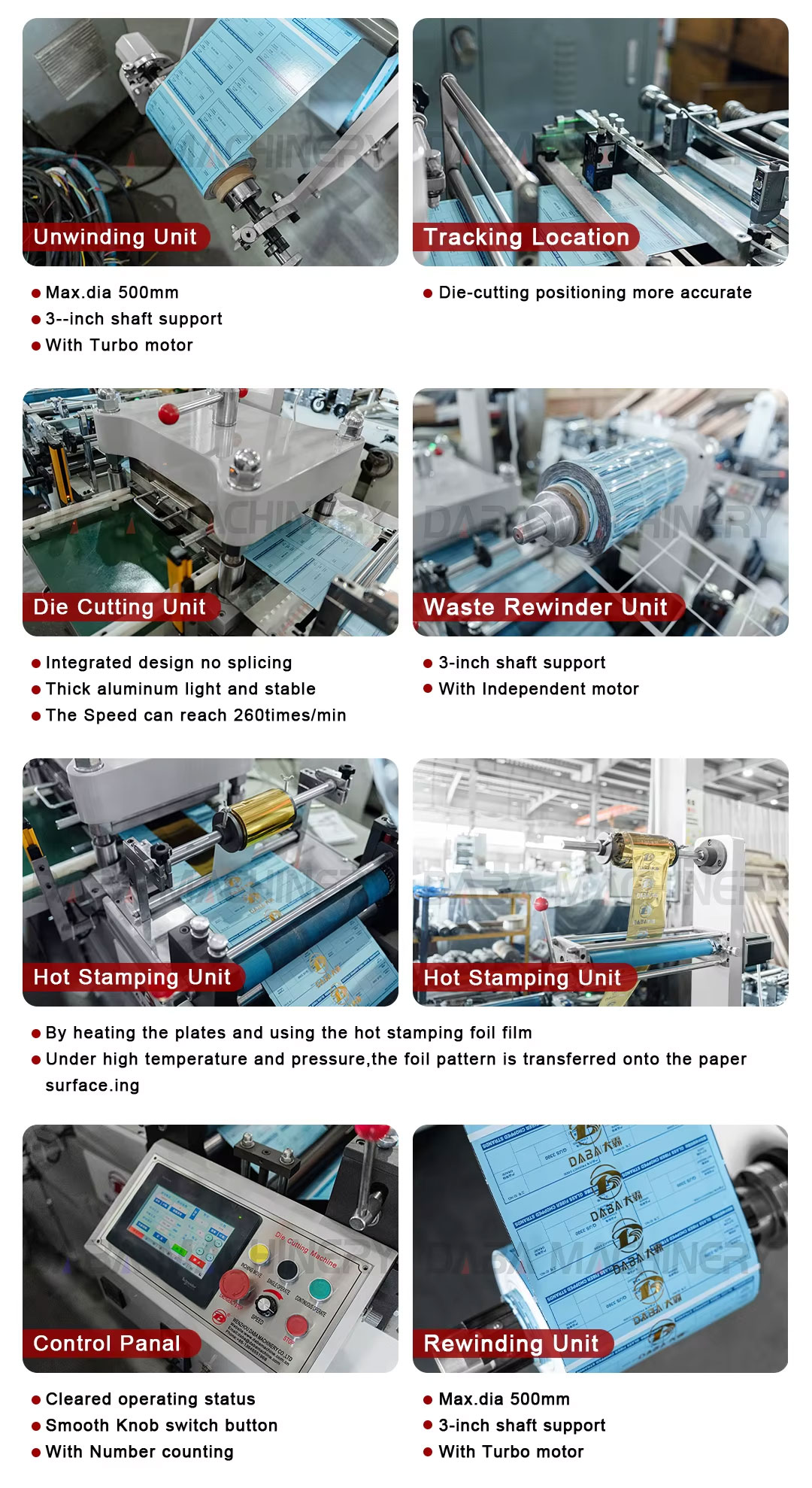

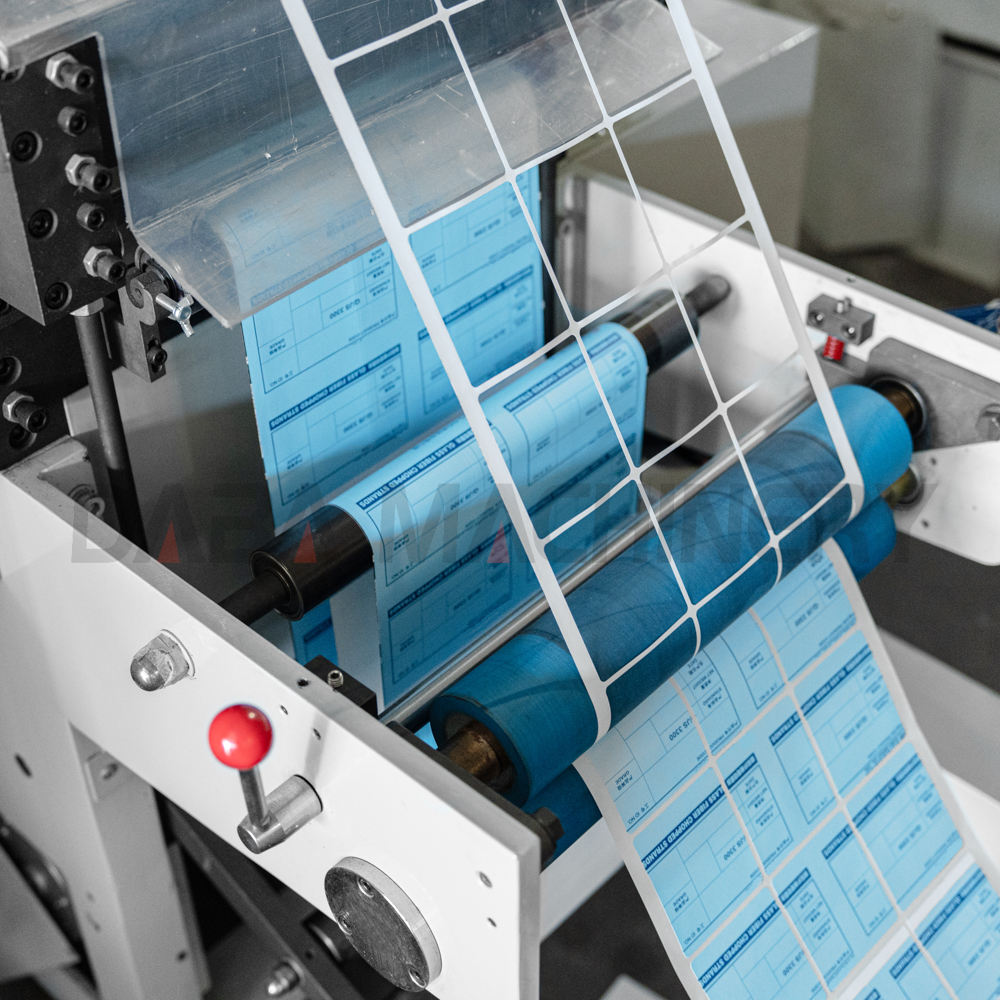

- Tracking、die cutting 、collecting waste、adhesive label can be processed in the same time.
- It’s very suitable for paper adhesive label ,silk screen label and so on.
Optional Functions
